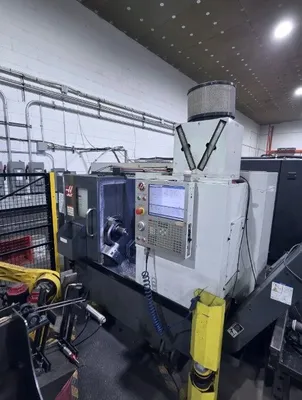

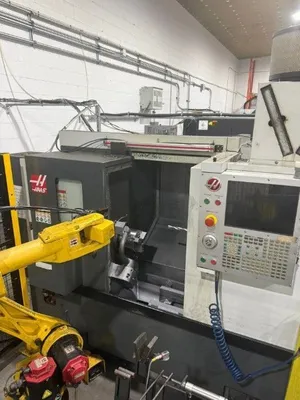

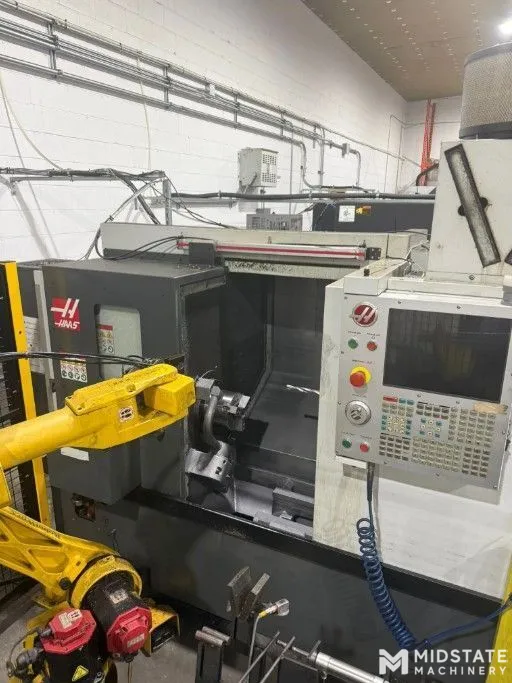

Haas ST-15 CNC Turning Center, New 2018
Have one to sell?
ConditionUsed
1 available
Haas ST-15 CNC Turning Center, New in 2018.
General Specifications:
Chuck Size: 8.3"
Swing: 16.5"
Cutting Diameter:
-BOT Turret: 12"
-BMT45 Turret: 11"
-VDI Turret: 6.80"
Cutting Length: 16"
Bar Capacity: 2.5"
X-Axis Travel: 7.88"
Z-Axis Travel: 16"
Rapid Feedrates: 1,200 IPM
Thrust (X/Z): 3,300 lbf
Spindle Nose: A2-6
Spindle Motor: 20 HP
Spindle Speed: 4,000 RPM
Torque: 150 ft-lbf @ 500 RPM
Spindle Bore: 3.5"
Tailstock Taper: MT3
Hydraulic Quill Travel: 3.8"
Manual Body Positioning: 20"
Turret Positions: 12
Boring Bar Rear Clearance (From Back of Turret): .75"
Machine Dimensions: 126" x 70" x 81"
Machine Weight: 8,000 lbs
Haas CNC Control
Tool Pre-Setter
3-Jaw Chuck
12 Station Turret
Tailstock
Coolant Tank

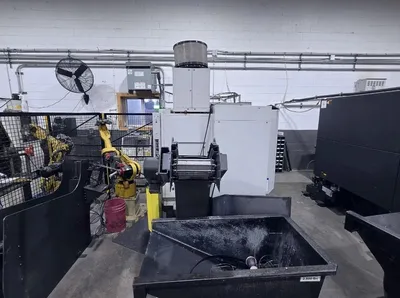

Chip Conveyor
Haas ST-15 CNC Turning Center, New in 2018.
Imperial
| Swing | 27" |
| Machining Length | 16" |
| Chuck Size | 8.3" |
| Bar Capacity | 2.5" |
| Power | 20 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 14" |
| Tailstock | Yes |
| Live Tooling | No |
| Control | CNC (Haas) |
| Dimensions | 126" x 70" x 81" |
| Weight | 8,000 lbs |
General Specifications:
Chuck Size: 8.3"
Swing: 16.5"
Cutting Diameter:
-BOT Turret: 12"
-BMT45 Turret: 11"
-VDI Turret: 6.80"
Cutting Length: 16"
Bar Capacity: 2.5"
X-Axis Travel: 7.88"
Z-Axis Travel: 16"
Rapid Feedrates: 1,200 IPM
Thrust (X/Z): 3,300 lbf
Spindle Nose: A2-6
Spindle Motor: 20 HP
Spindle Speed: 4,000 RPM
Torque: 150 ft-lbf @ 500 RPM
Spindle Bore: 3.5"
Tailstock Taper: MT3
Hydraulic Quill Travel: 3.8"
Manual Body Positioning: 20"
Turret Positions: 12
Boring Bar Rear Clearance (From Back of Turret): .75"
Machine Dimensions: 126" x 70" x 81"
Machine Weight: 8,000 lbs
Haas CNC Control
Tool Pre-Setter
3-Jaw Chuck
12 Station Turret
Tailstock
Coolant Tank
Chip Conveyor
