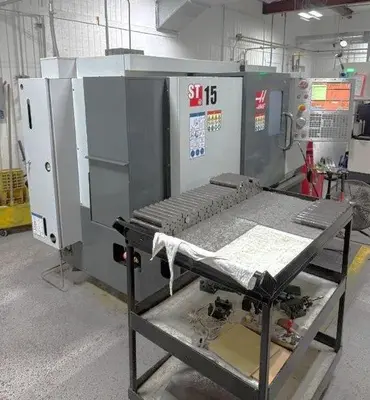

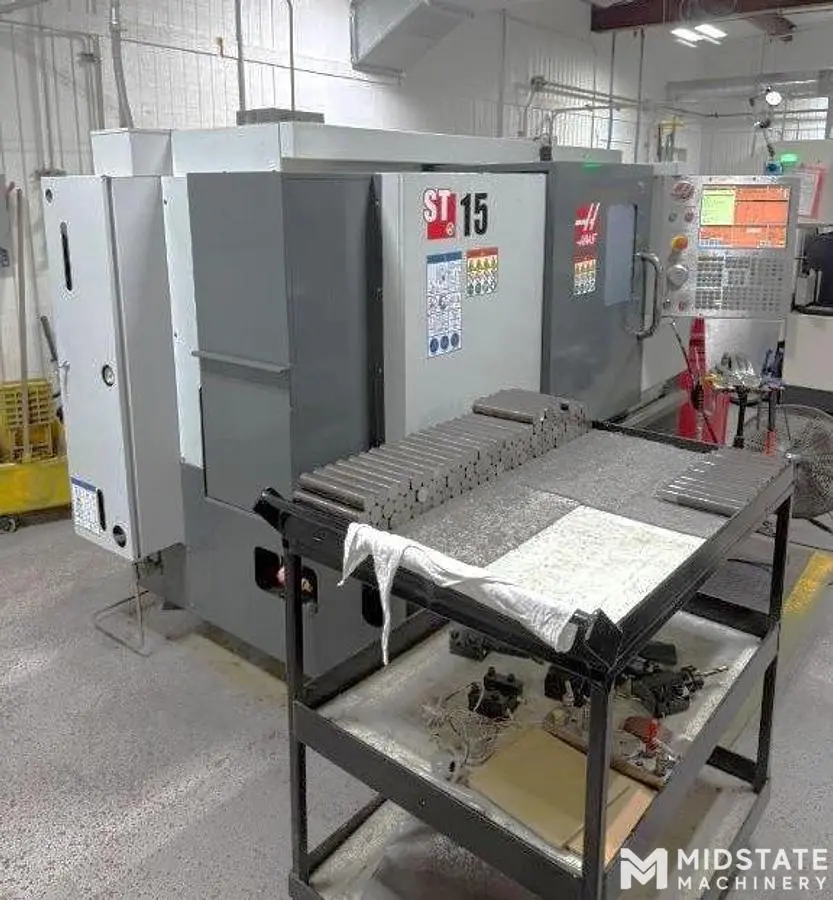

Haas ST-15 CNC Turning Center, New 2017

General Specifications:
Chuck Size: 8.3"
Swing: 16.5"
Cutting Diameter:
-BOT Turret: 12"
-BMT45 Turret: 11"
-VDI Turret: 6.80"
Cutting Length: 16"
Bar Capacity: 2.5"
X-Axis Travel: 7.88"
Z-Axis Travel: 16"
Rapid Feedrates: 1,200 IPM
Thrust (X/Z): 3,300 lbf
Spindle Nose: A2-6
Spindle Motor: 20 HP
Spindle Speed: 4,000 RPM
Torque: 150 ft-lbf @ 500 RPM
Spindle Bore: 3.5"
Tailstock Taper: MT3
Hydraulic Quill Travel: 3.8"
Manual Body Positioning: 20"

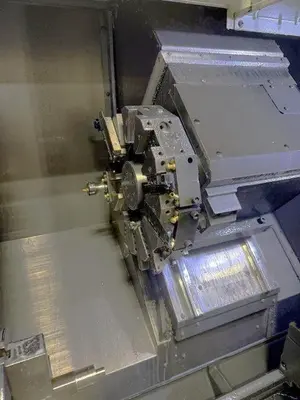

Turret Positions: 12
Boring Bar Rear Clearance (From Back of Turret): .75"

Machine Dimensions: 126" x 70" x 81"
Machine Weight: 8,000 lbs
