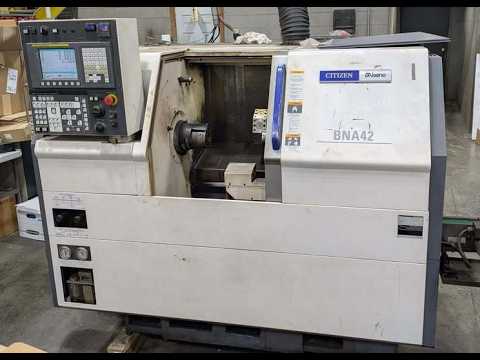

CITIZEN MIYANO BNA-42S2 CNC Swiss Lathe, New in 2018
Have one to sell?
ConditionUsed
1 available
CITIZEN MIYANO BNA-42S2 CNC Swiss Lathe, New in 2018.

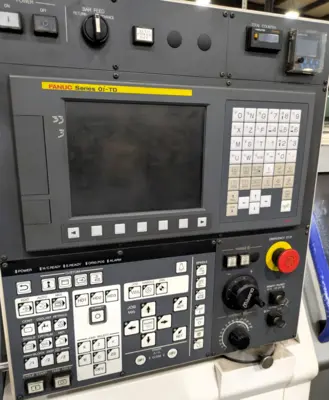

Fanuc 0i-TD Control.
Live Tool.
LNS Chip Conveyor.
Parts Conveyor.
General Specifications:
Chuck Size: 5"
Spindle Speed: 5,000 RPM
Spindle Motor: 5.53 HP
maximum bar diameter SP1: 42mm
maximum bar diameter SP2: 34mm
standard machining length: 100mm
number of spindles: 2
Turret has 8x positions, each with live tooling.
draw tube diameter SP1: 43mm
draw tube diameter SP2: 30mm
rapid feed rate X1 axis: 20m/min
rapid feed rate Z1 axis: 20m/min
rapid feed rate B axis: 20m/min
live tool motor: 2.8/1.0kW (16 Nm)
Live Tool
Fanuc 0iTD CNC
LNS Chip Conveyor
Parts Conveyor
