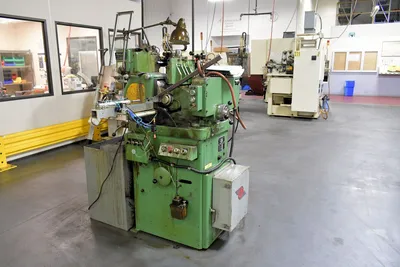

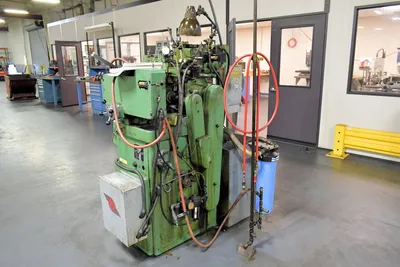

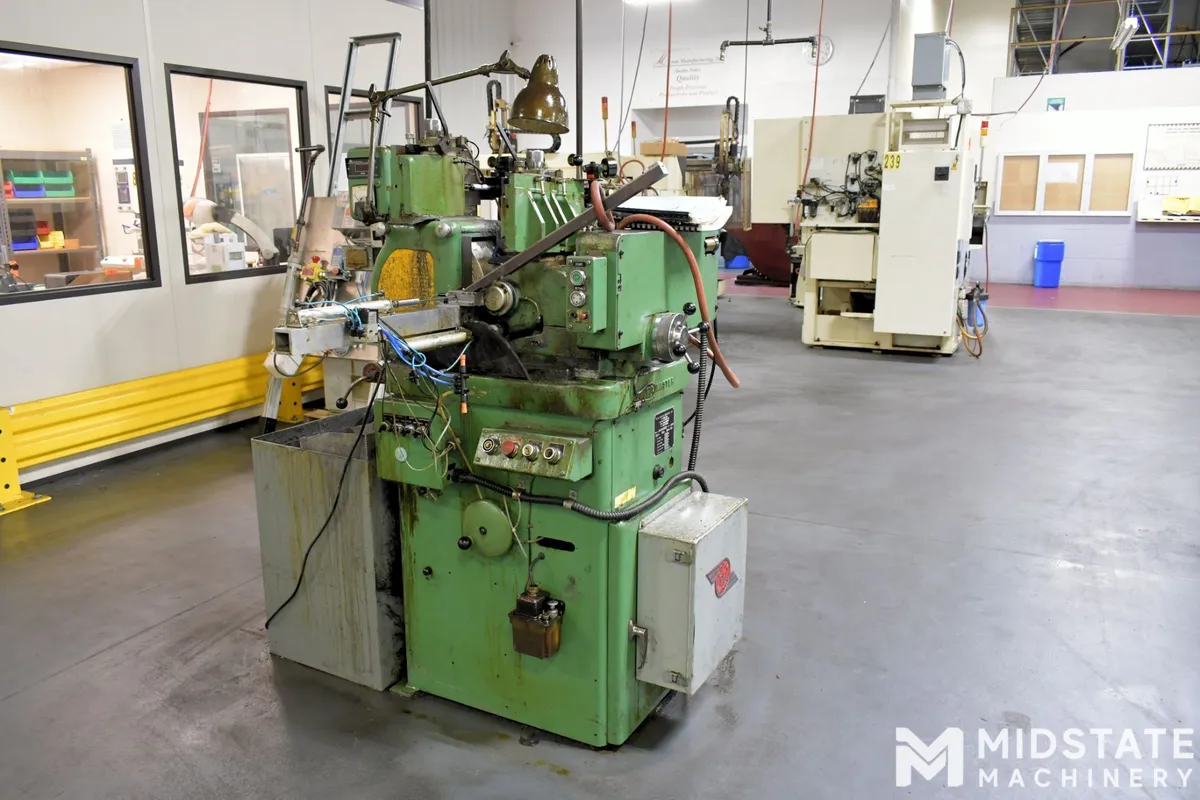

Royal Master TG12x4 Centerless Grinder, New in 1996
Have one to sell?
ConditionUsed
1 available
Royal Master TG12x4 Centerless Grinder, New in 1996
with Automatic Cycle Option
General Specifications:
Capacity:
Infeed and Thrufeed: 0.004" - 1.5" Diameter
Length: 12' on 0.5" Diameter
Wheels:
Max Grinding Wheel: 12" Diameter x 4.5" Wide
Min Grinding Wheel: 10" Diameter x 1/4" Wide
Max Regulating Wheel: 6" Diameter x 4.5" Wide
Min Regulating Wheel: 1/4" Wide w/ Spool
Grinding Wheel Speed: 2,040 RPM
Regulating Wheel Speed: Inf. Variable 25 - 480 RPM
Regulating Wheelhead:
Angle of Tilt for Thrufeed Grinding: 6 Degrees
Swivel for Taper Grinding: 5 Degrees
Motor Power: 7.5 HP
Electrics: 3/60/208-230-460 Volt Electrics
-Presently Wired for 3/60/460 Volts - 14 Full Load Amps
Machine Dimensions: 24" x 48"
Machine Weight: 2,800 lbs
Automatic Cycle Option - Automatic Infeed
Precision Regulating Wheel Spindle
Air-Sensing High Accuracy Dresser for the Regulating Wheel
Air-Sensing High Accuracy Dresser for the Grinding Wheel
Precision Regulating Wheel Housing, with Auto Lubrication

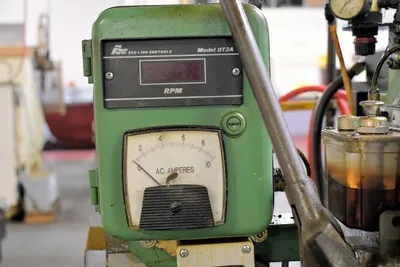

Digital RPM Indicator for the Regulating Wheel Speed
Infeed Work Rest
Dial Indicator for Regulating Wheel Movement
Coolant System

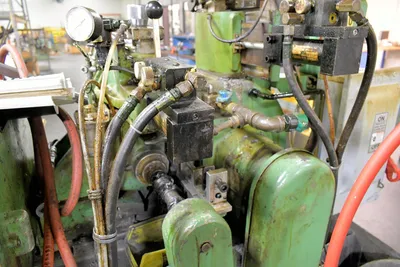

Self Contained Hydraulic System
