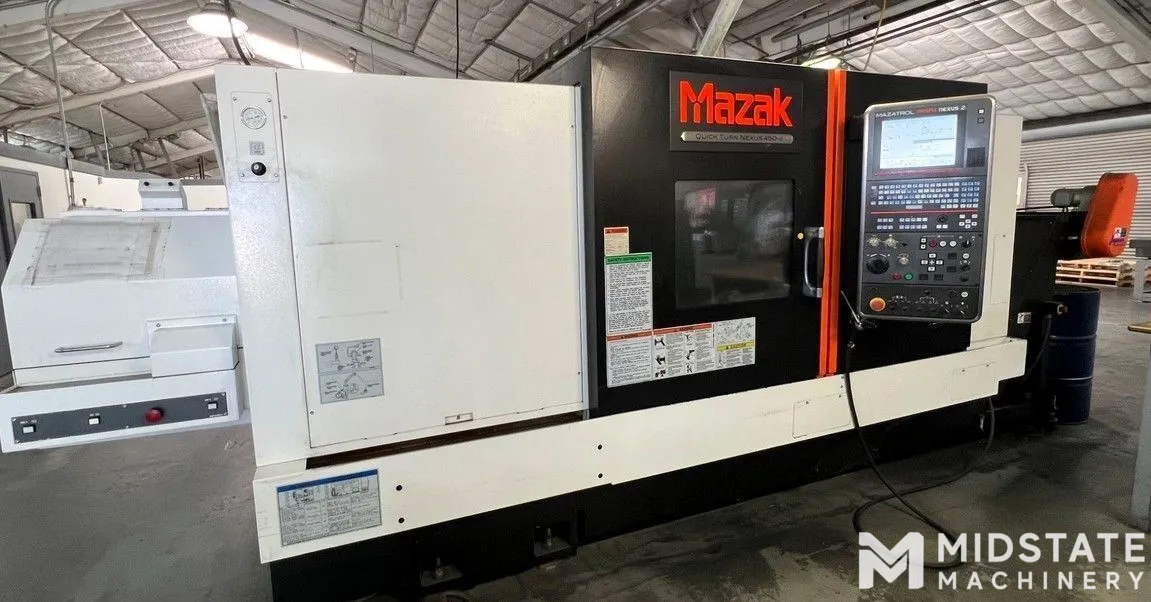

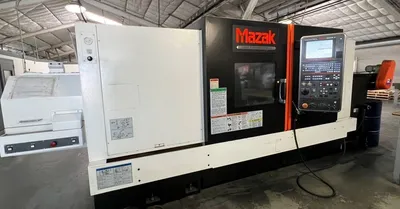

MAZAK NEXUS QUICK TURN 450-II CNC Turning Center, New in 2016
Have one to sell?
ConditionUsed
1 available
$145,000.00 USD
MAZAK NEXUS QUICK TURN 450-II CNC Turning Center, New in 2016.
General Specifications:
Chuck size: 18″
Bar capacity: 7.3″
Maximum turning diameter: 22.83″
Maximum turning length: 38.54″
Machine travels (x z): 12.2″ x 42.12″
Maximum spindle speed: 2,000 RPM
Spindle nose: A2-15
Spindle motor: 50HP
Turret configuration: 12 Tools Bidirectional
Machine dimensions: 159″ x 90″
Machine weight: 20,420 lbs
Electrical requirements: 220V/3Phz/60Hz/27kVA

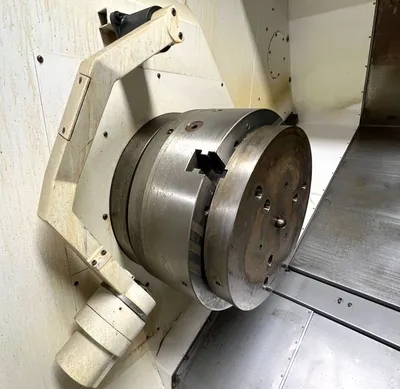

18″ 3-Jaw Hydraulic Thru-Hole Chuck

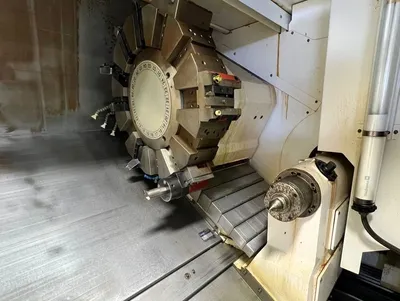

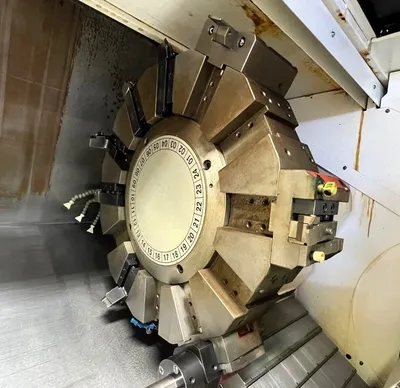

12D/24 Position Drum Turret
Programmable Tailstock
Tailstock Thrust Select (9-Level)
Large Spindle Bore
Tool Eye
High-Power Coolant (520W) (59 PSI, 16 GPM)
Work Light
Intelligent Safety Shield

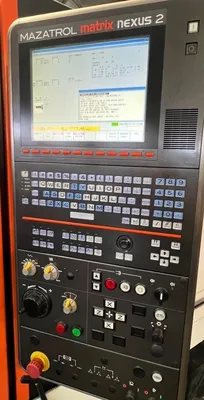

Mazatrol Matrix II Nexus CNC Control
** Control Features
Windows XP Operating System
12.1″ Color LCD
USB I/F (2-PORT)
Lan Port
MT Connect Preparation
User Macros
EIA/ISO Input Function
Background Tool Path Check
Thread Cutting Function
Polar Coordinates Input (G122)
Velocity and Feedrate Control
Mazak Voice Adviser
Virtual Machining
OPTIONAL EQUIPMENT INCLUDED:
Re-Threading
Thread Start Point Compensation

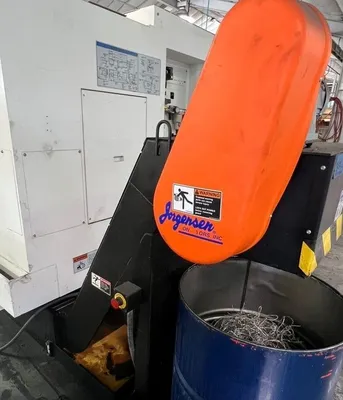

Jorgensen Chip Conveyor – Side 1000U
