FEMCO HL-55/2000 CNC Turning Center, New in 2009
Have one to sell?
ConditionUsed
1 available

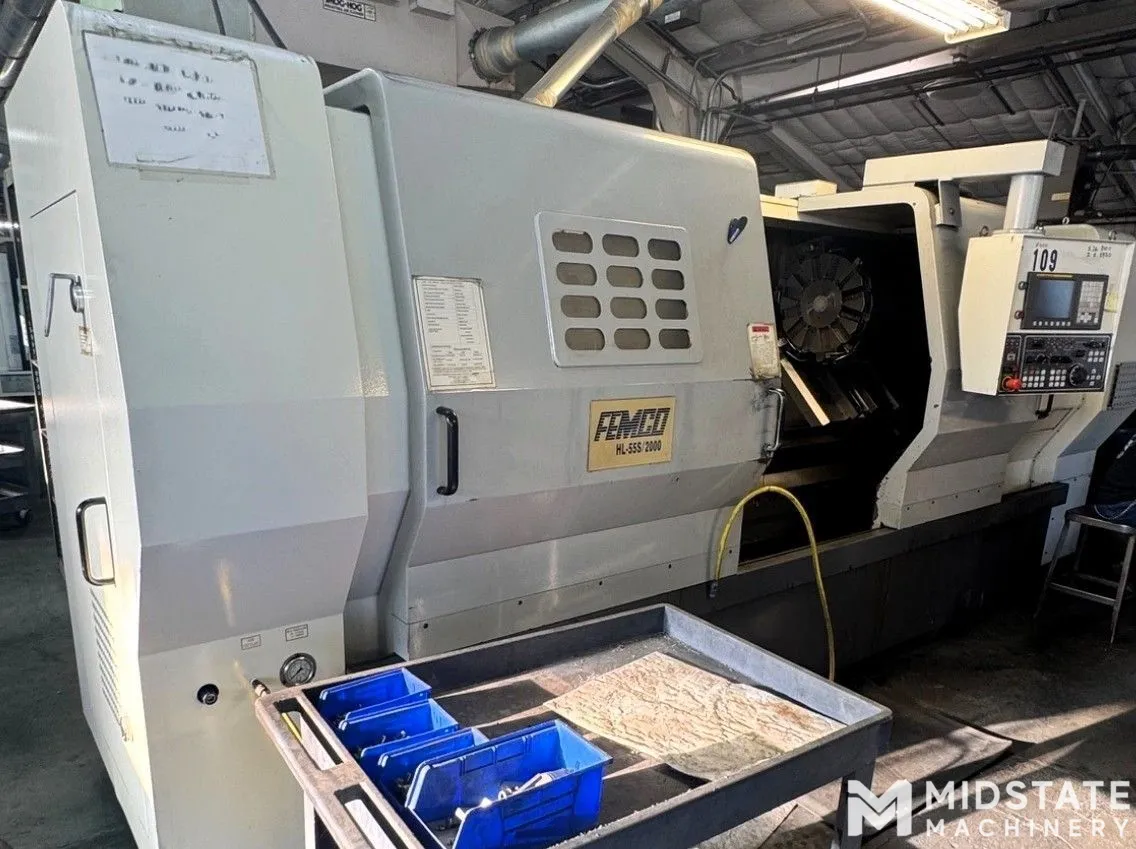

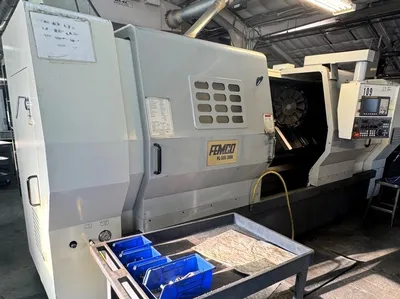

FEMCO HL-55/2000 CNC Turning Center, New in 2009.
General Specifications:
Max Turning Diameter: 25.4″
Max Turning Length: 42.12″
Max Bar Capacity: 4.65″
Swing Over Bed: 28.4″
Distance Between Centers: 75.5″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 25-2500 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5
Power Source: AC 220 V, Three Phase, 60 Hz

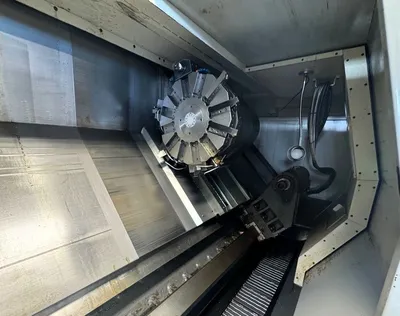

12-Station Turret
Fanuc 0i-TD CNC Control

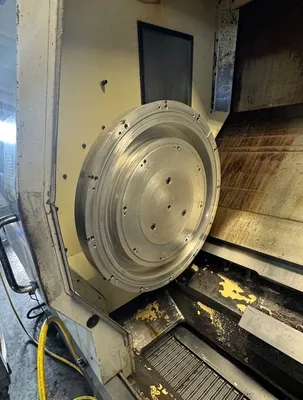

15″ Hydraulic Chuck
Hydraulic Tailstock with Power Quill
Chip Pan
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
Box Way Heavy Duty Construction
