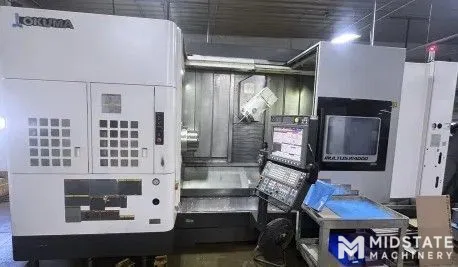

OKUMA MULTUS U4000 2SW/2000 CNC Multi-Axis Turning Center, New in 2015
Have one to sell?
ConditionUsed
1 available
OKUMA MULTUS U4000 2SW/2000 CNC Multi-Axis Turning Center, New in 2015.
B-Axis.
Big Bore A2-11 Main Spindle.
8-Axis / Simultaneous 5-Axis Machining.
Sub-Spindle.
Lower Turret.
General Specifications:
Machine Construction Heavy-duty box-way design for high-torque cutting
Control Okuma OSP-P300S
Main Spindle
Spindle Nose A2-11
Maximum Speed 3,000 RPM
spindle power 22 HP (continuous) / 43 HP (30-minute)
Spindle Bore (Big Bore) 4.41″
Sub-Spindle A2-8
Maximum Turning Diameter 25.6″
Maximum Turning Length 78.7″
B-Axis Milling Head
B-axis range -30° to +210°
Milling Spindle Speed 12,000 RPM
Axis Configuration 8-Axis / Simultaneous 5-Axis Machining
AUTOMATIC TOOL CHANGER 80 Tools – Capto C6
Big Bore A2-11 Main Spindle
5-Axis Machining Package
NC B-Axis Contouring
C-Axis Synchronization
Lower Turret Milling Function
Negative Tool Radius Compensation
Lathe Tool Indexing – Multi-Edge
Z-Axis Auto Zero Offset
C-Axis Auto Zero Offset
Hydraulic Oil Temperature Regulator
Rapid Traverse Override Switch
80-Station ATC – Capto C6
Touchsetter
JF Berns Loader
ChipBlaster High-Pressure Coolant System
Chip Conveyor
Y-Axis Gauging
Optional Filter Starter Kit
MistBlaster Constant System
Big Bore Drawtube
