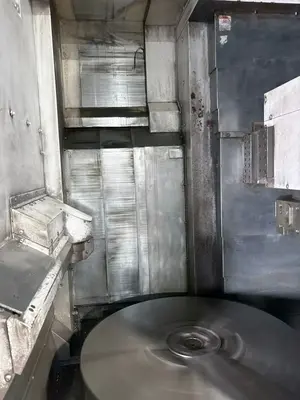

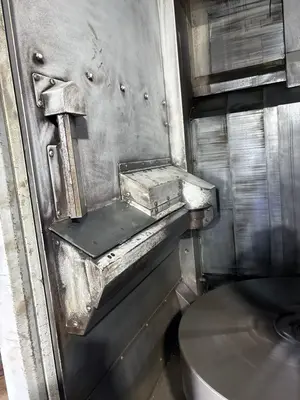

MORI SEIKI VL-553II CNC Vertical Boring Mill, New in 2012

General Specifications:
Table Dia 32"
Swing 32.7"
Work Ht-U/R 25.9"
Power 30 hp
RPM 1,500 RPM
Control CNC (Fanuc 21i-TB)
Dimensions R-L 76" X F-B 143" X Height 115"
Weight 26,000 Lbs.

Control.................................................Fanuc 21 i-TF CNC

Maximum Swing...........................................32.7"
Maximum Turning Diameter................................30.7"
Work Height From Floor..................................24.2 "
Chuck Size..............................................32"3-Jaw
Spindle Speed 2-Speed Geare Box.........................1,500 RPM
Maximum Turning Length..................................25.9"
Z-Axis Travel...........................................26.0"
X-Axis Travel...........................................16.3"
Rapid Traverse Rate X / Z...............................944 IPM / 787 IPM
Turret Stations.........................................10 Positions
Turret Tools............................................1.250"
Turret Index Speed......................................3 Seconds
Main Spindle Motor......................................30/40 HP
Floor Space.............................................R-L 76" X F-B 143"
Machine Height..........................................115"
Machine Weight..........................................26,000 Lbs.
Chip Conveyor...........................................Yes
Coolant.................................................Yes
Full Enclosure..........................................Yes
