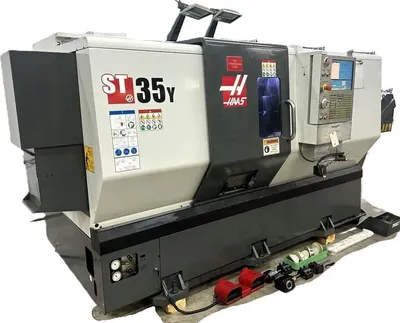

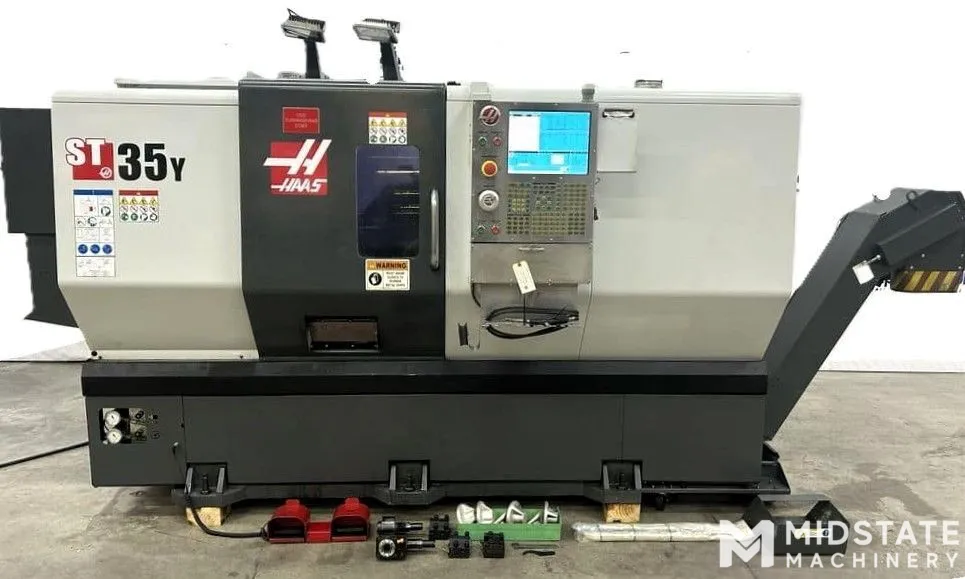

HAAS ST-35Y CNC Turning Center, New in 2016
Have one to sell?
ConditionUsed
1 available

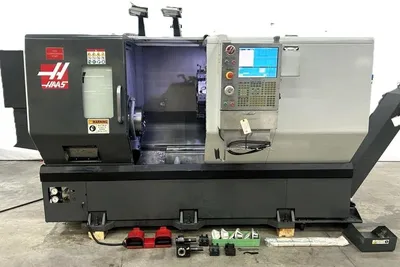

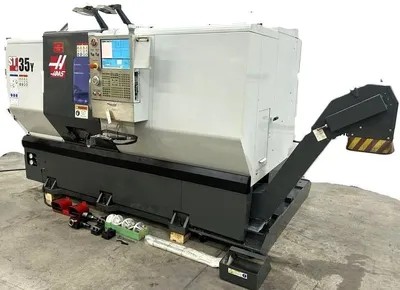

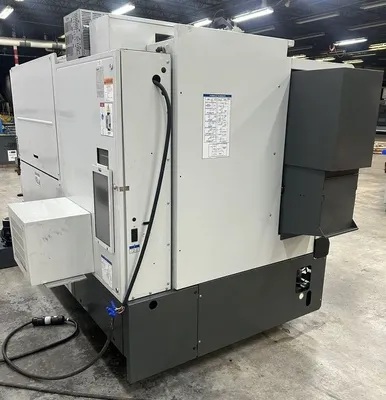

HAAS ST-35Y CNC Turning Center, New in 2016.
Y-Axis live tooling.
12- Station Hybrid BOT/VDI Turret.
Programmable Tailstock.
Haas NextGen Color LCD
General Specifications:
Swing Over Bed:
31.75″
Max Cutting Diameter:
12″
Max Cutting Length:
32.5″
Bar Capacity:
4″

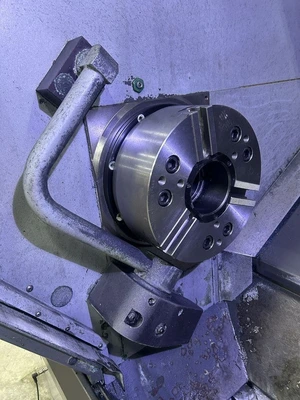

Chuck Size:
12″
Spindle Nose:
A2-8
Spindle Bore:
4.62″
Draw Tube Bore:
4.06″
Spindle Speed:
0-3,200 RPM
Spindle Torque:
425ft-lb @ 325RPM
Peak Horsepower:
40HP
X-Axis Travel:
4.0"
Z-Axis Travel:
32.5"
Turret:
12 Station Hybird BOT/VDI
Coolant Capacity:
55 Gallons
Electrical:
220V/3PH

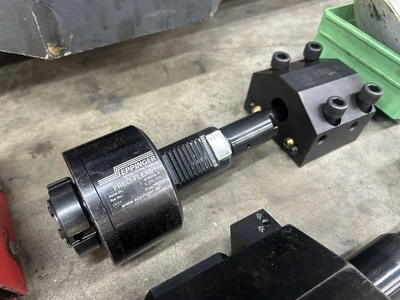

Y-Axis Live Tooling

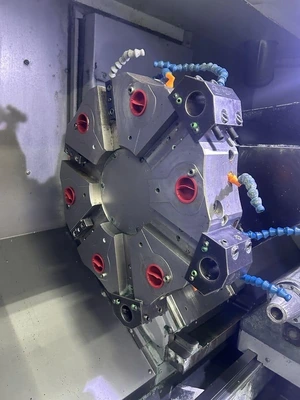

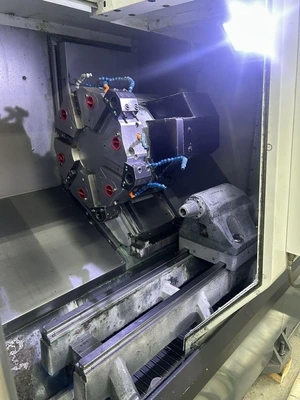

12-Station Hybrid BOT / VDI Turret
Hydraulic Programmable Tailstock

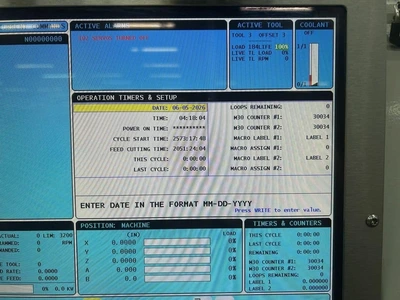

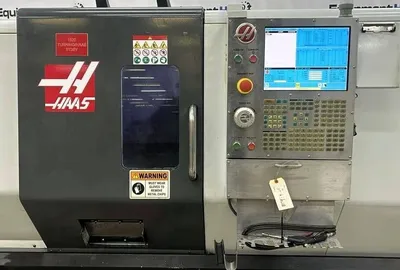

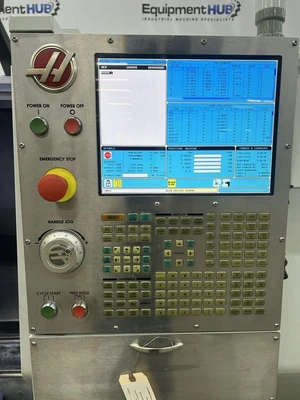

Haas Next-Gen Color LCD Widescreen Control

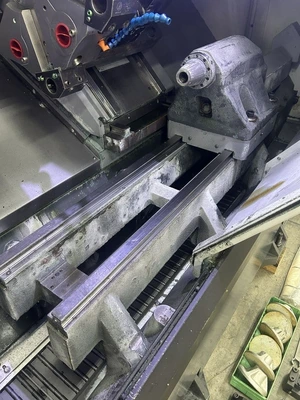

Box Way Construction

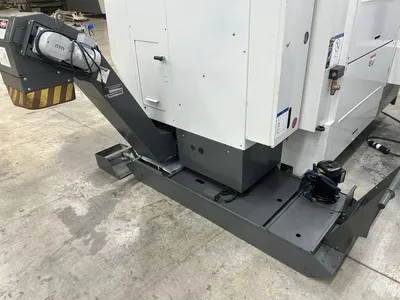

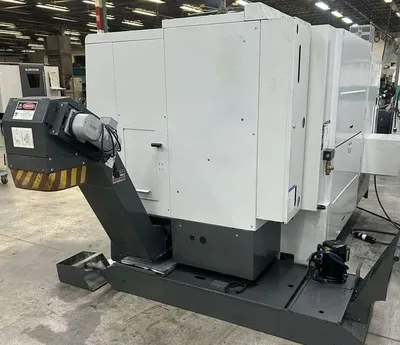

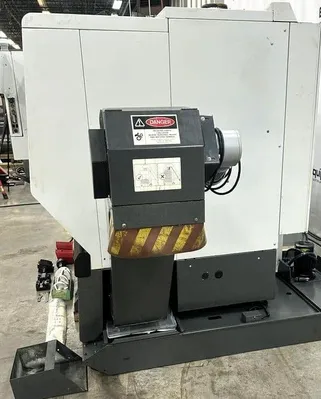

Hennig Chip Conveyor
Loc-Line Coolant System
40 HP Haas Vector Drive

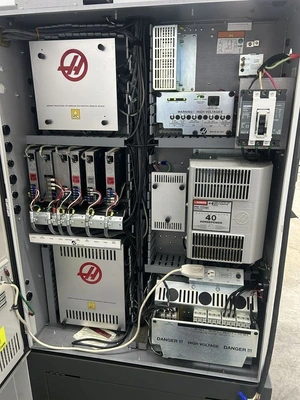

Servo Amplifiers (X, Y, Z, C-Axis, Live Tooling, Spindle, Tool Turret, Tailstock, Bar Feeder, Auto Door)

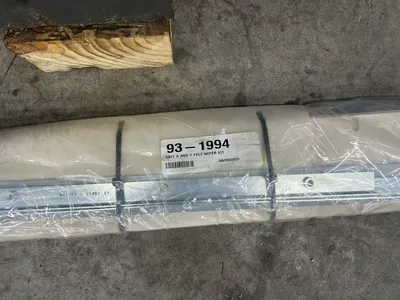

Wiper Kit (New-P/N93-1994)
