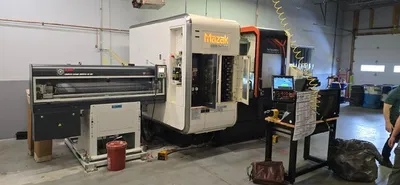

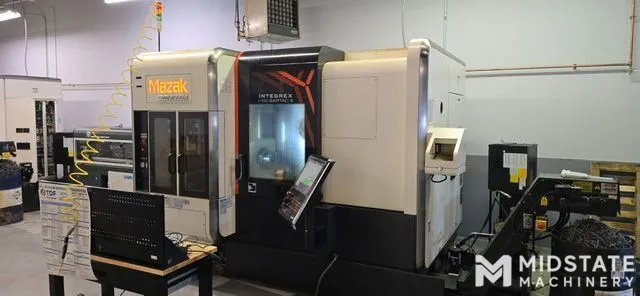

2017 Mazak i-100 BARTAC-S Multitasking Lathe

SPECIFICATIONS:
MAXIMUM SWING 20.87"
MAXIMUM MACHINING DIAMETER 19.670"
SPINDLE BORE 4.4"
MAXIMUM BAR WORK CAPACITY 4.0"
MAXIMUM MACHINING LENGTH 33.62"
CHUCK SIZE MAIN 8"
MAXIMUM SPEED MAIN 2000 RPM
MOTOR OUTPUT {30 MINUTE RATING) 15 HP
CHUCK SIZE SUB SPINDLE 6"
MAXIMUM SPEED SUB 6000 RPM
MOTOR OUTPUT {30 MINUTE RATING) 15.0HP
“B” AXIS TRAVEL MILL SPINDLE 240 DEG.
MAXIMUM SPEED MILLING SPINDLE 12000 RPM
MOTOR OUTPUT (20 ED RATING) 10HP
MAGAZINE CAPACITY 72
X AXES TRAVEL 17.72"
Y AXES TRAVEL 8.27"
Z AXES TRAVEL 35.59"
