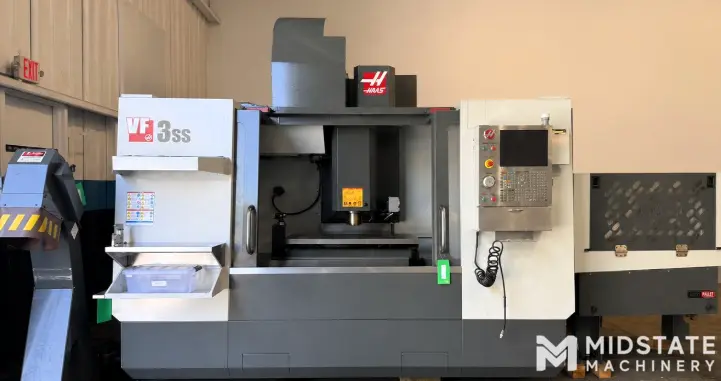

HAAS VF-3SSAPC CNC Vertical Machining Center, New in 2013
Have one to sell?
ConditionUsed
1 available

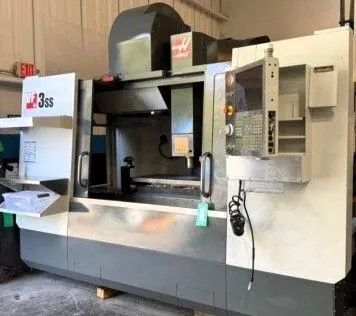

HAAS VF-3SSAPC CNC Vertical Machining Center, New in 2013.
Automatic Pallet Changer.
Through Spindle Coolant.
40 Automatic Tool Changer.
General Specifications:
X-axis 40″
Y-axis 20″
Z-axis 25″
Rapid traverse rates 1400 Inch Per Minute
Cutting feed rates 833 Inch Per Minute

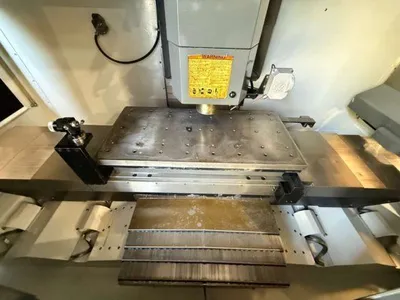

Length 48″
Width 18″
Number of std t-slots 5
T-slot width 5/8″
Max weight on table 1750 lbs
Taper size CAT-40
Speed range 12,000 RPM
Spindle power 30 HP
Capacity 40 Tools
Max tool weight 12 lbs
Max tool dia 2.5″ – 5.0″
Max tool length 13″
Tool changing time 1.80 Seconds
Air required 100 psi 4 scfm

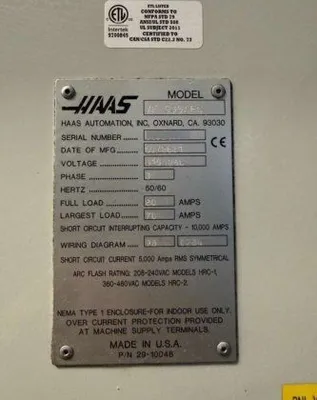

Power 220v / 66FLA / 3-Phase
Overall dimensions 152″ x 99″ x 106″ High (Without APC)
Weight 11,720 lbs Approx.

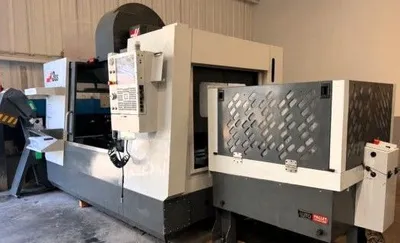

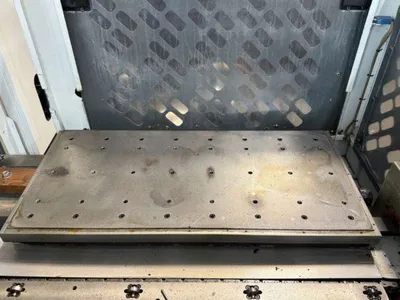

Automatic Pallet Changer.
12,000RPM High Speed Spindle.

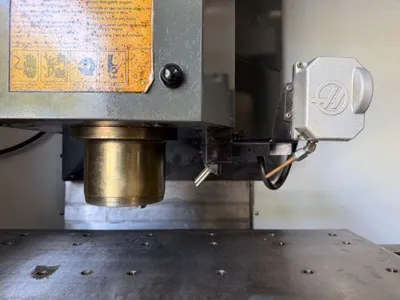

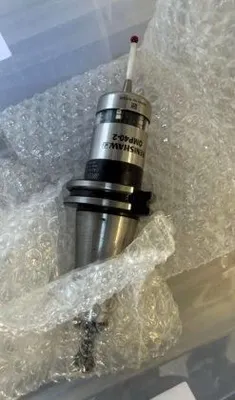

WIPS- Renshaw Probing System.

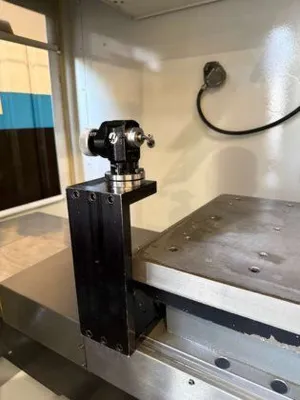

Tool Presetter.

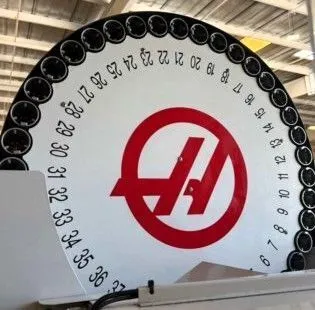

40-Staton Tool Changer.

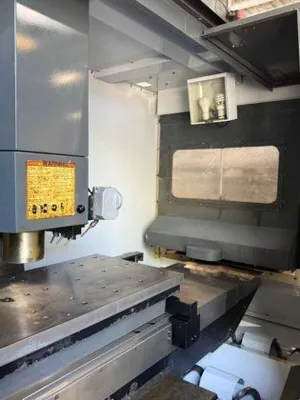

30HP High Torque Spindle.
Through Spindle Coolant.

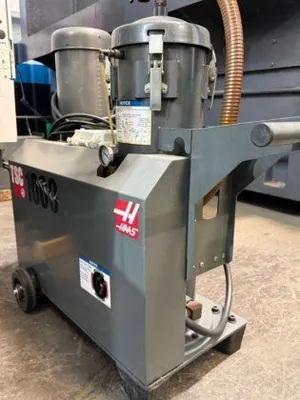

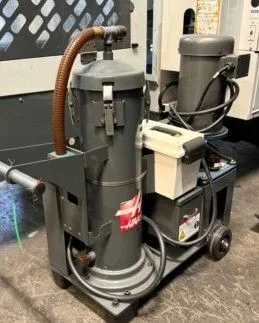

Auxillary Coolant Filter.
1400 IPM Fast Rapid Traverse.
MPG Control.
Rigid Tapping.
Spindle Orientation.
Programmable Coolant.

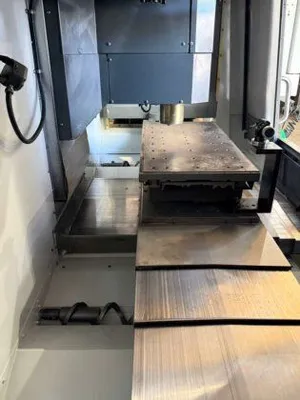

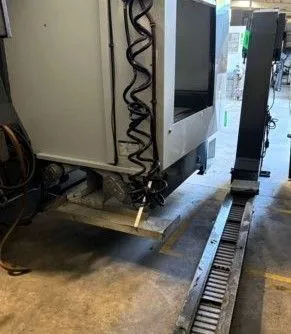

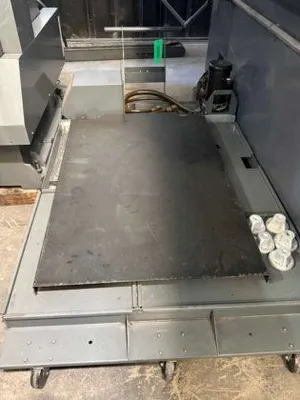

Quad-Auger System with Chip Conveyor.
HAAS VF-3SSAPC CNC Vertical Machining Center, New in 2013.
Automatic Pallet Changer.
Through Spindle Coolant.
40 Automatic Tool Changer.
Imperial
| X-Axis | 40" |
| Y-Axis | 20" |
| Z-Axis | 25" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 40 |
| Taper | CAT 40 |
| Table-W | 18" |
| Table-L | 48" |
| # Axis | 3 |
| Control | CNC (HAAS CNC) |
| Dimensions | 155" x 99" x 106" |
| Weight | 11,720lbs |
General Specifications:
X-axis 40″
Y-axis 20″
Z-axis 25″
Rapid traverse rates 1400 Inch Per Minute
Cutting feed rates 833 Inch Per Minute
Length 48″
Width 18″
Number of std t-slots 5
T-slot width 5/8″
Max weight on table 1750 lbs
Taper size CAT-40
Speed range 12,000 RPM
Spindle power 30 HP
Capacity 40 Tools
Max tool weight 12 lbs
Max tool dia 2.5″ – 5.0″
Max tool length 13″
Tool changing time 1.80 Seconds
Air required 100 psi 4 scfm
Power 220v / 66FLA / 3-Phase
Overall dimensions 152″ x 99″ x 106″ High (Without APC)
Weight 11,720 lbs Approx.
Automatic Pallet Changer.
12,000RPM High Speed Spindle.
WIPS- Renshaw Probing System.
Tool Presetter.
40-Staton Tool Changer.
30HP High Torque Spindle.
Through Spindle Coolant.
Auxillary Coolant Filter.
1400 IPM Fast Rapid Traverse.
MPG Control.
Rigid Tapping.
Spindle Orientation.
Programmable Coolant.
Quad-Auger System with Chip Conveyor.
