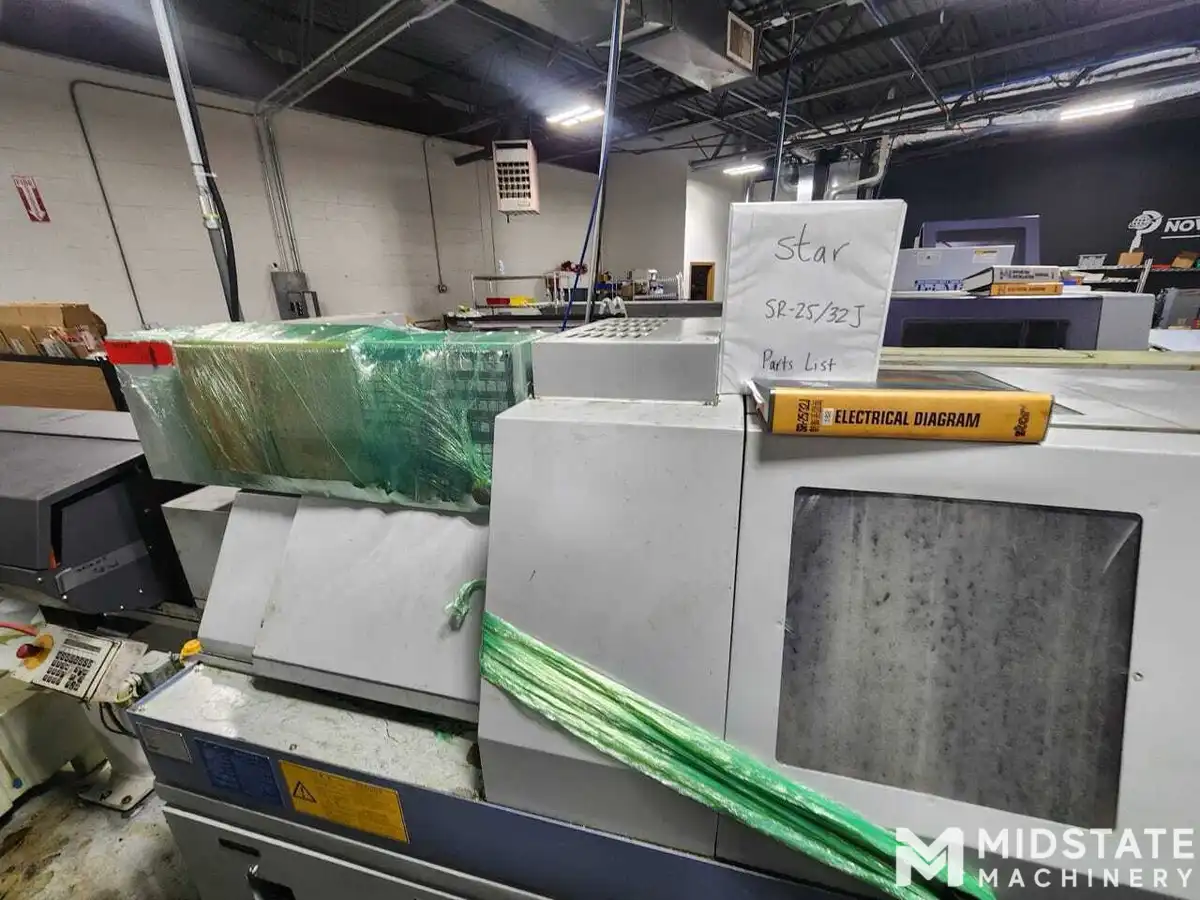

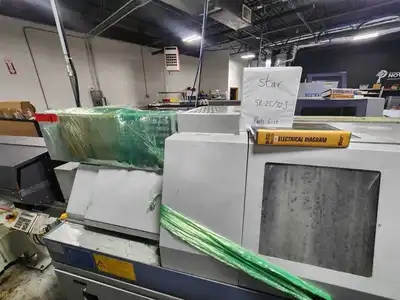

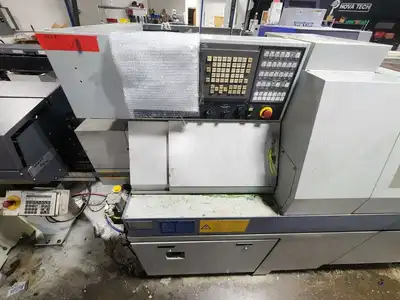

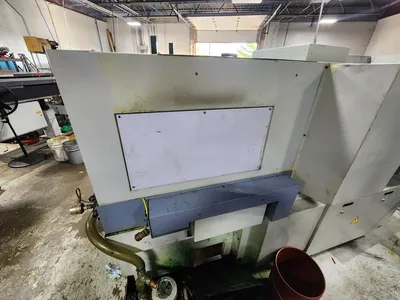

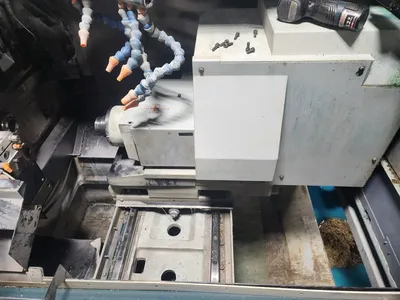

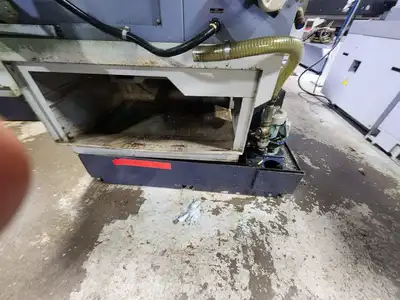

STAR SR-32J Swiss CNC Lathe, New in 2010

General Specifications:

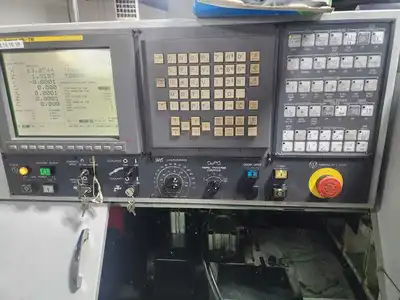

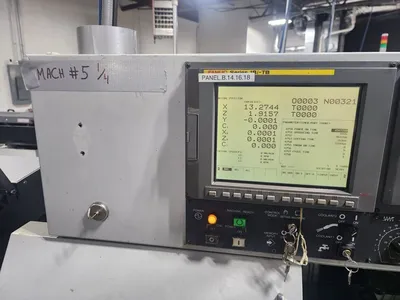

Control Fanuc CNC Control (typically Fanuc 18i-TB or 31i-A)
Bar Capacity 1.26 in (32 mm)
Max Machining Length (per chuck) 12.6 in (320 mm)
Main Spindle Speed Up to 8,000 RPM
Sub Spindle Speed Up to 8,000 RPM
Number of Axes 8 (X1, Y1, Z1, C1 + X2, Z2, C2 + optional Y2)
Main Spindle Motor 5.5 / 7.5 kW (7.5 / 10 HP)
Sub Spindle Motor 3.7 kW (5 HP)
Live Tool Speed Up to 5,000 RPM
Cross-Drilling Stations 6 front + 4 rear live tools
Back-Working Tools 8 stations (drilling, milling, tapping)
Total Tool Capacity 28+ tools (depending on configuration)

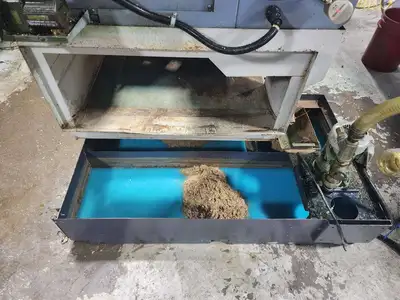

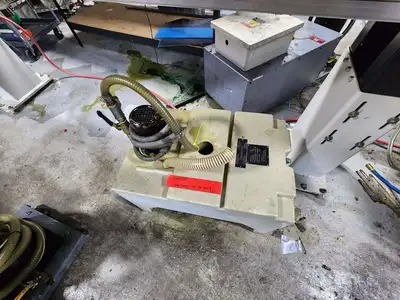

Coolant System Flood coolant / high-pressure coolant ready

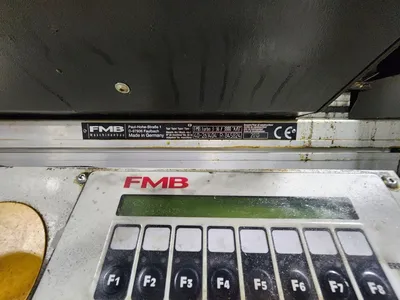

Bar Feeder Compatibility FMB

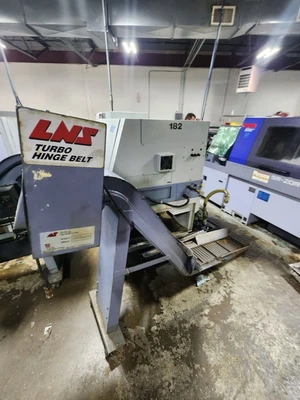

Chip Conveyor – LNS
Machine Dimensions (L × W × H) ≈ 100″ × 55″ × 65″ (2,540 × 1,397 × 1,651 mm)
Weight ≈ 6,500 lb (2,950 kg)
