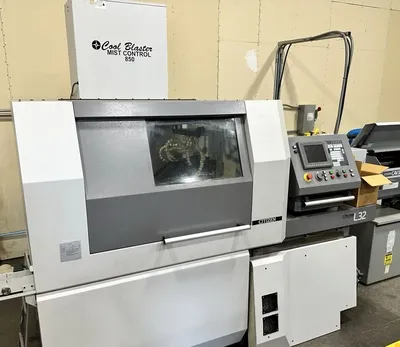

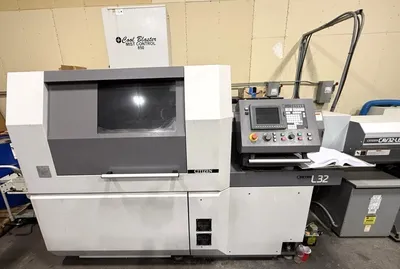

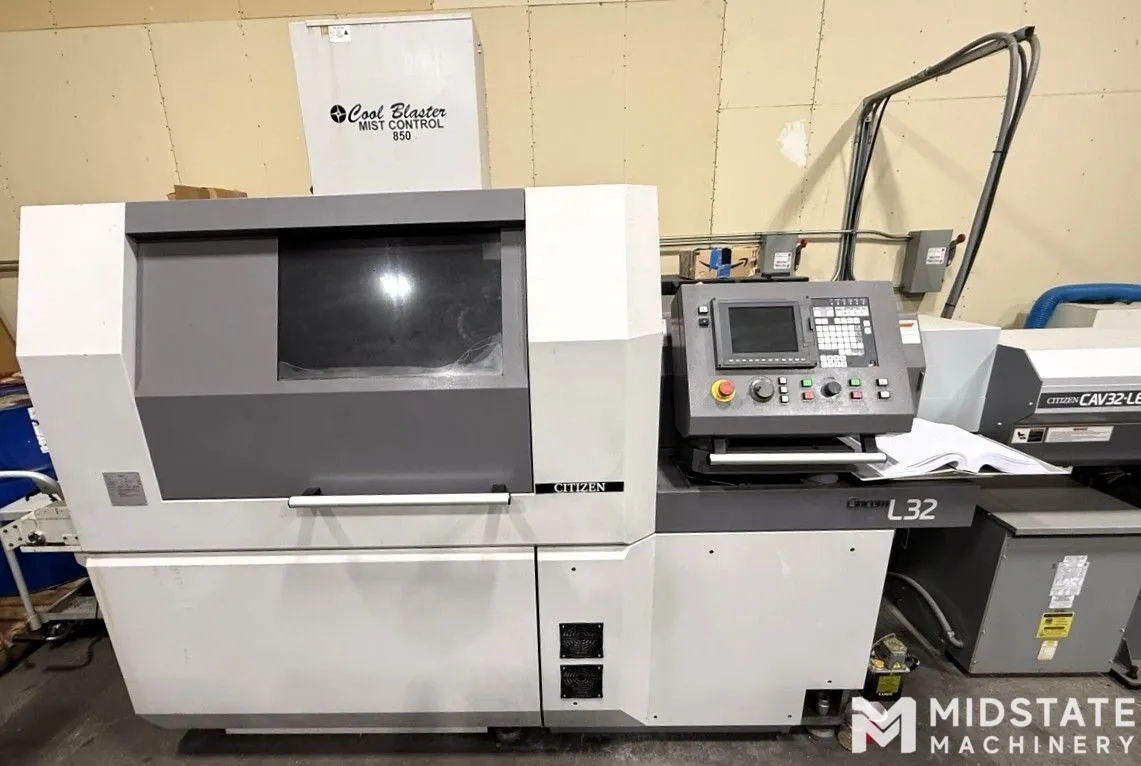

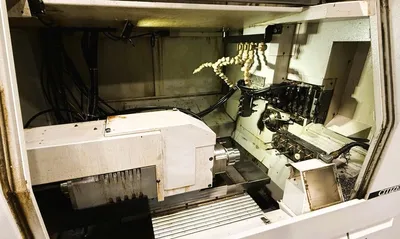

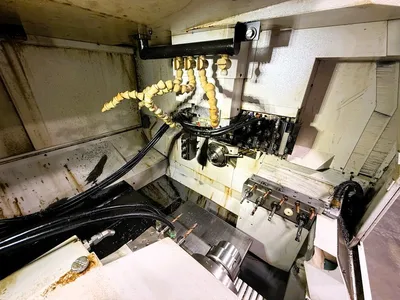

CITIZEN L32-1M8 CNC Swiss Lathe, New in 2015

General Specifications:
Number of Axis Z1, X1, Y1, Z2, X2, C1, C2

Capacity:
Max Machining Diameter: 1.26″ (32 mm)
Max Machining Length with Guide Bushing: 12.6″ (320mm)
Max Machining Length without Guide Bushing: 2.5″ (63.5 mm)
Max Bar Capacity: 1.26″ (32 mm)
Spindle Through Hole Diameter: 1.53″ (39 mm)
Max Tool Positions: 19 – 30
Max. Front Drilling Diameter: 0.472″ (12 mm)
Max. Front Tapping Diameter: M12
Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
Max. Back Spindle Drilling Diameter: 0.472″ (10 mm)
Max. Back Spindle Tapping Diameter: M10
Max. Tool Spindle Drilling Diameter: 0.314 (8 mm)
Max. Tool Spindle Tapping Diameter: M6

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Speed: 8,000 RPM
Main Spindle Motor: 7.5 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 8,000 RPM
Back Spindle Motor: 3.7 kw

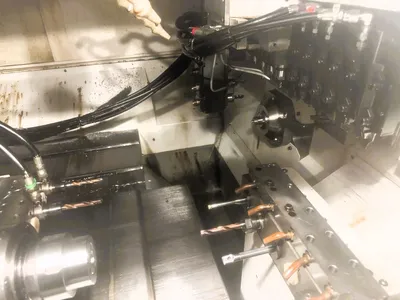

Standard Tools:
Gang Turning Tool: 6
Front Drilling tool: 4 – 9
Back Drilling Tools: 5 – 11

Power Driven Tools Attachment:
Gang rotary tool: 4 – 6
Driven Tool Speed: 6,000 RPM
Driven Tool Motor: 1.0 kw

General:
Power Source: AC 220v / 3-Phase / 50/60 Hz
Power Requirement: 13.2 kva

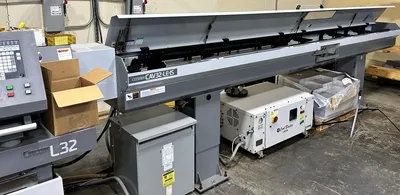

Overall Dimensions: 97″ X 55″ X 69″ High without Bar Feeder
Weight: 6,283 lbs.
