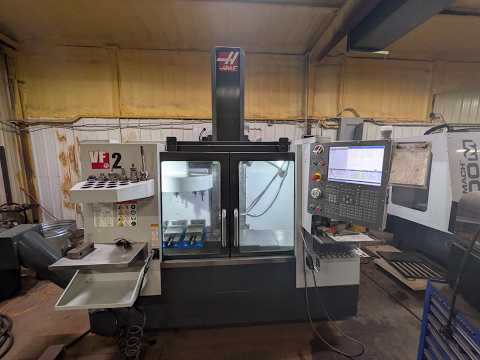

Haas VF-2 Vertical Machining Center, New in 2018
Have one to sell?
ConditionUsed
1 available
Haas VF-2 Vertical Machining Center, New in 2018
Well Maintained - 94 Cutting Hours
General Specifications:
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Max Table Load: 1500 lbs
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Rapids (X, Y, Z): 1400 IPM
Max Cutting Feed Rate: 833 IPM
Tool Capacity: 30+1
Machine Weight: 8,000 lbs
Machine Dimensions: 110″ x 92″ x 104″

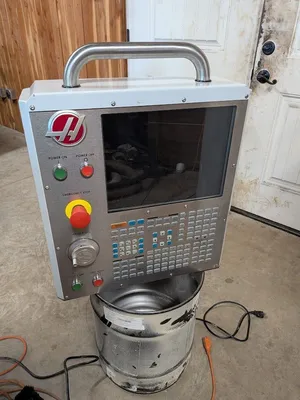

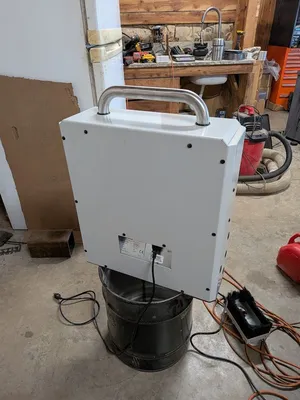

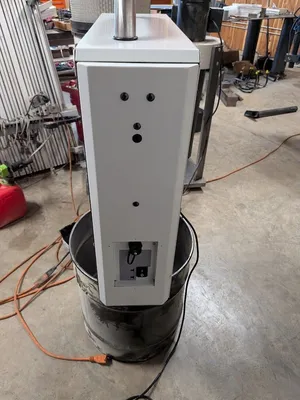

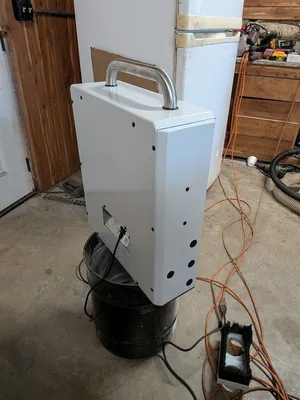

Haas CNC Control

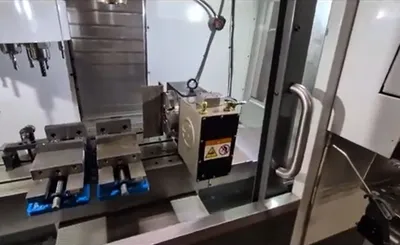

HRT-210 Rotary Table
Renishaw Tool & Parts Probe
Chip Auger

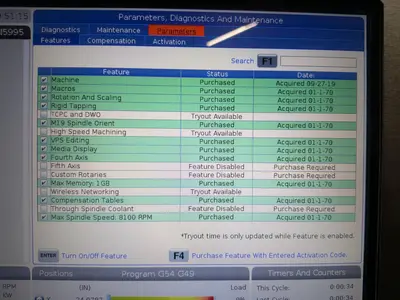

Rotation and Scaling
M19 Spindle Orientation
Haas CSMD Control Simulator
All Available Tool Holders & Manuals
*Vices in photos are NOT included
*Machine only made one part for internal use.
*Chip auger motor needs minimal repair
Haas VF-2 Vertical Machining Center, New in 2018
Well Maintained - 94 Cutting Hours
Imperial
| X-Axis | 30" |
| Y-Axis | 16" |
| Z-Axis | 20" |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 20 |
| Taper | CT or BT 40 |
| Table-W | 14" |
| Table-L | 36" |
| Control | CNC (Haas) |
| Dimensions | 110″ x 92″ x 104″ |
| Weight | 8,000 lbs |
General Specifications:
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Max Table Load: 1500 lbs
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Rapids (X, Y, Z): 1400 IPM
Max Cutting Feed Rate: 833 IPM
Tool Capacity: 30+1
Machine Weight: 8,000 lbs
Machine Dimensions: 110″ x 92″ x 104″
Haas CNC Control
HRT-210 Rotary Table
Renishaw Tool & Parts Probe
Chip Auger
Rotation and Scaling
M19 Spindle Orientation
Haas CSMD Control Simulator
All Available Tool Holders & Manuals
*Vices in photos are NOT included
*Machine only made one part for internal use.
*Chip auger motor needs minimal repair
