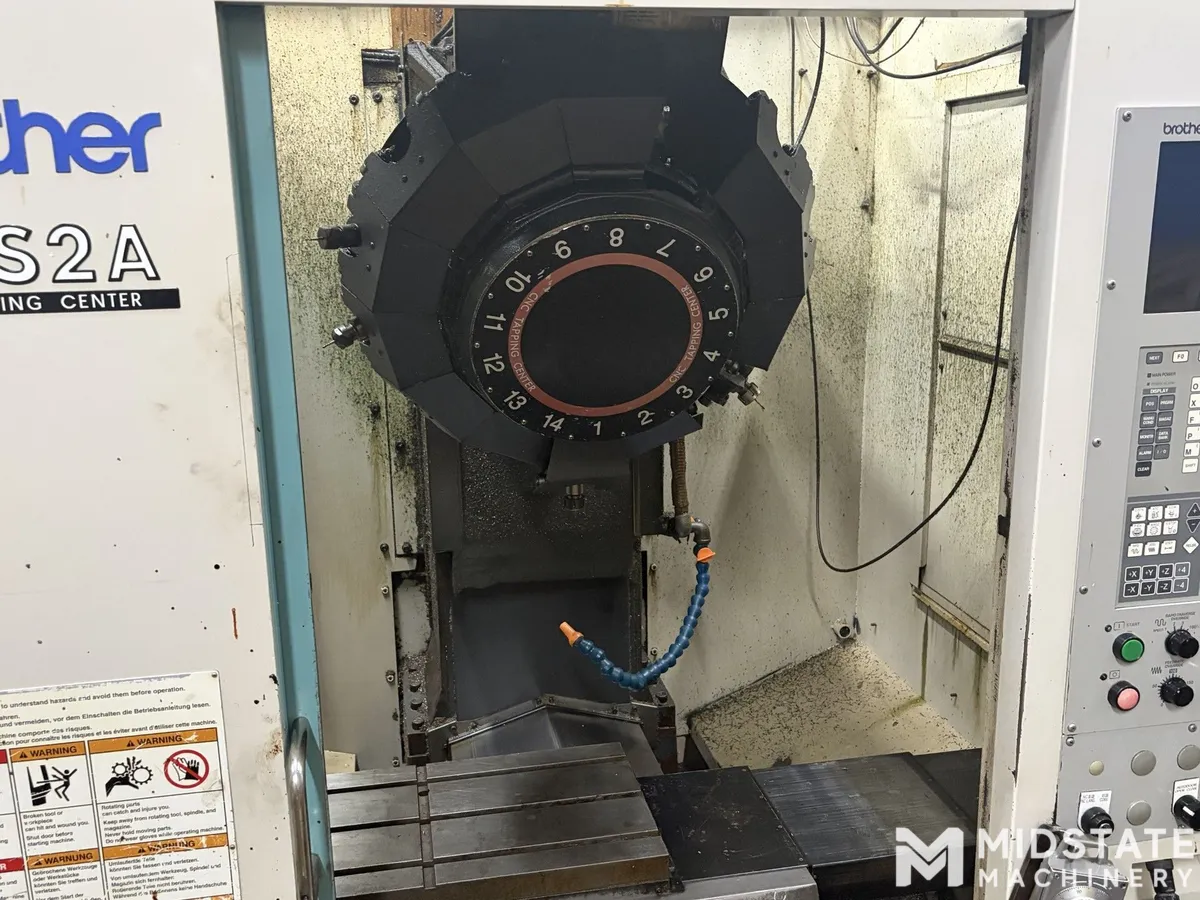

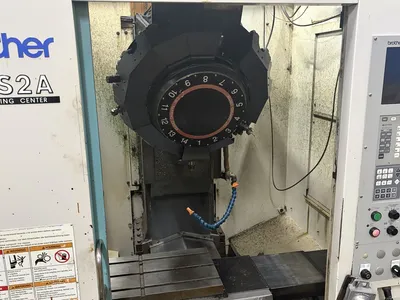

BROTHER TC-S2A CNC Drilling & Tapping Center, New in 1999
Have one to sell?
ConditionUsed
1 available
BROTHER TC-S2A CNC Drilling & Tapping Center, New in 1999.
General Specifications:
Table Size (Maximum Load) 31.5″ x 11.8″ (330 lbs.)
X-Axis Travel 27.5″
Y-Axis Travel 14.2″
Z-Axis Travel 10.6″
Rapid Feed Rate: 1,969 ipm
Spindle Speed Range 60 – 10,000 RPM
Spindle Motor 10 HP
Automatic Tool Changer 14 Stations
Max Tool Diameter / Length 3.15″ / 7.87″
Air Requirements 80 psi, 4 scfm
Electrical Requirements 205-220V/3Ph/60Hz
Overall Dimensions 78″ x 104″ x 97″
Machine Weight 4,500 lbs.
