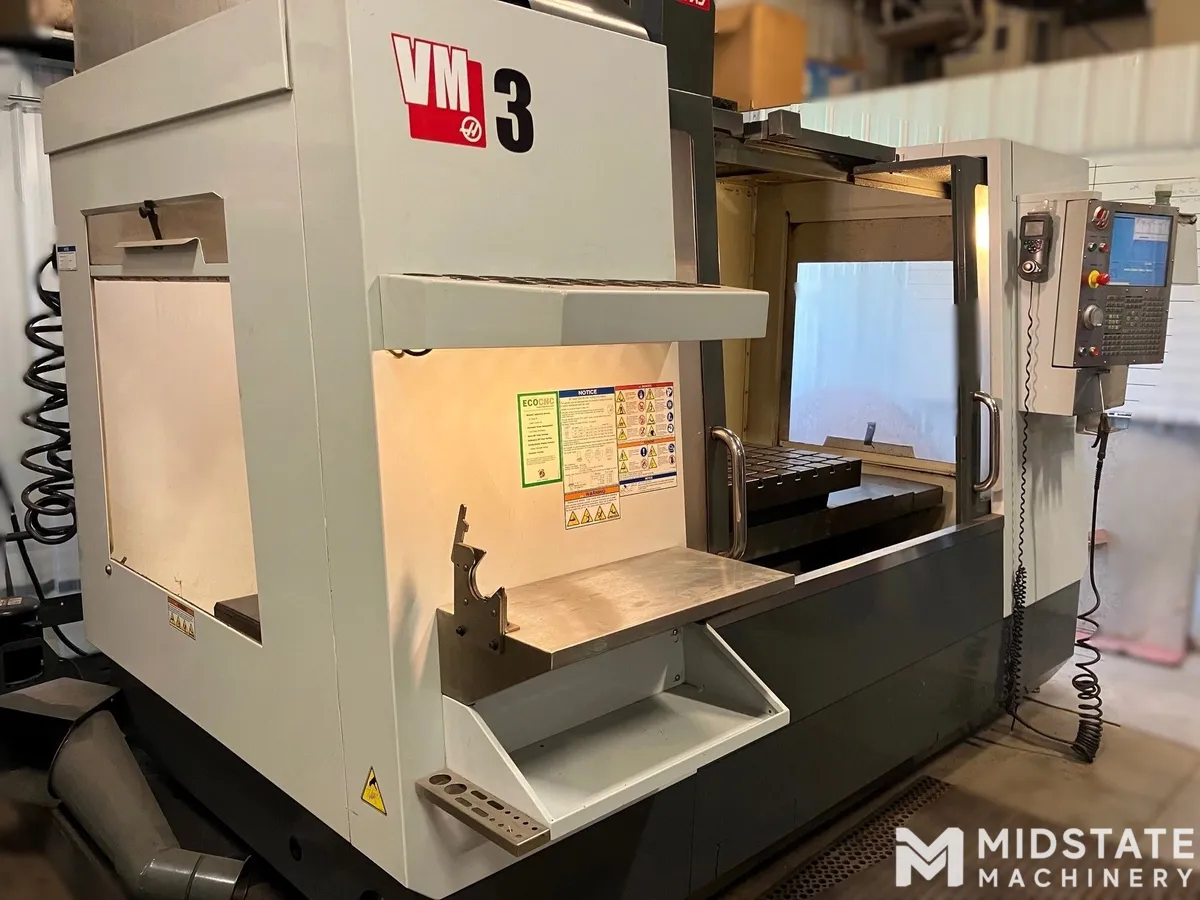

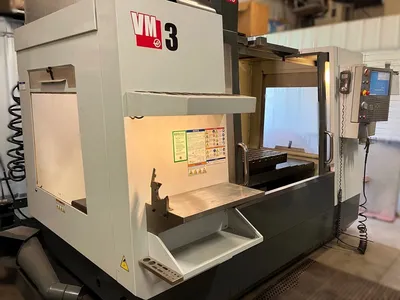

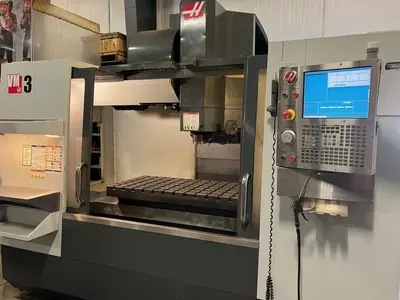

HAAS VM-3 CNC Vertical Machining Center, New in 2010

HAAS VM-3 CNC Vertical Machining Center, New in 2010

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VM-3
Year:
2010
Stock #:
5005
Status:
For Sale

Description

HAAS VM-3 CNC Vertical Machining Center, New in 2010.

X-Axis40"1,016 mm
Y-Axis26"660.4 mm
Z-Axis25"635 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC2424
Taper4040
Table-W25"635 mm
Table-L54"1,371.6 mm
# Axis33
ControlCNC (HAAS CNC)CNC (HAAS CNC)
Dimensions118" x 110" x 117"118" x 110" x 117"
Weight12,500lbs12,500lbs

General Specifications:
X-Axis 40"
Y-Axis 26"
Z-Axis 25"
# Axis 4
Power 30 hp
# ATC 24
Table-W 25"
Table-L 54"
SPINDLE SPEED 12,000 RPM
TOOL MAGAZINE CAPACITY 24 ATC
CONTROL HAAS CNC
COOLANT THROUGH SPINDLE COOLANT PREPPED
RAPID RATE X/Y/Z-AXIS 710 IPM

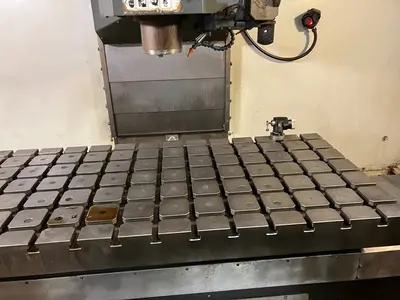

TABLE SIZE 54" X 25"
MAX TABLE LOAD 4,000 LBS.
DIMENSIONS 118" X 110" X 117"
WEIGHT 12,500 LBS.

Machine manufactured 10/2010, Installed in 2011.
Probe.
High Pressure Thru-Spindle Coolant Prepped
