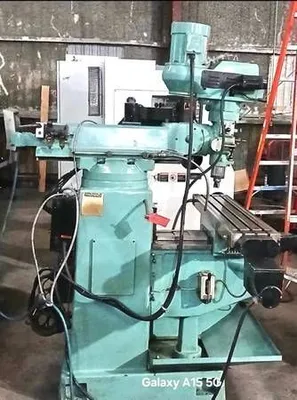

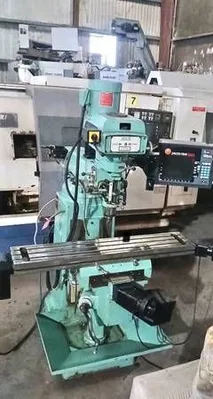

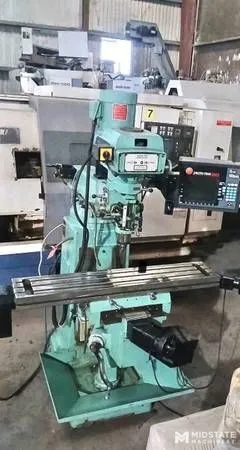

Southwestern Ind Trak K3SX CNC Knee Mill
Have one to sell?
ConditionUsed
1 available
Southwestern Ind Trak K3SX CNC Knee Mill
2-Axis
Table size- 50” x 10”
T-Slots- (3) 5/8”
Table travel X- 32”
Saddle travel Y- 16’’
Knee travel- 16”
Ram travel- 15”
Quill travel- 5”
Quill diameter- 3-3/8”
Spindle taper- R-8
Spindle speeds- 60 – 4200 R.P.M.
Head tilt- 45° forward, 45°back, 90° left, 90° right
Maximum table weight- 850 Lbs.
Maximum rapid feed rate- 100 I.P.M.
SMX CNC Control (2 axis CNC / 3 Axis readout)
Drawbar
Spindle motor 3 H.P.
Motor voltage 220 / 440 / 3 phase/ 60 HZ
Machine is currently wired for 220 volt
Machine weight- 2850 Lbs.
Machine dimensions- 71” L x 69” W x 86’’ H
