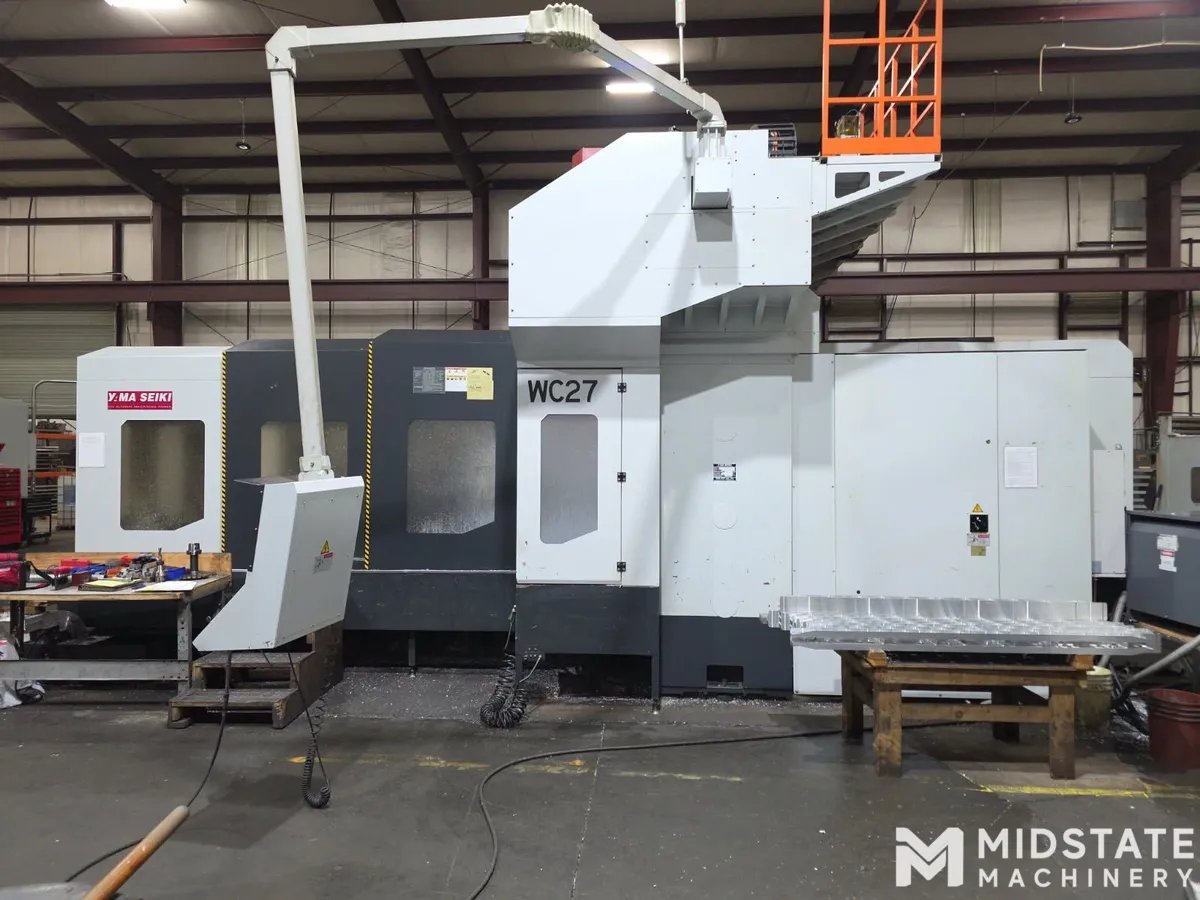

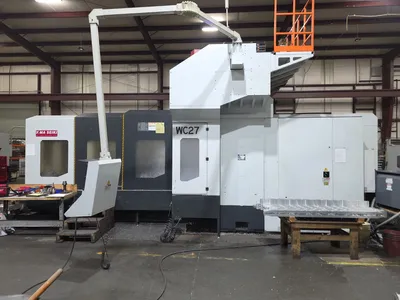

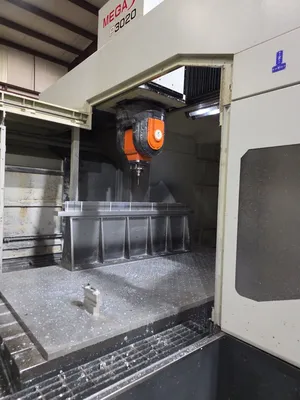

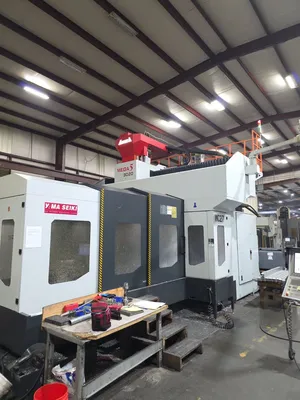

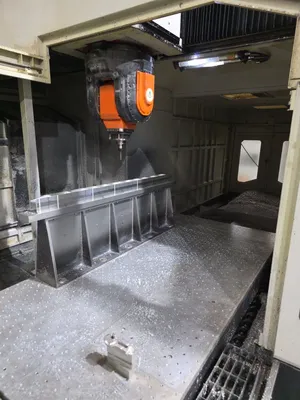

Yama Seiki Mega 5 P3020 Bridge Type Vertical Machining Center, New in 2017

General Specifications:

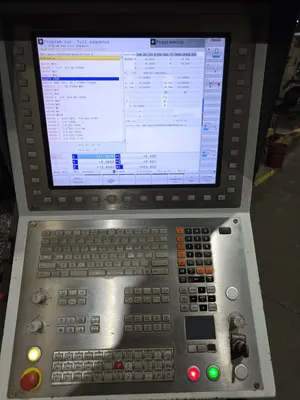

Control: Heidenhain 640 series
X-axis travel: 118.1"
Y-axis travel: 98.4"
Z-axis travel: 39.3"
Table Size: 126" x 60"
Max. table load: 26,450 Lbs.
Spindle taper: HSK-100A
Spindle speed max: 15,000 RPM
Spindle motor ( 30 min. / cont. ): 66 / 53 HP
X-axis rapid feedrate: 393 ~ 787 IPM
Y-axis rapid feedrate: 590 IPM
Z-axis rapid feedrate: 393 IPM
Tool Changer: 40 ATC

SPECIFICATIONS ADDITIONAL:
X-Axis Travel 118" 3,000 mm
Y-axis travel 100" 2,560 mm (Vertical head/ 2,000 mm ( Horizontal head )
Z-axis travel 39" 1,000 mm
Distance between columns 66.9" 1,700 mm
Distance from spindle nose to table top mm 200 ~ 1,200
Distance from 90o spindle center line to table mm 480 ~ 1,480
Table size ( X x Y ) mm 2,310 x 1,500
T slot ( Width x Distance ) mm 22 x 170

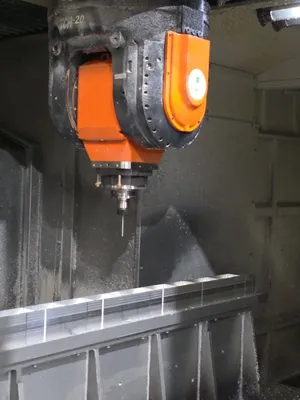

SPINDLE:
Spindle taper HSK-100A
Spindle motor ( cont. / 30 min ) kW 56 / 70
Spindle speed rpm 15,000
FEED RATE:
X-axis rapid feedrate m/min. 20
Y-axis rapid feedrate m/min. 20
Z-axis rapid feedrate m/min. 15
Cutting feedrate m/min. 1 ~ 10
TOOL MAGAZINE
Tool magazine capacity 40 ATC
Max. tool length mm 350
Max. tool weight kg 8
Max. tool diameter / adj. pocket empty mm Ø140 / Ø180

GENERAL
Coolant tank capacity liter 420
Lubrication oil tank capacity liter 6
Hydraulic unit tank capacity liter 100
Pneumatic pressure requirement ( min. ) kg/cm2 6 ~ 8 ( 6 )
Max. work-piece dimension:
Length ( X-axis ) mm 3,000
Width ( Y-axis ) mm 1,500
Height ( Z-axis ) mm 850
