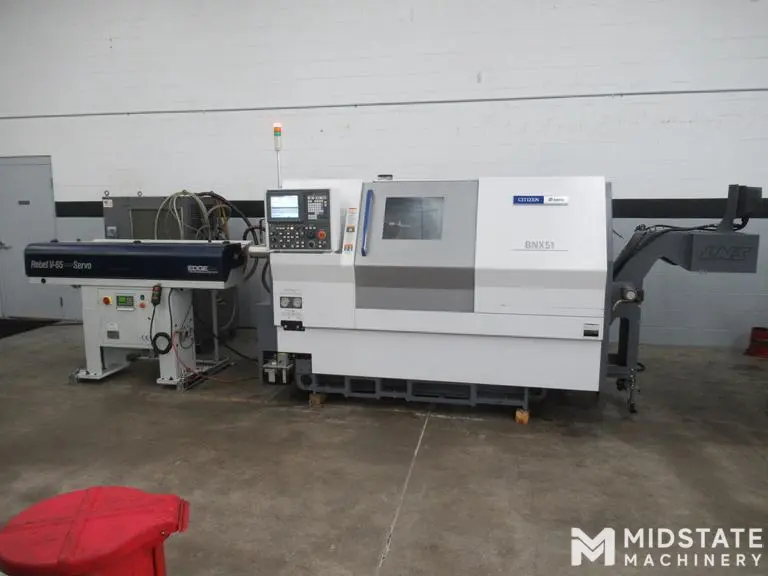

Miyano BNX-51MSY CNC Turning Center, New in 2017

General Specifications:
Standard Bar Capacity: 2"
Max Cutting Length: 5.91"
Turret Travels (X / Y / Z): 6.49" x +/- 1.57" x 11.81"

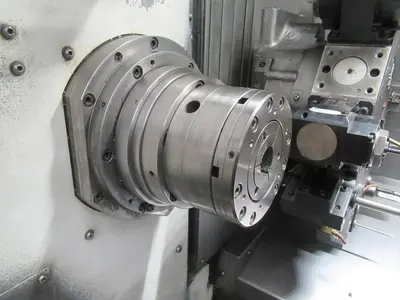

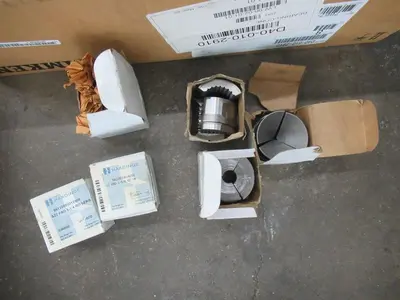

Main Spindle Chuck Size: (6" Max) Currently Equipped with H-S22 Collet Chuck
Main Spindle Speed: 50 - 5,000 RPM
Main Spindle Drive: 20HP 15/11 kW
Secondary Spindle Chuck Size: (5") Currently Equipped with H-S22 Collet Chuck
Secondary Spindle Speed: 50 - 5,000 RPM
Secondary Spindle Drive: 10 HP 7.5/5.5 kw
C-Axis Capability: Full C-Axis on Left & Right Spindles (.001 Degree)

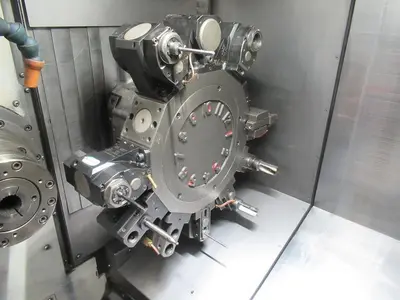

Turret Capacity: 12 Stations - All Live Capable
Rotary Tool Speed (Turret): 40 - 6,000 RPM
Rotary Tool Drive (Turret): 5.36 HP (4KW)
Spindle Slide Stroke: X2 / Z2 Spindle 2 Travels: 3.38" X 21.77"
Rapid Feed Rate: (X1, Z1, X2, Z2) & (Y1) 787 IPM & 472 IPM (Y)

Dimensions & Weight
Edge Bar Feed 78" x 48" x 50" / 2000 lbs
Machine: 157" x 63" x 87" / 11,500 lbs
MP System 60" x 39" x 69" / 1000 lbs
Step Up Transformer for MP Coolant System: 21" x 21" x 27" / 400 lbs
