DOOSAN PUMA 2600SYII CNC Turning Center, New in 2021
Have one to sell?
ConditionUsed
1 available

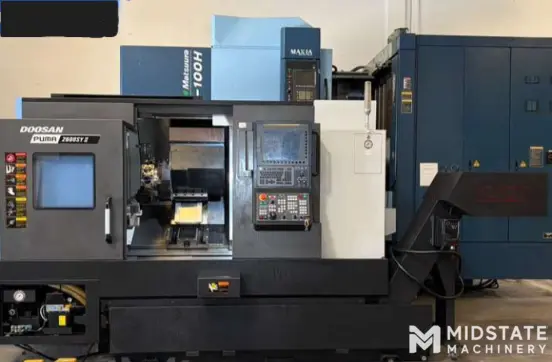

DOOSAN PUMA 2600SYII CNC Turning Center, New in 2021.
C-Axis
Live Tooling.
Sub-Spindle.
Y-Axis.
Low Hours!
General Specifications:
Capacity:
Max Turning Diameter: 14.80"
Max Turning Length: 29.90"
Swing Over Bed: 30.70"
Swing Over Saddle: 24.80"
Max Bar Capacity: 3.20"
Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.60"
Main Spindle Bar Capacity: 3.20"
Main Spindle Speed: 4,000 RPM
Main Spindle Power: 30HP
Travels:
X Axis Travel: 10.20"
Z Axis Travel: 32.70"
Y Axis Travel: 4.10" (+2.10 - -2.10)
B Axis Travel: 32.70"
C Axis Travel: 360 degree (0.001) Both Spindle
Doosan-Fanuc i-Plus Series CNC Control
Sub Spindle Parts Ejector
Servo Controlled Full C-Axis on Both Spindles
12-Station (24 Positions) Live Tool Turret
Y-Axis Capable
Tool Presetter
Parts Catcher
Bar Feeder Interface
MP Systems VR8 High Pressure Coolant System
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
LNS Chip Conveyor
