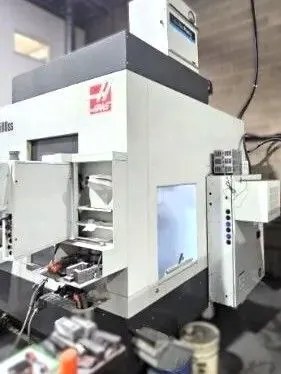

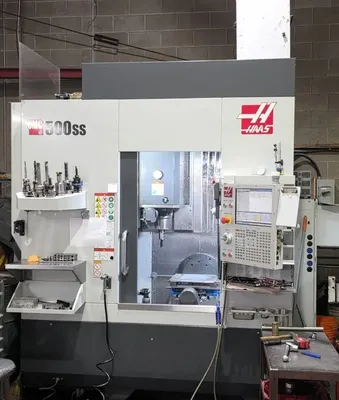

HAAS UMC-500SS Universal Machining Center, New in 2021
Have one to sell?
ConditionUsed
1 available

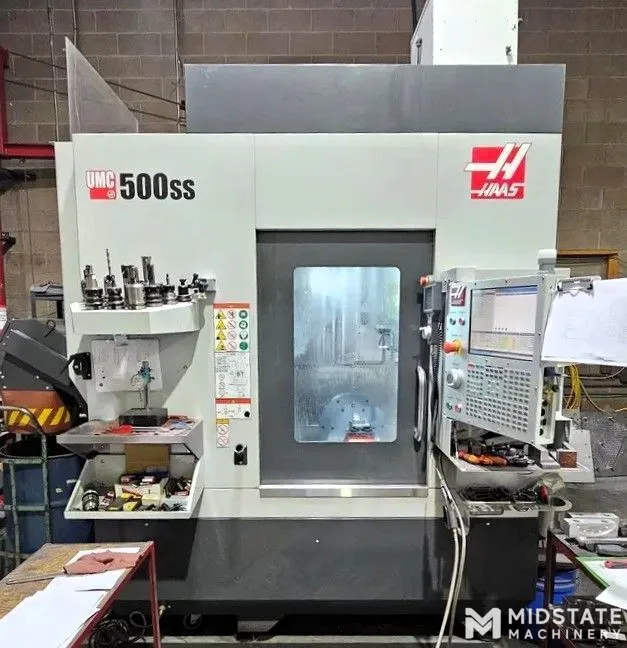

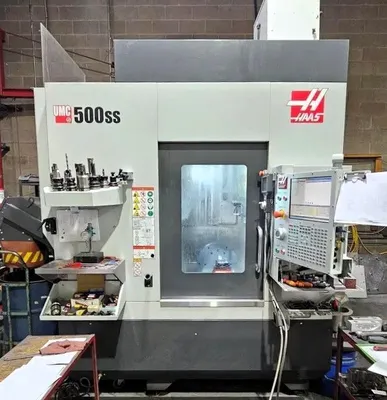

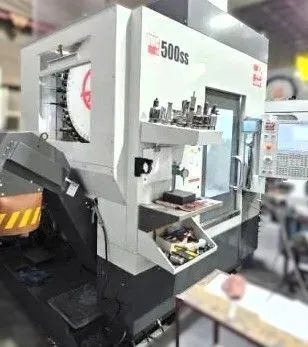

HAAS UMC-500SS 5-Axis Universal Machining Center, New in 2021
Put into service 2022
General Specifications:
X-Axis Travel: 24"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Spindle Nose-Platter: 4" - 20"
B-Axis - Tilt: 120° to 35-°

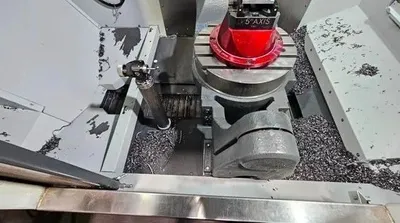

C-Axis - Rotation: 360°
Platter Diameter: 15.7"
Spindle Speed: 12,000 RPM
Spindle Taper: #40
Spindle Motor: 30 HP
Tool Changer: 50+1 Side Mount
Max Weight on Platter: 500 Lbs
Max Cutting Feedrate: 650 IPM
Rapid Feedrate: 900 IP

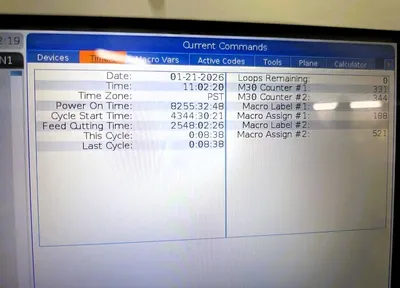

Haas CNC Control

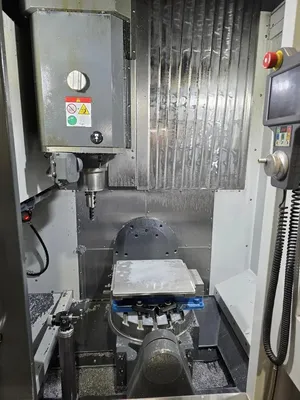

12,000 30 HP Direct Drive Spindle
50+1 Side Mount Tool Changer
Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant

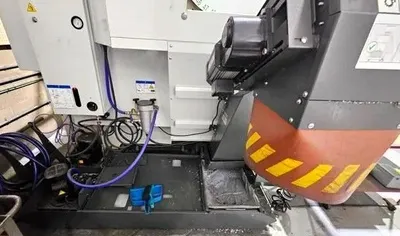

Belt-Type Chip Conveyor
Programmable Coolant Nozzle
Chip Strainer
Mist Away Mist Extractor
Part Pick Up Probe
Tool Length Measurement
55 Gallon Coolant Tank
Dynamic Work Offsets & Tool Center Point Control
Rigid Tapping
M-Code
Remote Jog Handle
HAAS UMC-500SS 5-Axis Universal Machining Center, New in 2021
Put into service 2022
Imperial
| X axis | 24" |
| Y axis | 16" |
| Z axis | 16" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 50 |
| Taper | 40 |
| Table-W | 15.7" |
| Table-L | 15.7" |
| Control | CNC (HAAS CNC) |
| Dimensions | 128" x 98" x 110" |
| Weight | 11,900 lbs |
General Specifications:
X-Axis Travel: 24"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Spindle Nose-Platter: 4" - 20"
B-Axis - Tilt: 120° to 35-°
C-Axis - Rotation: 360°
Platter Diameter: 15.7"
Spindle Speed: 12,000 RPM
Spindle Taper: #40
Spindle Motor: 30 HP
Tool Changer: 50+1 Side Mount
Max Weight on Platter: 500 Lbs
Max Cutting Feedrate: 650 IPM
Rapid Feedrate: 900 IP
Haas CNC Control
12,000 30 HP Direct Drive Spindle
50+1 Side Mount Tool Changer
Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant
Belt-Type Chip Conveyor
Programmable Coolant Nozzle
Chip Strainer
Mist Away Mist Extractor
Part Pick Up Probe
Tool Length Measurement
55 Gallon Coolant Tank
Dynamic Work Offsets & Tool Center Point Control
Rigid Tapping
M-Code
Remote Jog Handle
