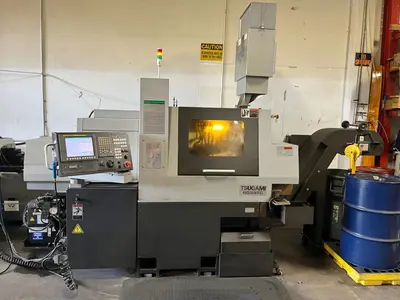

TSUGAMI B0385C CNC Swiss Lathe, New in 2018

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
TSUGAMI
Model:
B0385C
Year:
2018
Stock #:
4980
Status:
For Sale

Description

TSUGAMI B0385C CNC Swiss Lathe, New in 2018.

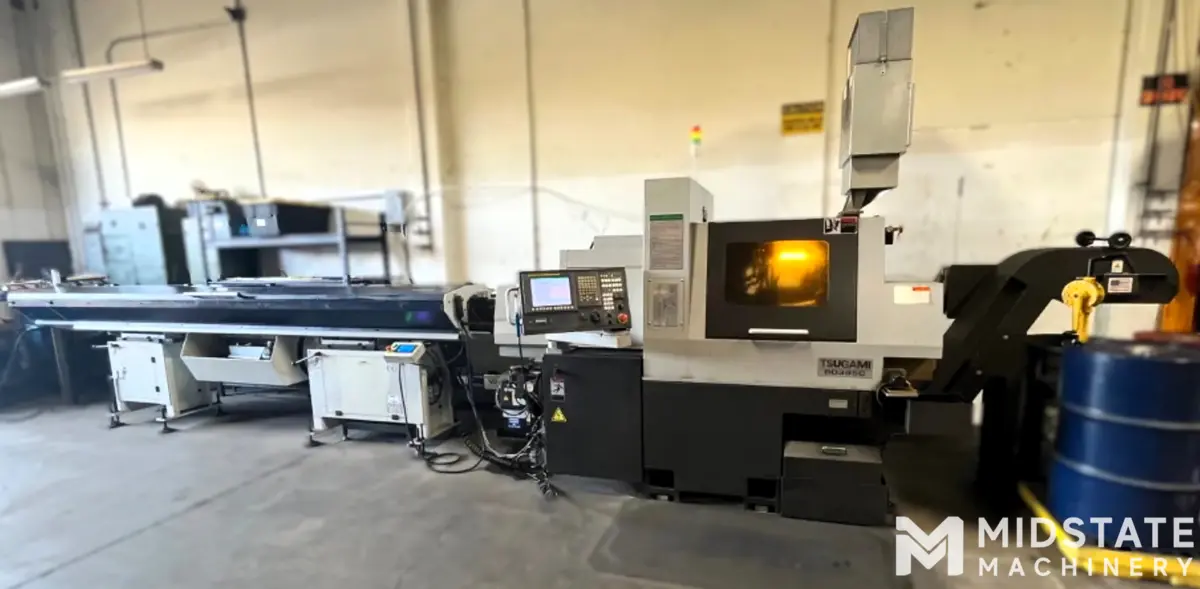

Patriot 338 12ft Barfeed

Capacity38 mm1.4961"
Power3.7 kW5 hp
RPM4,500 RPM4,500 RPM
# Axis55
Swiss, Chucker or Convertible?ChuckerChucker
ControlCNC (Fanuc Oi-TD)CNC (Fanuc Oi-TD)
Dimensions107" x 50" x 76"107" x 50" x 76"
Weight8,4008,400

General Specifications:
Spindle Hole Dia 0.0587"
Max Machining Length 2.362"
Max Drilling Dia (Main) 0.472"
Max Tapping Dia (Main) M12
Max Chucking Dia (Sub) 1.49"
Max Drilling Dia (Sub) 0.472"
Max Tapping Dia (Sub) M12
Max Cross Drilling Dia 0.314"
Max Cross Tapping Dia M6
Tool Spindle Slot Cutter Dia 1.771"
Power (Main) 7.4 hp
Power (Sub) 5 hp
# Axis 5
RPM (Main) 4,500 RPM
RPM (Sub) 7,000 RPM
RPM (Rotary Tool) 6,000 RPM

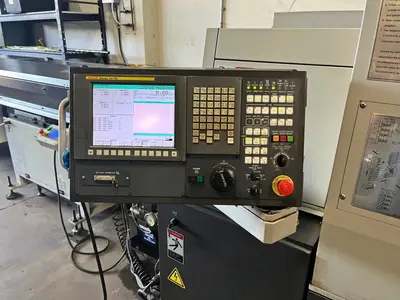

Control CNC (FANUC OI-TD)
Dimensions 107.08" X 50.39" X 75.98"
Weight 8,377 lb

5-Axis
Tool spindle (6000 rpm)

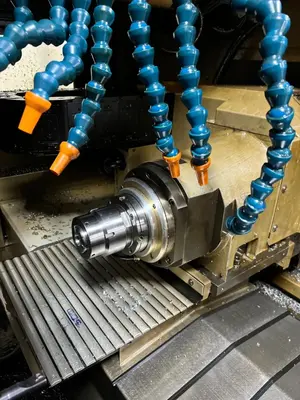

Sub-spindle
Bar feeder

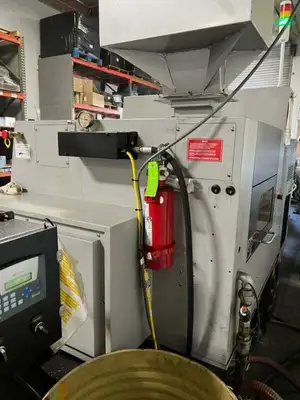

Fire system
High-pressure coolant pump (2000 psi)
Used only oil for coolant

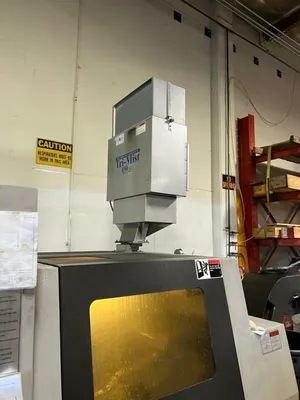

HEPA filter mist collection
Spindle cooling unit
Chip conveyor
Liners & tooling included
