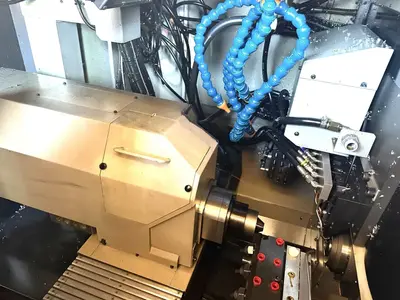

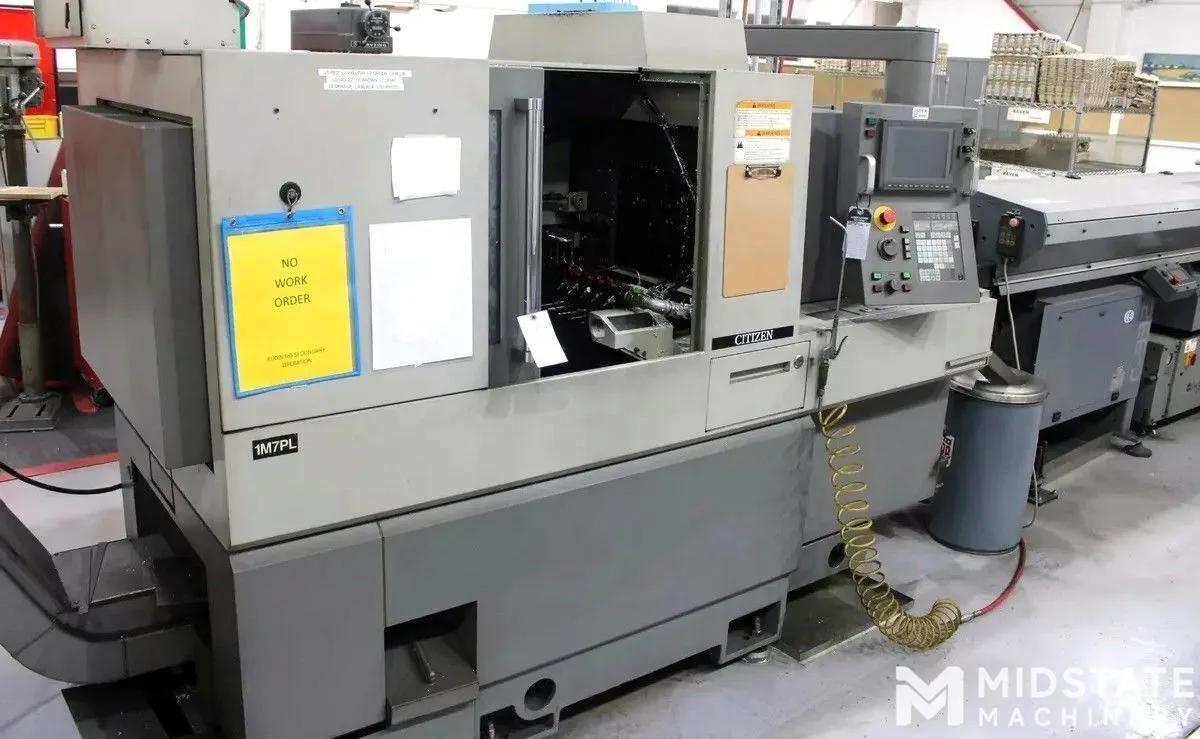

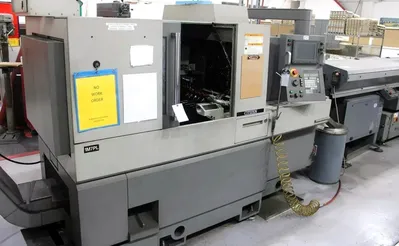

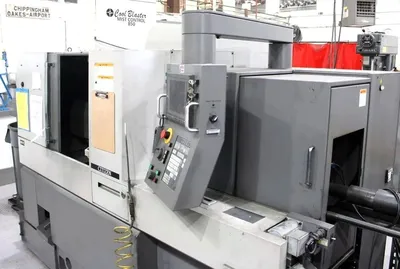

CITIZEN A32 VIIPL CNC Swiss Lathe, New in 2008

General Specifications:

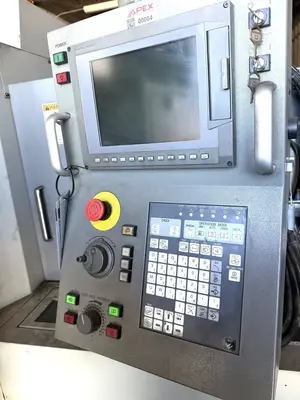

Control Citizen Cincom (Mitsubishi Meldas) CNC Control
Maximum Machining Diameter 32mm
Maximum Machining Length 320mm
Main Spindle Speeds 8000 Max RPM
Back Spindle Speeds 8000 Max RPM
Rotary Tool Speeds 5000 Max RPM
Back Spindle Max Chucking Diameter 32mm

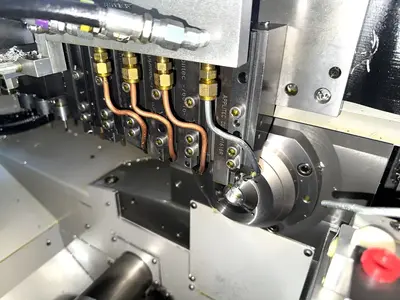

Turning Tools 10 Turning Tool Stations (6 Static, 4 Live)
Rotary (Live) Tools 4 Live Tool Stations
Front Endworking Tools 4 Stations
Back Endworking Tools 9 Total Stations (4 + 5)
Rapid Traverse (X/Y/Z) (45m/min X2,Y1,Z1,Z2) (32m/min X1)
Main Spindle Drive 7.5 KW
Back Spindle Drive 3.7 KW
Rotary Tool Drive 1 KW
Cutting Tool Shank/Sleeve Size 24.5mm
Main Spindle Indexing C-Axis
Sub-Spindle Indexing C-Axis
Equipped With:

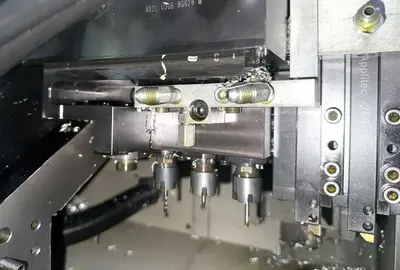

Cincom (Mitsubishi Meldas) CNC Control, C-axis on Main and Sub-Spindles, (4) Live Tool Holders, 4

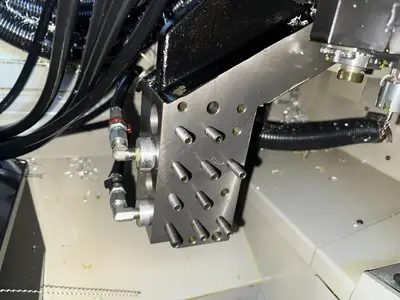

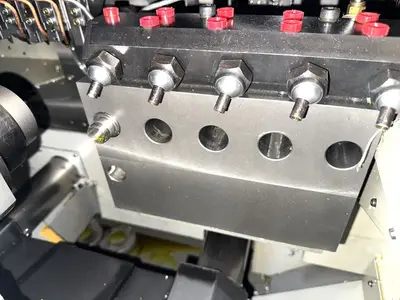

Position Endworking Tool Block on Main-Slide, 5 Position Static Endworking Tool Block, Long Parts

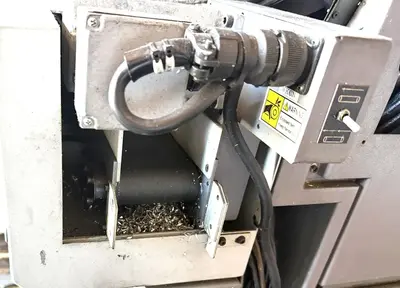

Attachment, MistBuster Mist Collector, Chip Conveyor, CoolBlaster HD High Pressure Coolant

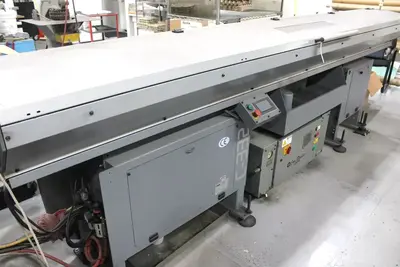

System, Edge C332 Magazine Bar Feed ,
Electrics:
220 Volt 3 Phase
Approximate Machine Dimensions: 104.00"L x 53.00"W x 91.00"H
Approximate Weight: 7700.00 lbs.
