Hurco VMX-64i Vertical Machining Center, New in 2018
Have one to sell?
ConditionUsed
1 available
Hurco VMX-64i Vertical Machining Center, New in 2018
Low Hours
General Specifications:
X-Axis Travel: 64″
Y-Axis Travel: 34″
Z-Axis Travel: 30″
Table Size (L x W): 66″ x 35″
Maximum Weight on Table: 6,000 lbs
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40/Big Plus
Spindle Power: 24 hp
Tool Changer: 30 ATC
Machine Weight: 35,000 lbs
Dimensions: 249.5″ x 177.0″ x 131.3″
Hours as of 5/14/26
Machine "On" Time: 8,919 Hours
Spindle "On" Time: 4,421 Hours

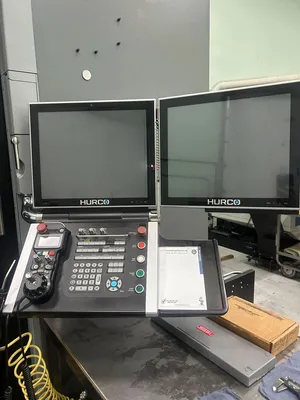

Hurco Max CNC Control
Barnes Chip Conveyor System
Spindle Chiller
Duel Mist Collectors
High Pressure Thru-Spindle Coolant
Glass Scales (not installed on one axis - TBD)
Renishaw Part Probe
Renishaw Tool Probe
(2) Kurt Vices

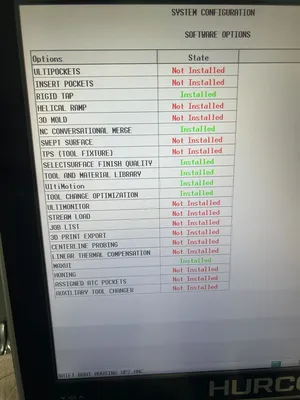

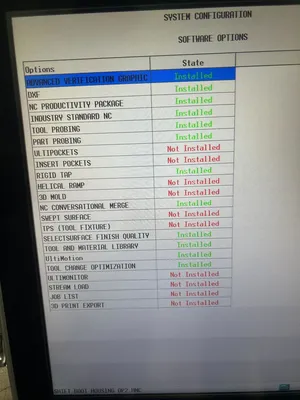

Software Options:
-Advanced Verification Graphics
-DXF
-NC Productivity
-Industry Standard NC
-Tool/Part Probing
-Rigid Tapping
-NC Conversational Merge
-Select Surface Finish Quality
-Tool and Material Library
-Ultimotion
-Tool Change Optimization
-MAXUI
