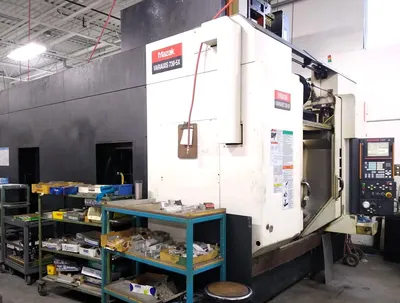

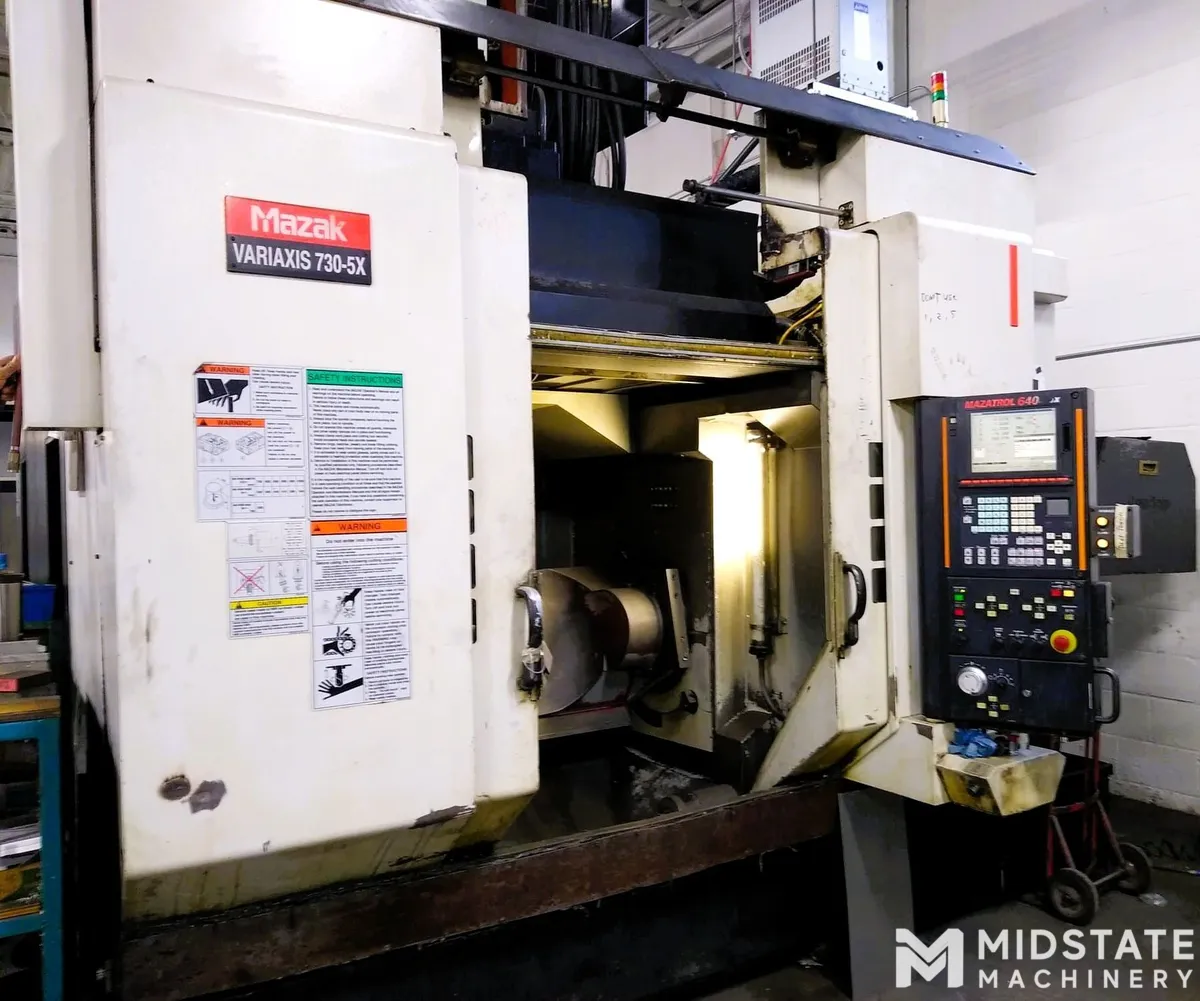

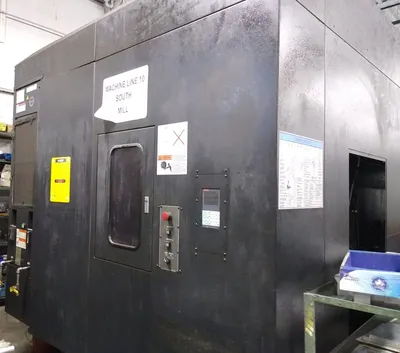

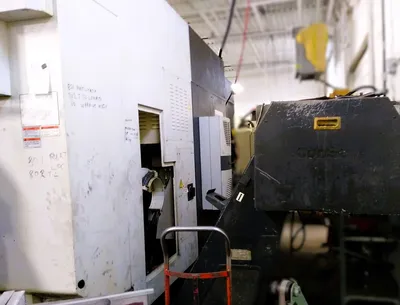

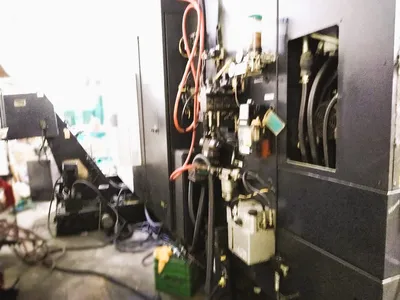

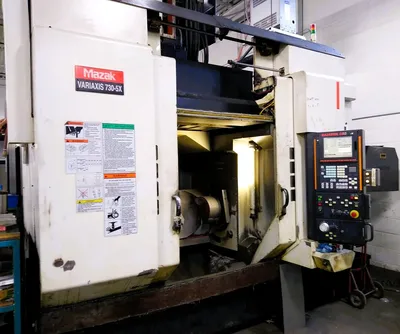

MAZAK VARIAXIS 730-5X 5-Axis Vertical Machining Center, New in 2004

MAZAK VARIAXIS 730-5X 5-Axis Vertical Machining Center, New in 2004

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VARIAXIS 730-5X
Year:
2004
Stock #:
4959
Status:
For Sale

Description

MAZAK VARIAXIS 730-5X 5-Axis Vertical Machining Center, New in 2004.

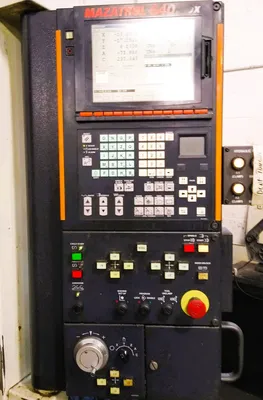

Mazatrol Fusion 640M Control.
Chip Conveyor.
5-Axis

X-Axis28.7"728.98 mm
Y-Axis33.4"848.36 mm
Z-Axis22"558.8 mm
Power40 hp29.8 kW
RPM10,000 RPM10,000 RPM
# ATC4040
Taper#50#50
Table-W19.69"500.13 mm
Table-L19.69"500.13 mm
# Axis55
ControlCNC (Mazatrol)CNC (Mazatrol)

General Specifications:
Table Size: 24.8″ x 19.66″
X-Axis Travels: 28.7″
Y-Axis Travels: 33.4″
Z-Axis Travels: 22.0″
A-Axis Travels
(.001 Degree Positioning Only): 120 ~ + 30 Deg
C-Axis Travels: +/- 360 Deg
Distance Spindle Nose/Table Top: 9.0″ ~ 31.1″
Maximum Table Load: 1,102 LBS
Maximum Workpiece Size: 39.37″ x 13.38″
Maximum Workpiece Heigh: 19.6″
Spindle Nose: #50
Spindle Horsepower (Cont/30 Min): 40
Spindle RPM: 10,000 RPM

Mazatrol Fusion 640M Control
Chip Conveyor
5-Axis
