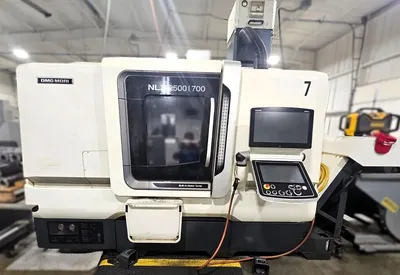

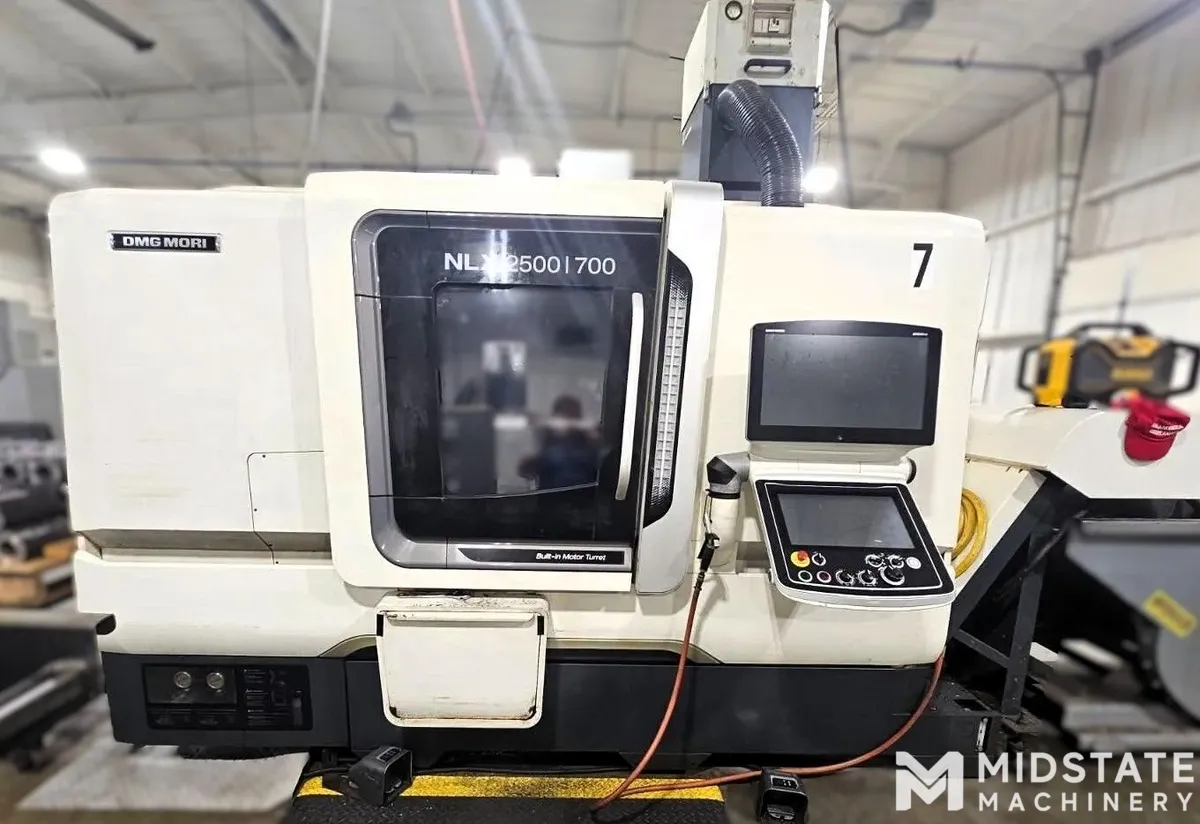

DMG MORI NLX 2500SY 5-Axis CNC Lathe, New in 2017
Have one to sell?
ConditionUsed
1 available
DMG MORI NLX 2500SY 5-Axis CNC Lathe, New in 2017.
14" Swing.
27/7: Machining Length.
10" Chuck.
Live Tooling.
Y-Axis.
Sub Spindle.
General Specifications:
Swing 14"
Machining Length 27.7"
Chuck Size 10"
Bar Capacity 3"
Power 20 hp
Max RPM 4,000 RPM
Turning Dia 14"
Tailstock No
Live Tooling Yes
Sub Spindle Yes
Y-Axis Yes
Control CNC (Celos M730UM MAPPS V)
Dimensions 174" x 93" x 87"
Weight 17,000 Lbs.
DMG MORI NLX 2500SY 5-Axis CNC Lathe, New in 2017.
14" Swing.
27/7: Machining Length.
10" Chuck.
Live Tooling.
Y-Axis.
Sub Spindle.
Imperial
| # Axis | 5 |
| Swing | 14" |
| Machining Length | 27.7" |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 20 hp |
| Max RPM | 4,000 RPM |
| Turning Dia | 14" |
| Tailstock | No |
| Control | CNC (Mori M730UM) |
| Dimensions | 174" x 93" x 87" |
| Weight | 17000lbs |
General Specifications:
Swing 14"
Machining Length 27.7"
Chuck Size 10"
Bar Capacity 3"
Power 20 hp
Max RPM 4,000 RPM
Turning Dia 14"
Tailstock No
Live Tooling Yes
Sub Spindle Yes
Y-Axis Yes
Control CNC (Celos M730UM MAPPS V)
Dimensions 174" x 93" x 87"
Weight 17,000 Lbs.
