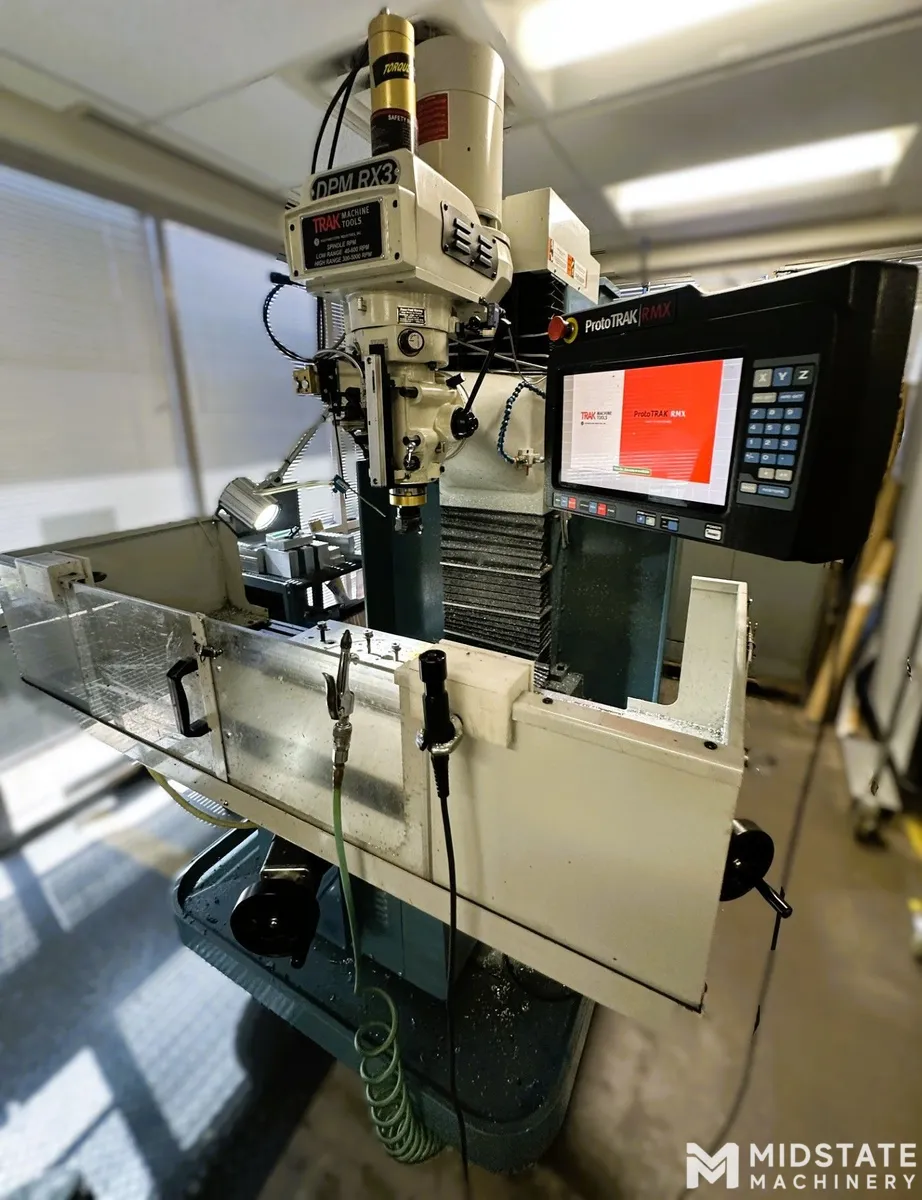

TRAK DPM RX3 CNC Bed Mill 50" x 10"
Have one to sell?
ConditionUsed
1 available
TRAK DPM RX3 CNC Bed Mill 50" x 10"
5HP Continuous Spindle Motor 40 Taper.
Manual 2-Axis CNC, 3-Axis CNC with Handwheels
General Specifications:

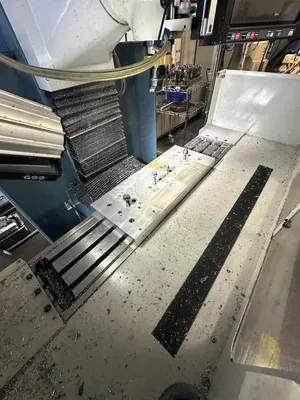

Table size: 10" x 50"
T-slots (number x width x pitch): 3 x .63" x 2.48"
Table travels: 31.5" x 17" x 25.5"
Quill diameter: 3-15/16"
Maximum quill travel: 5"
Spindle taper: 40 taper

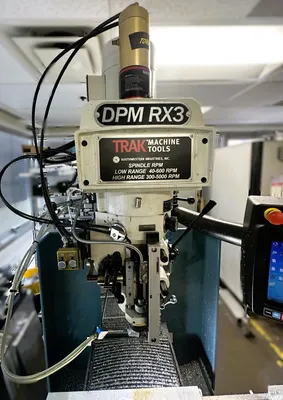

Spindle speed range: 40-600, 300-5000 RPM
Spindle motor: 5 HP
Power requirements: 200/240V, 3 PH
Maximum weight of workpiece: 1,320 LBS
Table height: 36.75"
Maximum spindle nose to table: 25.81"
Rapid traverse x,y,z: 250 IPM
Drilling maximum capacity: 1"
Milling maximum capacity: 5 IPM
Tapping maximum capacity: 1-8"
Machine dimensions: 76.63" x 73.5" x 96.75"
Machine weight: 4,100 LBS
Standard Features:

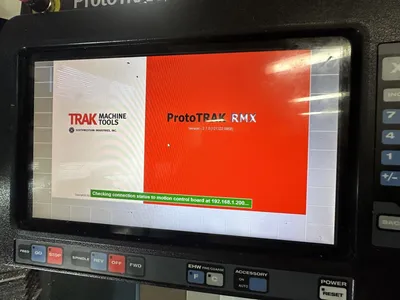

ProtoTRAK RMX CNC integrated into the machine at the factory
Solid ram moves along the column providing mass for heavy cuts
Generous Z-axis CNC travel
Strong and rigid
Efficient for any job: manual, 2-axis CNC or 3-axis CNC
Standard electronic head for programmable spindle speeds and tapping
Precision ground ballscrews installed in the table, saddle and column

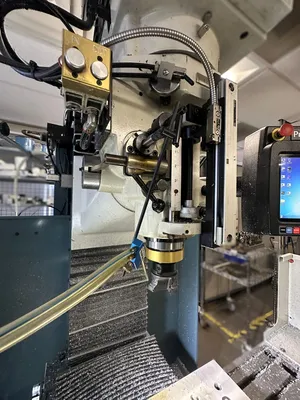

Manual quill with integrated quill and ram encoders
Wide way surfaces are hardened and ground, slideways are Turcite® coated
Real handwheels so you can work manually
