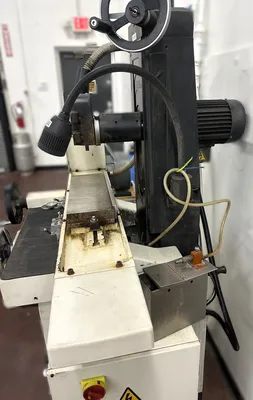

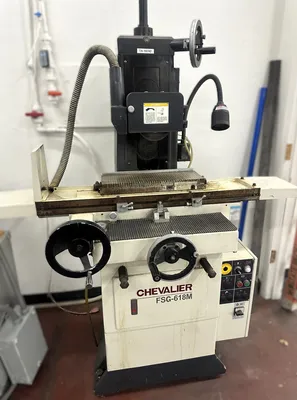

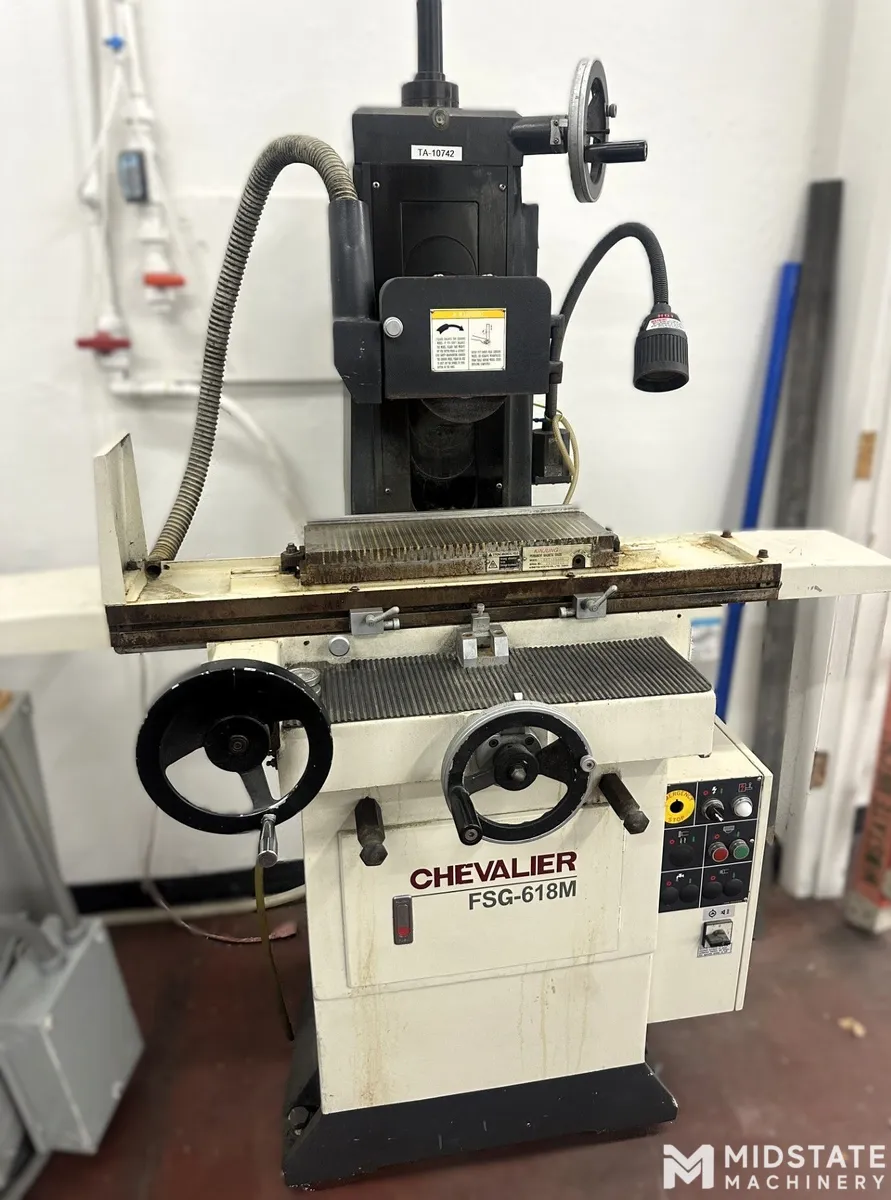

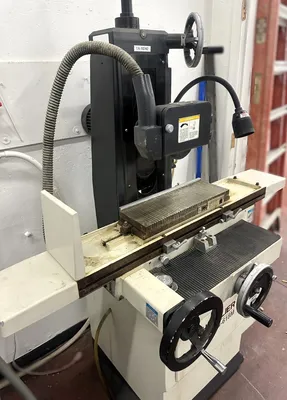

CHEVALIER FSG-618M Manual Surface Grinder 6" x 18"

General Specifications:
Table Size 5 3/4" x 18"
Maximum Grinding Length Longitudinal 18"
Maximum Grinding Width Crosswise 6"
Max Dist fr Table Surface to Spindle Centerline 18"
Longitudinal Movement of Table 19 3/4"
Maximum Travel, Manual 19"
Table Speed, Infinitely variable 16-82fpm
Max Manual Transverse Travel 7"
Cross Transverse Travel: Handwheel per revolution 0.100"
Handwheel per graduation 0.0005"
Wheelhead Vertical Infeed: Handwheel per revolution 0.05"
Handwheel per graduation 0.0001"
Grinding Spindle Speed 60HZ 3450rpm; 50Hz 2850rpm
Rated Power 2.2HP
Packing Dimensions 41"x47"x83"
Net Weight 1498 lbs
