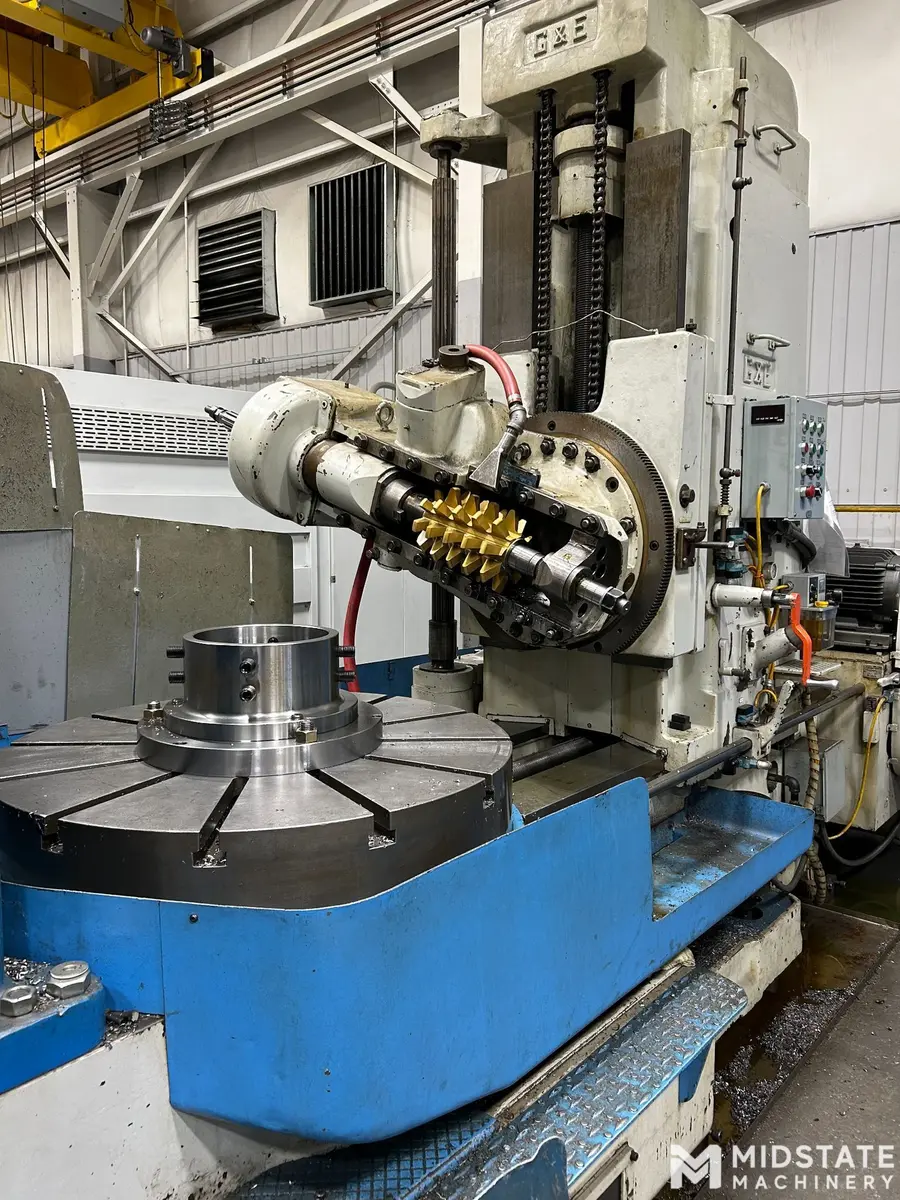

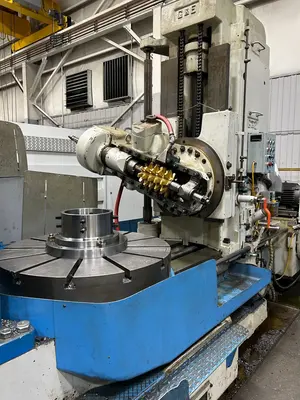

GOULD & EBERHARDT 72H Gear Hobber

Maximum Workpiece Diameter 90"
Horz/Vert Vert
Maximum Diametral Pitch 1.5 dp
Maximum Hob Diameter 10.75"
Hob Speed 100 RPM
Table Diameter 40"
Control Manufacturer Conventional

Maximum DP in Steel: 1.5 DP
Face Capacity Spur Pinions and Gears: 24"
Face Capacity 45 Degree Helical Gears: 18"
Maximum Diameter Spur Gear With Support: 48"
Maximum Diameter Spur Gear Without Support: 90"
Maximum Diameter Helical Gear w/o Sup (45 Degrees): 72"
Minimum Centers Work & Hob Arbors: 4"
Maximum Diameter Hob: 10.75"
Diameter of Work Table: 40"
Diameter of Index Worm Gear: 48"
Index Range Including Primes: 15 - 100
Index Range Excluding Primes: 100-400
Number of Hob Speeds: 14
Hob Speed Ranges: 6-100 RPM
Drive Pulley: 600 RPM
Number of Feeds: 12
Feed Range: .03 - .200"
Motor HP Requirements, Machine: 15 HP
Motor HP Requirements, Traverse: 5 HP
Motor HP Requirements, Coolant: 3/4 HP
