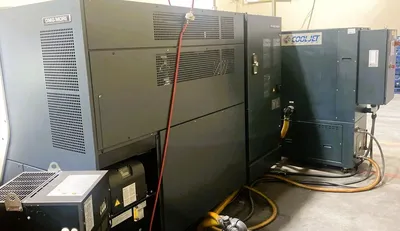

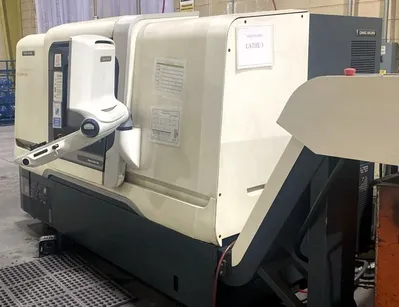

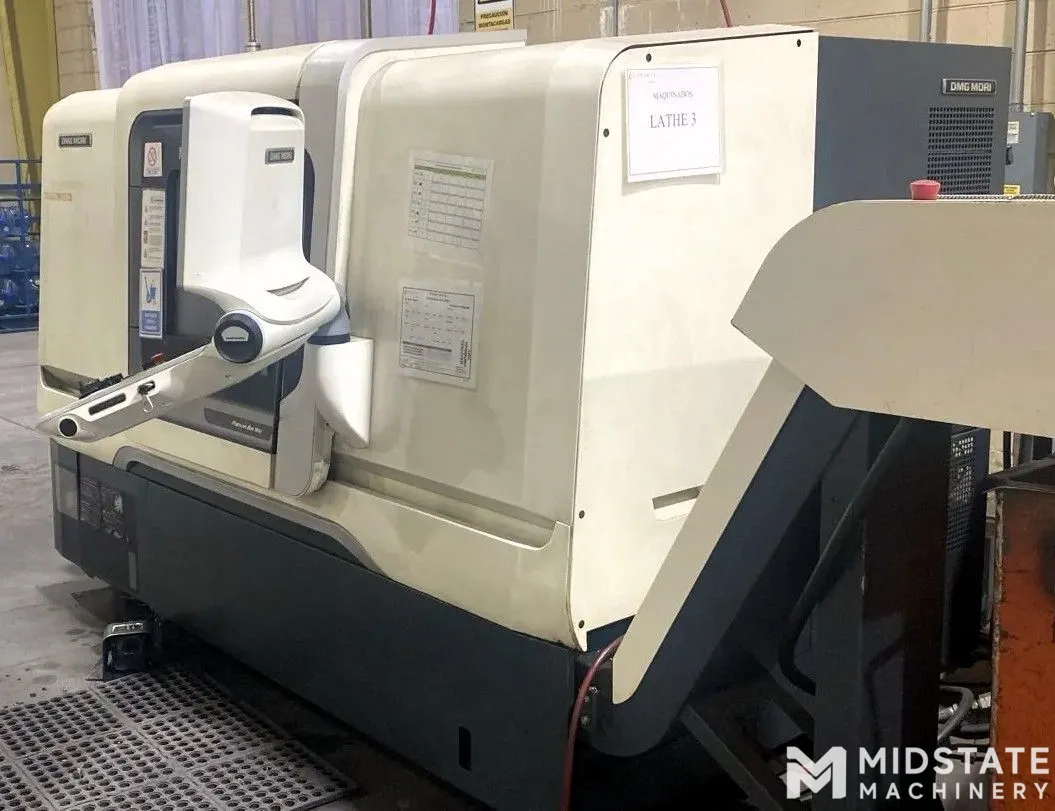

DMG MORI NLX 2500T/700 CNC Turning Center, New in 2020.

General Specifications:
- Max turning length: 708 mm
- Max turning diameter: Ø 366 mm
- Bar capacity: Ø 105 mm (left spindle)
- Max spindle speed (left): 5,000 rpm (standard) / 3,000 rpm high‑torque
- Max spindle speed (right, if equipped): 7,000 rpm / 5,000 rpm
Axis Travels
- X‑axis: 10.2 in (≈259 mm)
- Z‑axis: 53 in (≈1,346 mm) — platform max; 700‑mm version uses ~708 mm effective turning length

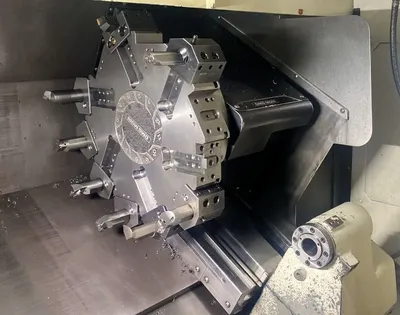

Turret
- BMT (Built‑in Motor Turret)

- High‑precision quick‑change turret (optional)
Construction & Thermal Control
- High‑rigidity slideways on X/Y/Z for damping and stability
- Thermal displacement control for accuracy during long cycles
Control Options
- MAPPS (Mitsubishi)
- CELOS / ERGOline X (2nd Gen)

What the NLX2500/700 Is Best For
- Medium‑diameter, medium‑length shaft work
- High‑rigidity turning
- Automotive, hydraulic, and general industrial components
- Shops needing a compact but powerful turning center with live tooling
