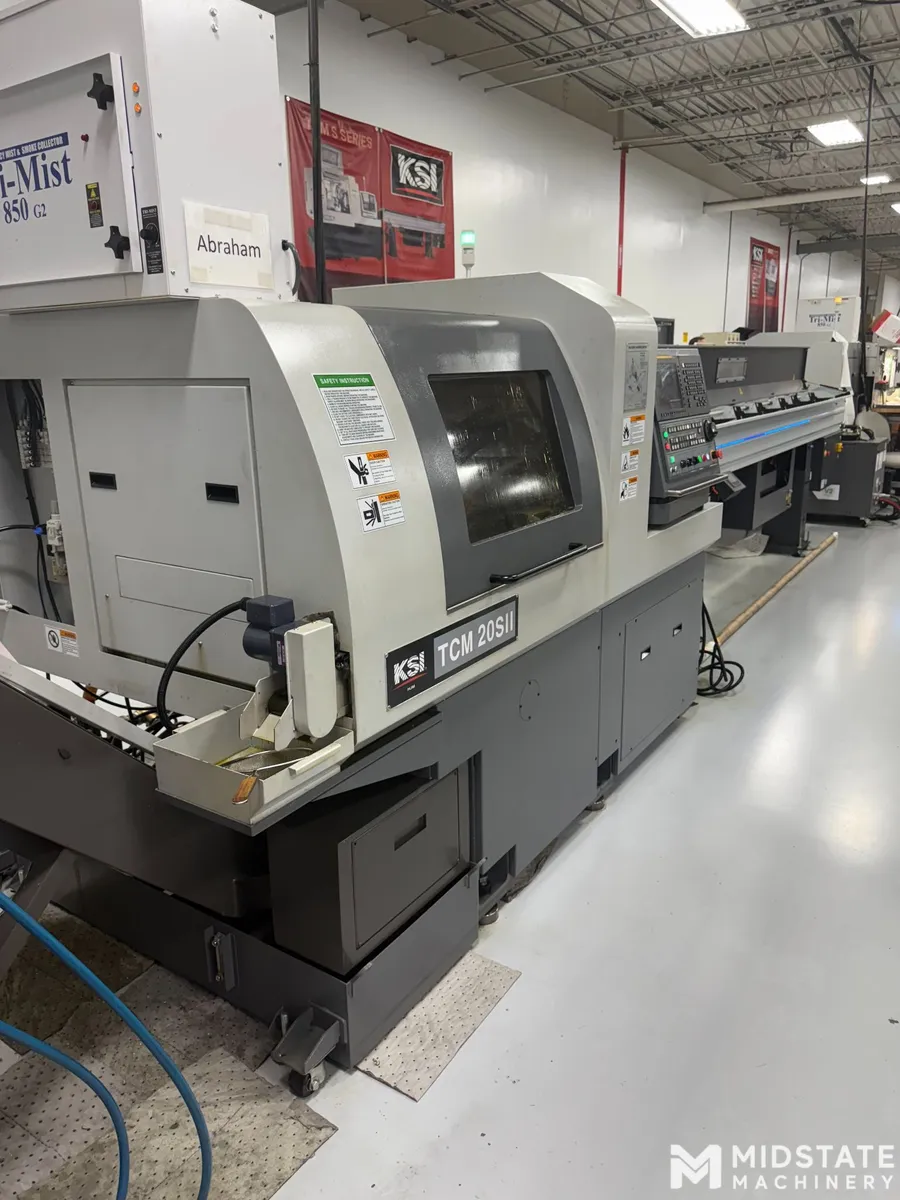

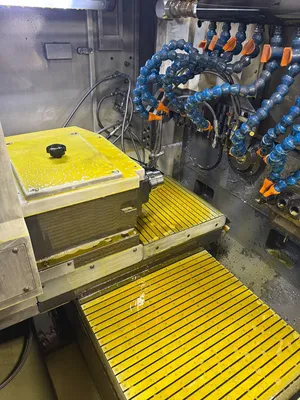

KSI TCM 20SII CNC Swiss Lathe, New in 2022

General Specifications:
Main Spindle Bore Diameter: 30mm (1.181")
Main Spindle Horsepower: 5HP
Max Spindle Speed: 10,000 RPM
Main Spindle Positioning C Axis: .001 Degrees
Sub Spindle Bore Diameter: 20mm (.787")
Sub Spindle Speed: 8,000 RPM
Sub Spindle Positioning C Axis: .001 Degrees
Sub Spindle Horsepower: 3HP
Maximum Turning Diameter: 20mm (.787")
Z1-Axis Stroke: 300 mm (11.81")
X1-Axis Stroke: 70 mm (2.75")
Y1-Axis Stroke: 398.5 mm (15.6")
X2-Axis Stroke: 403 mm (15.8")
Number of Tool Stations: 29 Total
Main Side: 19 Total
Ballscrew Diameter: 25 mm (1")
Ballscrew Lead: 10mm with S/W limit, and mechanical stop
Main Spindle Drill/Tap: 10mm / M8 (ER16)
Cross Spindle Drill/Tap: 8mm / M6 (ER16)
Back Working Drill/Tap: 10mm / M8 (ER16)
Main Spindle Turning Tools: 6 Standard (Fixed)
Stick Tool Shank Size: 12mm (16mm Option)
Main Spindle Cross Live Tools: 5 Standard (Live)
Y Axis Tool Block: 5 Standard (Fixed 22mm)
Headstock Collet Size: TF25
Guide Bushing Size: TD25 (16°)
Sub Spindle Collet Size: TF25
Face Tools (Sub Spindle T23): 1 Standard (Fixed)
Live Face Tools (Back End): 3 Standard (Live) T32 optional
Fixed Face Tools (Back End): 2 Standard (Fixed) T33,34,35 optional
Total Fixed Tools: 18
Total Live Tools: 10
Total Tools: 29
Cross/Back End Working Spindle Speed 5,000 RPM

Machine Dimensions: 107" x 59" x 46"
Machine Weight: 7, 716 lbs
