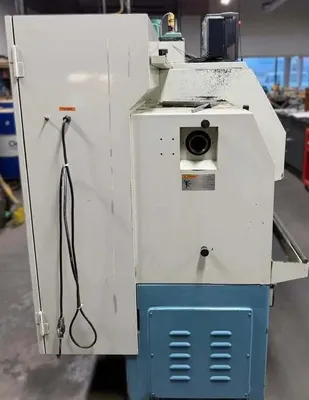

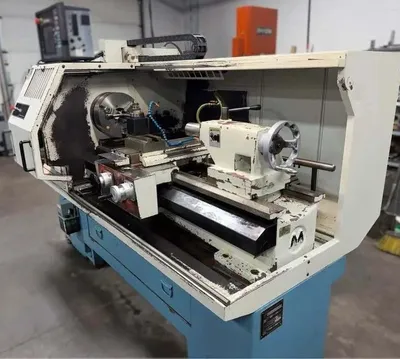

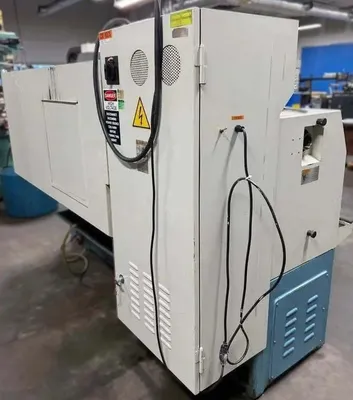

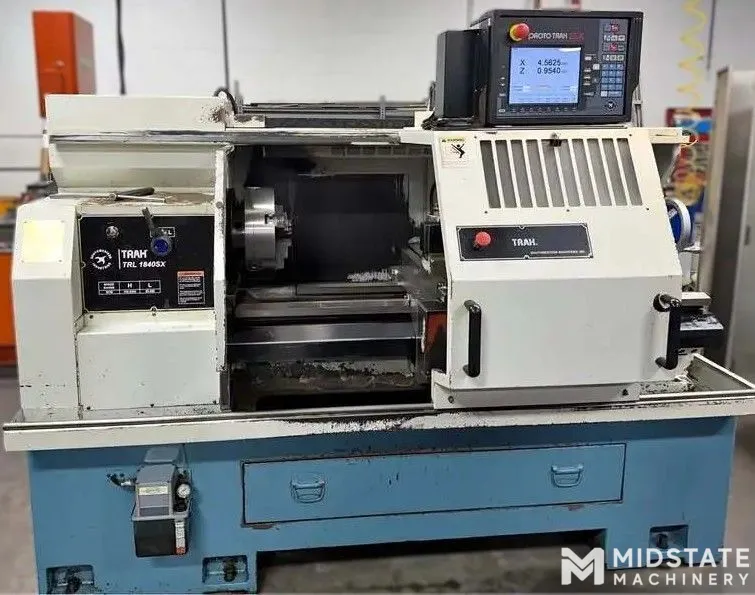

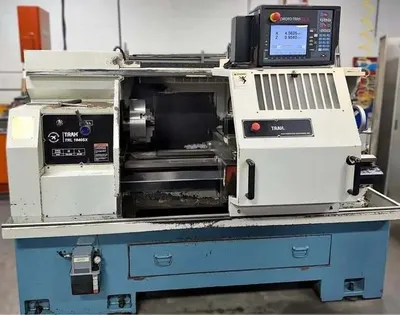

Southwestern Industries Trak TRL 1840 SX CNC Lathe, New in 2006
Have one to sell?
ConditionUsed
1 available
Southwestern Industries Trak TRL 1840 SX CNC Lathe, New in 2006.
General Specifications:
size 10" Chuck
Swing 18.5"
Machining Length 40.25"
# Axis 2
Chuck Size 10"
Turning Dia 9"
Tailstock Yes
Live Tooling No
Sub Spindle No
Swing Over Ways: 18.5"
Swing Over Cross Slide: 9.0"
Max Center Distance: 40.2"
Center Height: 9.0"
Cross Slide Travel: 9.0"
Hole Through Spindle: 2.36"
Spindle Nose: D1-6 Camlock
Spindle Speeds: Programmable Variable in 3 Ranges 50-270 / 150-850 / 450 - 2500 RPM
Tailstock Quill Travel: 6.3" Manual
Tailstock Quill Diameter: 2.95"
Tailstock Quill Taper: #5MT
Spindle Drive: 10 HP
Proto TRAK SLX Control
3 Jaw Chuck
Southwestern Industries Trak TRL 1840 SX CNC Lathe, New in 2006.
Imperial
| Swing | 18.5" |
| Machining Length | 40" |
| # Axis | 2 |
| Chuck Size | 10" |
| Power | 10 hp |
| Max RPM | 2,500 RPM |
| Turning Dia | 9" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC (Proto TRAK SLX) |
General Specifications:
size 10" Chuck
Swing 18.5"
Machining Length 40.25"
# Axis 2
Chuck Size 10"
Turning Dia 9"
Tailstock Yes
Live Tooling No
Sub Spindle No
Swing Over Ways: 18.5"
Swing Over Cross Slide: 9.0"
Max Center Distance: 40.2"
Center Height: 9.0"
Cross Slide Travel: 9.0"
Hole Through Spindle: 2.36"
Spindle Nose: D1-6 Camlock
Spindle Speeds: Programmable Variable in 3 Ranges 50-270 / 150-850 / 450 - 2500 RPM
Tailstock Quill Travel: 6.3" Manual
Tailstock Quill Diameter: 2.95"
Tailstock Quill Taper: #5MT
Spindle Drive: 10 HP
Proto TRAK SLX Control
3 Jaw Chuck
