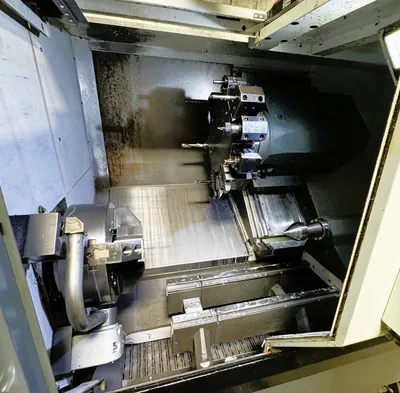

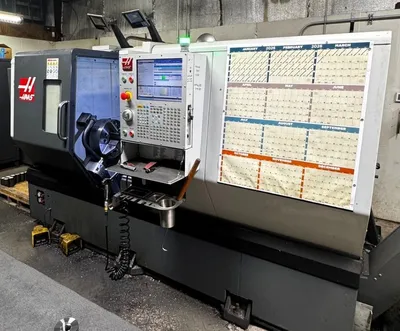

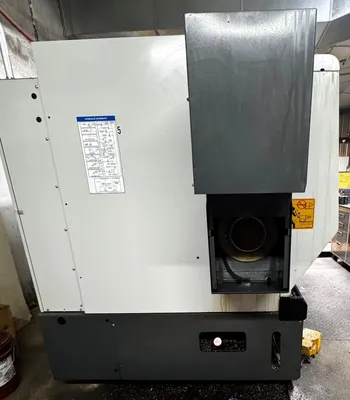

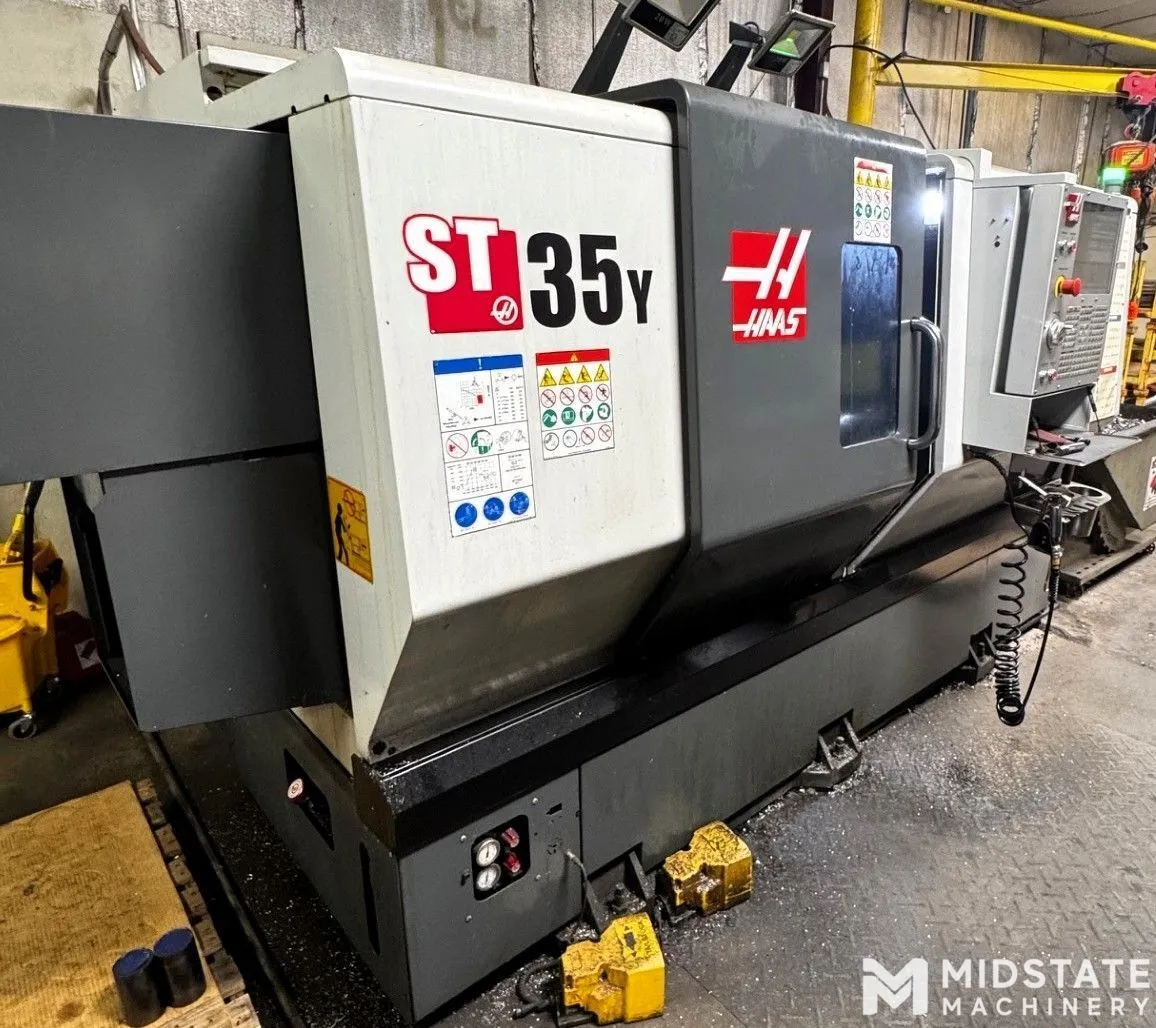

HAAS ST-35Y CNC Turning Center, New in 2019
Have one to sell?
ConditionUsed
1 available
HAAS ST-35Y CNC Turning Center, New in 2019.
Live Tooling.
Tool Presetter.
Hi-Pressure Coolant.
Chip Conveyor.
General Specifications:
Main Spindle Chuck 14"
Maximum Swing 31.75"
Maximum Cutting Diameter 13.75"
Maximum Machining Length 23"
Maximum Bar Size 4"
Main Spindle HP 40 HP
Main Spindle RPM 3200 RPM
Main Spindle Nose A2-8
Number of Tool Stations 12
Milling Spindle RPM 4000 RPM
X Axis Travel 12.5"
Y Axis Travel +/- 2
Z Axis Travel 23"
Floor Space 171" x 90" x 98"
Machine Weight 14,300 lbs.
12 ATC
BMT 65 Spindle Taper
Chip Conveyor
Hi-Pressure Coolant
Live Tooling
Tool Presetter
