TRAK 1630HS-SX 2-AXIS CNC/Manual Flat Bed Lathe, New in 2009
Have one to sell?
ConditionUsed
1 available

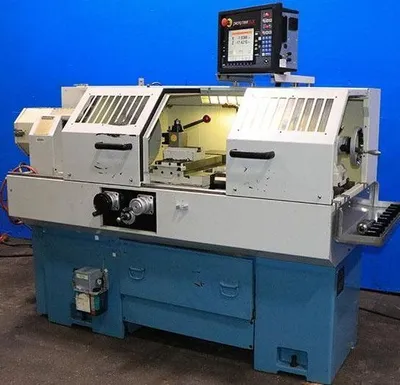

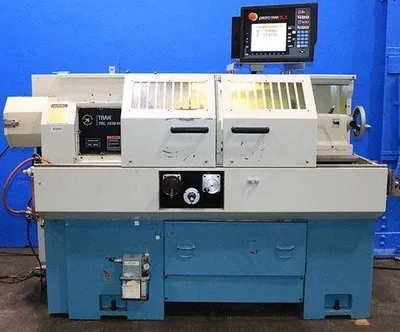

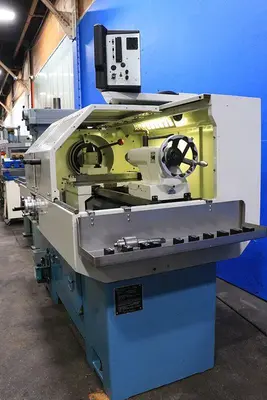

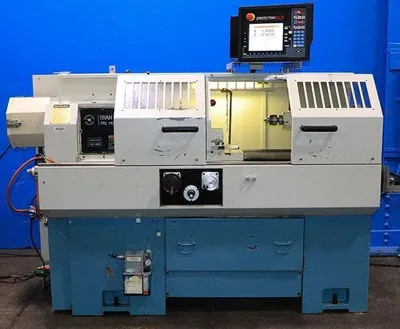

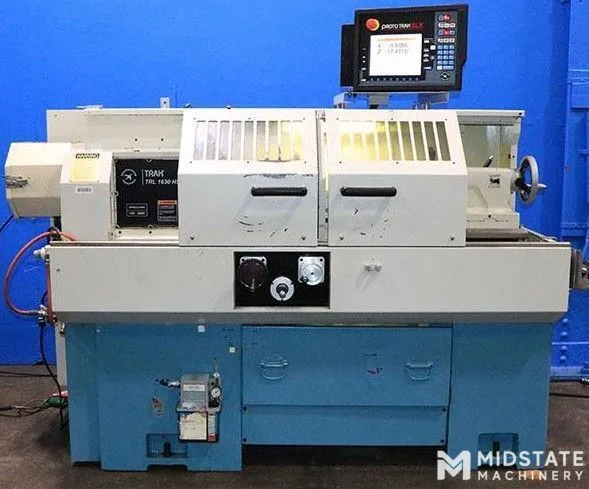

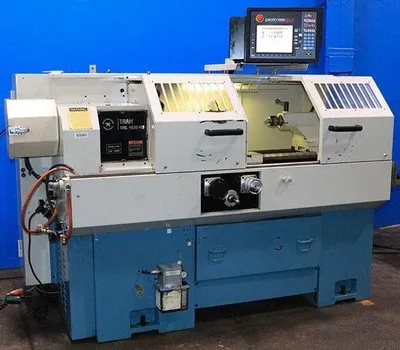

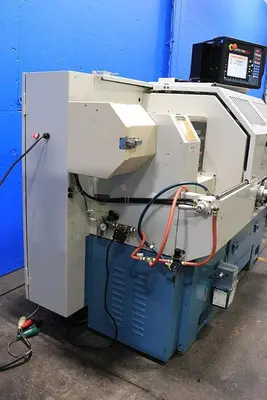

16" X 30" TRAK 1630HS-SX 2-AXIS CNC/Manual Flat Bed Lathe, New in 2009
SPECIFICATIONS:
HEIGHT OF CENTERS .......................... 8"
SWING OVER BED ............................. 16"
SWING OVER CROSS SLIDE ..................... 8.6"
SWING OVER SADDLE WINGS .................... 16"
MAX DISTANCE BETWEEN CENTERS ............... 30"
CROSS SLIDE TRAVEL (X) ..................... 8.6"
LONGITUDINAL TRAVEL (Z) .................... 30"
SPINDLE TAPER, CAMLOCK, SIZE ............... A2-4

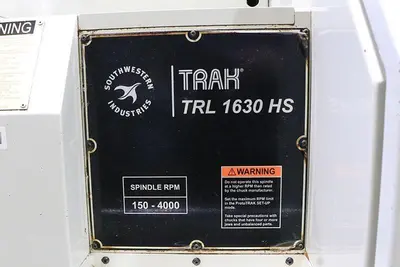

SPINDLE SPEED RANGE INF VAR ................ 150 - 4000 RPM
SPINDLE BORE ............................... 1.57"
TAPER IN HEADSTOCK SPINDLE ................. #5 MT
TAILSTOCK QUILL TRAVEL ..................... 6.3"
TAILSTOCK QUILL DIAMETER ................... 2.36"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 2500 LBS
APPROX DIMENSIONS .......................... 82" X 46" X 67"
EQUIPPED WITH:

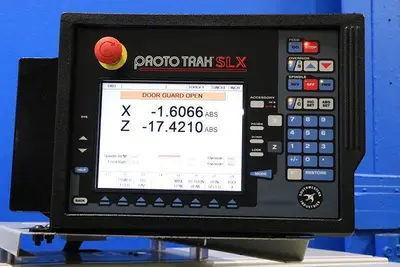

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC CONTROL
- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- SERVO MOTORS & GROUND BALLSCREWS
- AC SPINDLE DRIVE
- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS

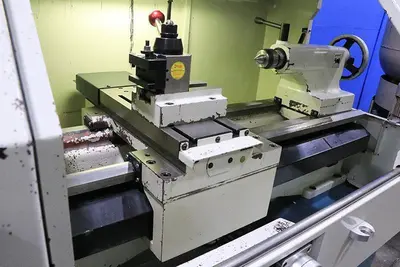

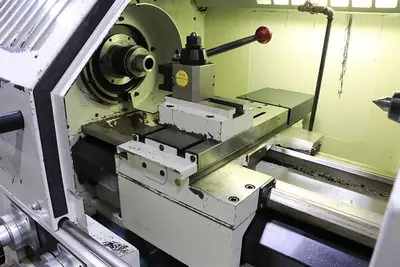

- DORIAN QUICK CHANGE TOOLPOST & HOLDERS

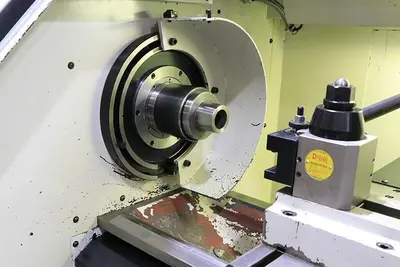

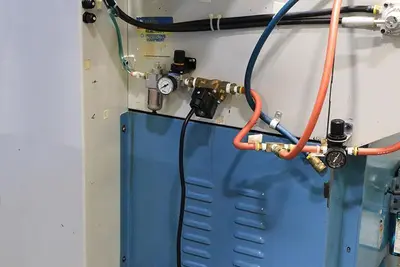

- DUNHAM AIR ACTUATED COLLET CLOSER AND NOSEPIECE

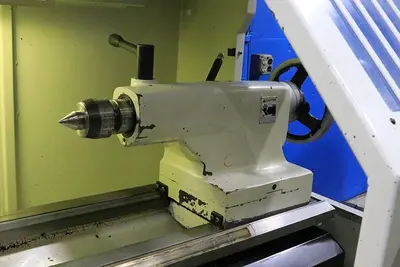

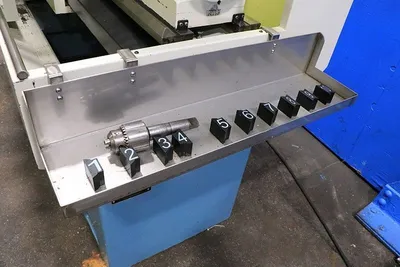

- JACOBS DRILL CHUCK FOR TAILSTOCK

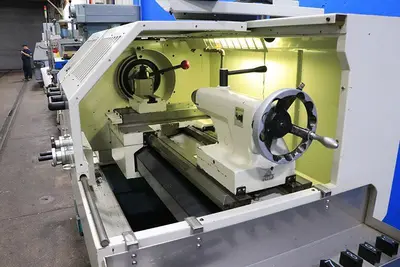

- LIVE CENTER FOR TAILSTOCK
- HARDENED & GROUND BED WAYS

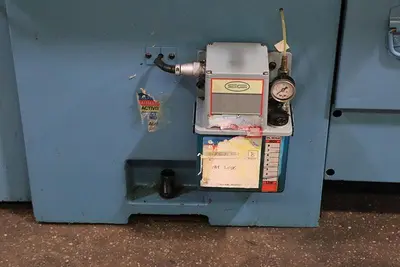

- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- COOLANT SYSTEM
- ENCLOSURE
- 7.5 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS
