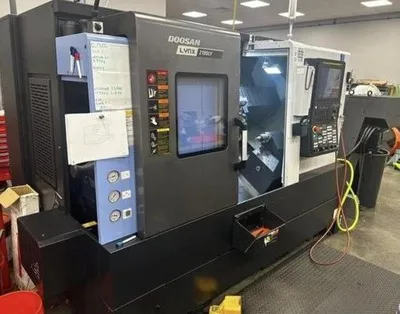

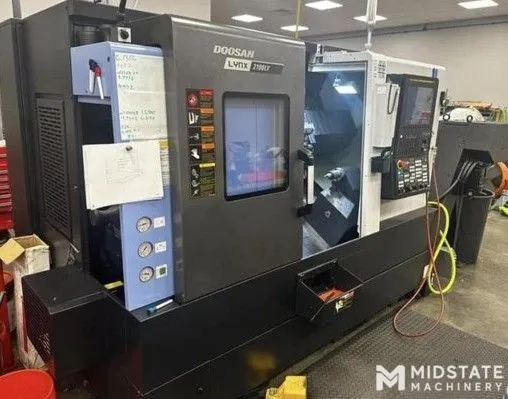

DOOSAN LYNX 2100LYA CNC Turning Center, New in 2022

General Specifications:
Travels-
Rapid Traverse Z-axis 36 m/min (1417 in/min)
Travel Distance X-axis 205 mm (8.1 in)
Travel Distance Y-axis 105±52.5 mm (4.1±2.1 in)
Travel Distance Z-axis 560 mm (22 in)
Rapid Traverse X-axis 30 m/min (1181 in/min)
Rapid Traverse Y-axis 10 m/min (394 in/min)
Spindle-

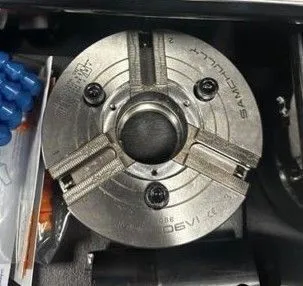

Chuck Size 6 in
Speed 6000 rpm
Power 15 kW (20 Hp)
Torque 127 Nm (93.6 ft-lbs)
Tooling-
Shank BMT-45
Turret Stations 12 Slot
Boring Bar Diameter ⌀32 mm (1.3 in)
Machine Size & Weight-
Length 2880 mm (113.4 in.)
Height 1920 mm (76 in.)
Width 1710 mm (67.5 in.)
Weight 3850 kg (8500 lbs.)
Capacity-
Max Turning Diameter ⌀300 mm (11.8 in)
Max Turning Length 510 mm (20.1 in)
Through Hole Diameter ⌀52 mm (2 in)
Tooling (Milling)-
Rotary Tool Spee 6000 rpm
Rotary Tool Powe 3.7 kW (5 Hp)
Rotary Tool Torque 24 Nm (17.3 ft-lbs)
