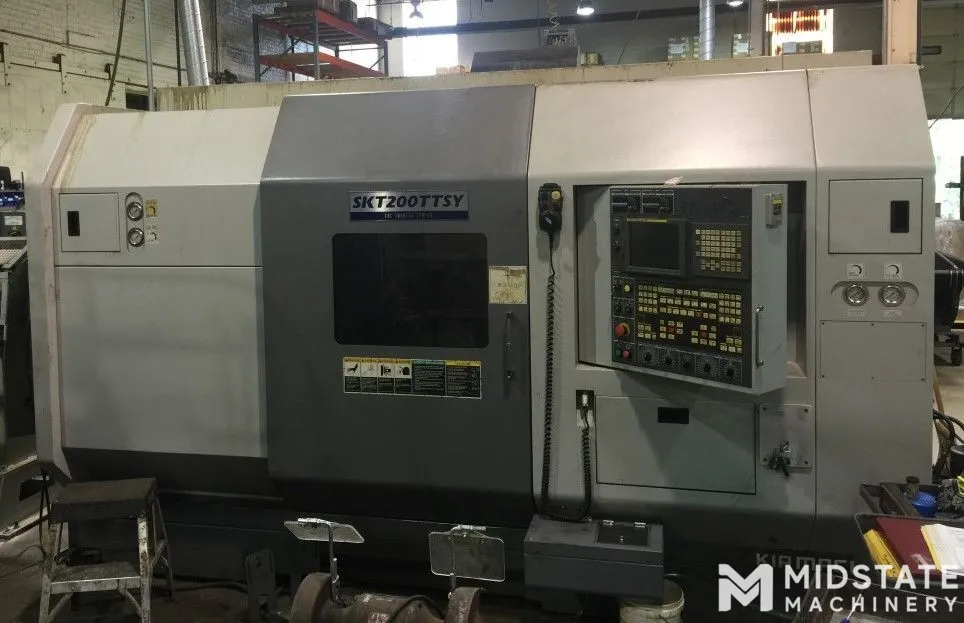

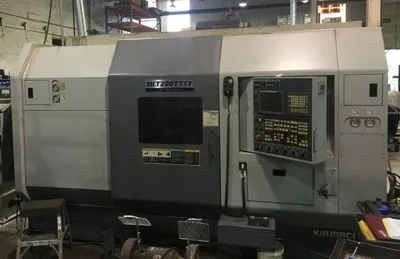

Hyundai Kia SKT-200TTSY CNC Turning Center
Have one to sell?
ConditionUsed
1 available
Hyundai Kia SKT-200TTSY CNC Turning Center
New 2009
Twin Turret, Sub-Spindle, Live Tool, Y-Axis
Swing Over Bed 30.7"
Maximum Swing Over Carriage 27.5"
Maximum Machining Length 35.4"
Turning Diameter 15.4"
Turning Diameter Lower Turret 11.8"
Center Distance 48.42"
Chuck Size 8"
Bar Capacity 2.6"
X-Axis Travel (Upper / Lower) 10.6" / 36.2"
Z-Axis Travel (Upper / Lower) 7.5" / 36.2"
Y-Axis Travel +/- 2.4"
B-Axis Travel (Sub-Spindle) 36.2"
C-Axis Index 0.001 Degrees
Speeds:
Rapid Traverse Rate (X&Z/Y) 945 / 472 IPM
Main Spindle Nose 8” chuck,A2-6
Speed 5,000 RPM
Motor 30 HP
Bore 3.1"
Sub-Spindle 8" chuck, A2-6
Bar Capacity 2.56"
Bore 3.1"
Speed 5,000 RPM
Motor 33.5 HP
C-Axis 0.001 Degree
Travel 36.2"
Live Tools:
Speed 4,000 RPM
Motor 7.5 HP

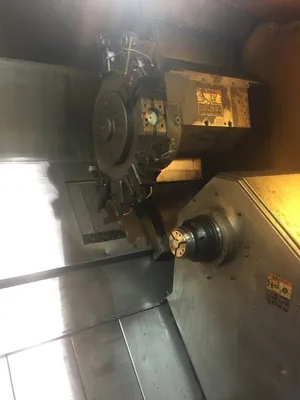

Turrets (Upper / Lower) 12 / 12
General:
Dimensions: 172" x 86" x 101"
Weight: 24.500 Pounds

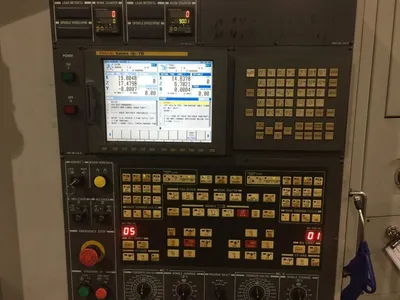

Fanuc 18iTB CNC with 10.4" Color LCD - USB Port
Live Tooling & (Y-Axis on Upper Turret Only)

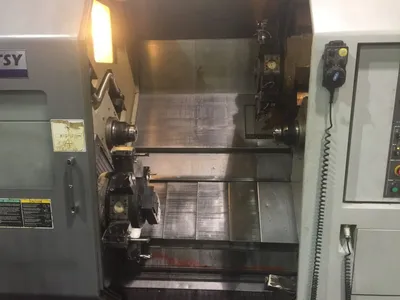

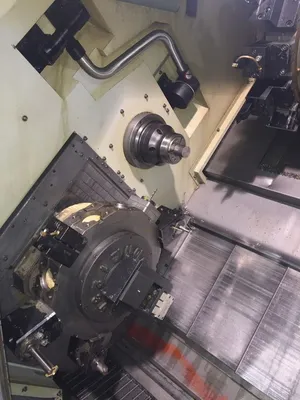

Twin Spindle / Twin Turret
Automatic Tool Pre-Setter for Upper & Lower Turrets
Chip Conveyor (Side Exit Hinge Type)
Assorted Radial and Axial Live Tool Holders
Two (2) Hydraulic Chucks 8" Chucks
(2) Royal Quick Grip Collet Chucks for Main & Sub Spindle
Approx.(20) Royal Quick Grip 65 Collets
Auto Parts Catcher for Sub Spindle
Servo Driven Turrets
Bar-Feed Interface
Rigid Tapping
Remote Manual Pulse Generator
(3) OD Live Holders (Eppinger)
(3) Face Live Holders (Eppinger)
(9) Boring Bar Holders
(11) Turning Holders
Misc Spindle Liners
12,384 Operating Time
5756 Cutting Time
