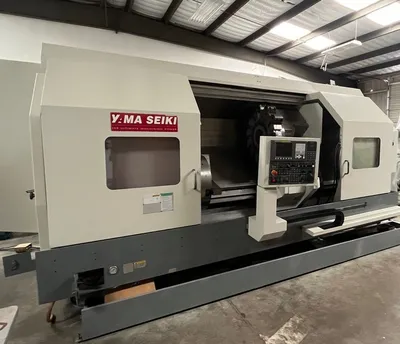

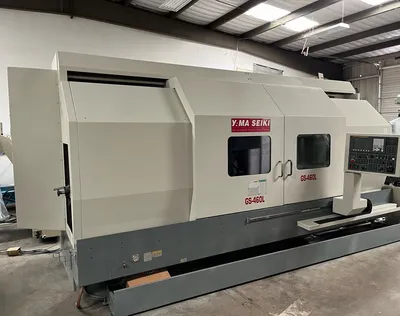

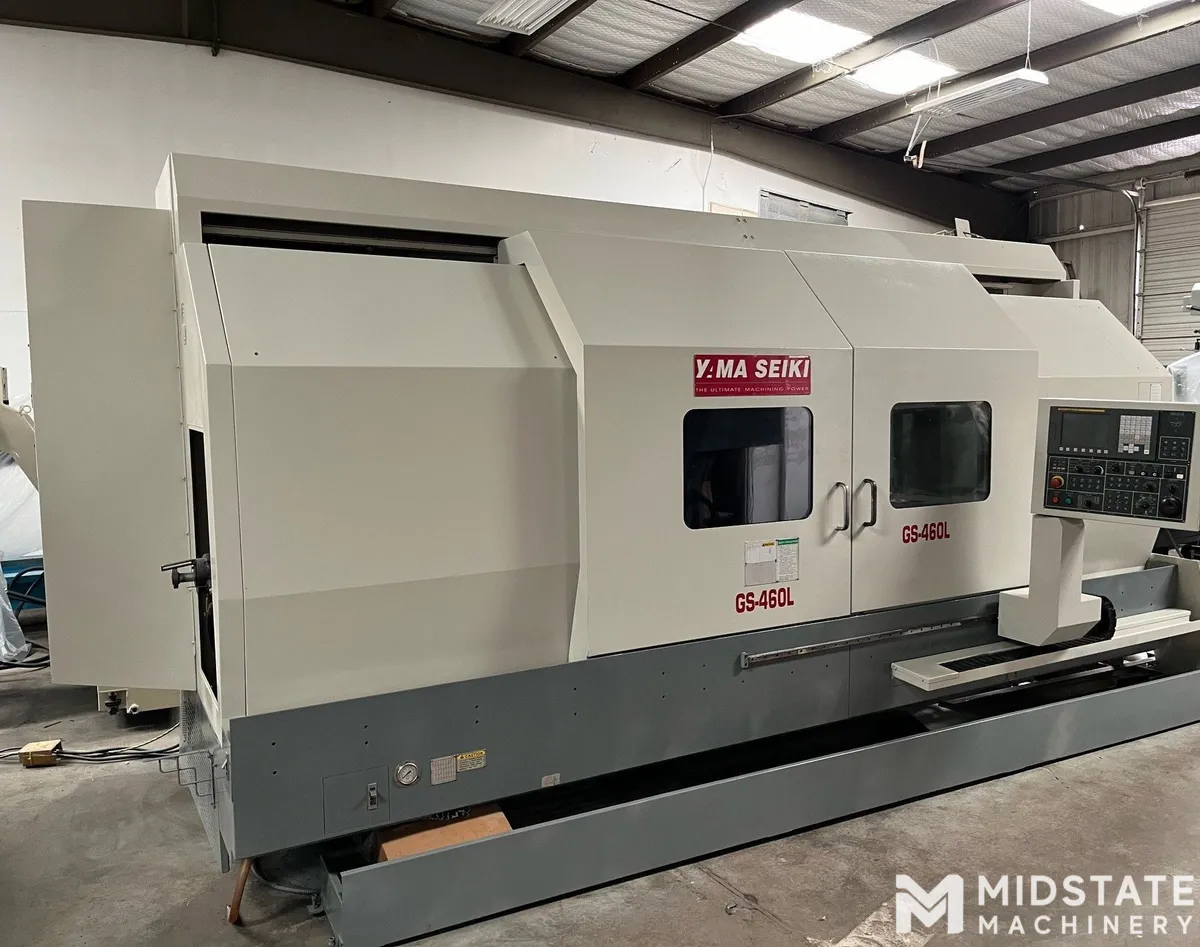

Yama Seiki GS-460L CNC Turning Center

Maximum swing 29”
Swing over saddle 28”
Maximum turning diameter 24”
Standard turning diameter 22”
Center distance 79”
Spindle bore 8”
Spindle nose A-2-15

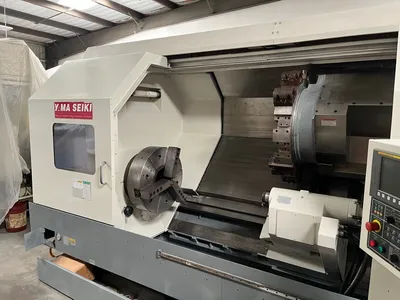

Chuck SMW Autoblok 24” 3-jaw hydraulic, 10” bore
Main motor 50/60 hp.
Spindle speeds 6-671/1300 rpm, 2 speed gearbox
Travels, X-Z 13” x 80”

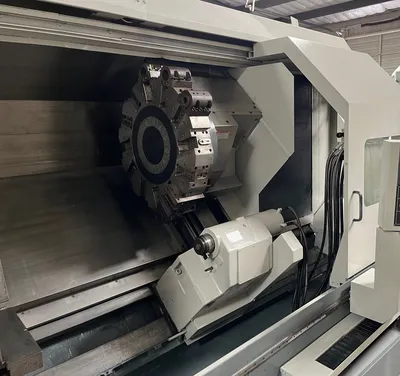

Turret stations 12 stations
Tailstock Yes, live quill, 6” travel
Programmable quill/body Yes, Yes
Positioning accuracy +/- 0.0002”
Repeatability accuracy +/- 0.0001”
Voltage 220/3/60
Power requirement 60 kVA
Coolant Yes, 168 gallons
Weight 33,000 lbs.
Machine dimensions 17’ 6” W x 8’ 6” L x 8’ 6” H
Chip pan dimensions 17’ 6” W x 8’ 6” L
Chip conveyor dimensions 15' x 2’ 4” W x 6’ H

Note: Price new in 2007 when purchased was $ 259,000 + 15,000 for chuck upgrade.
