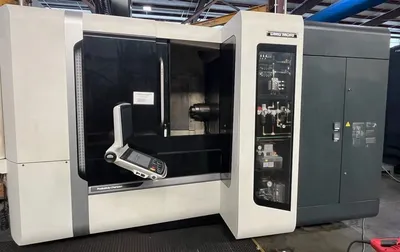

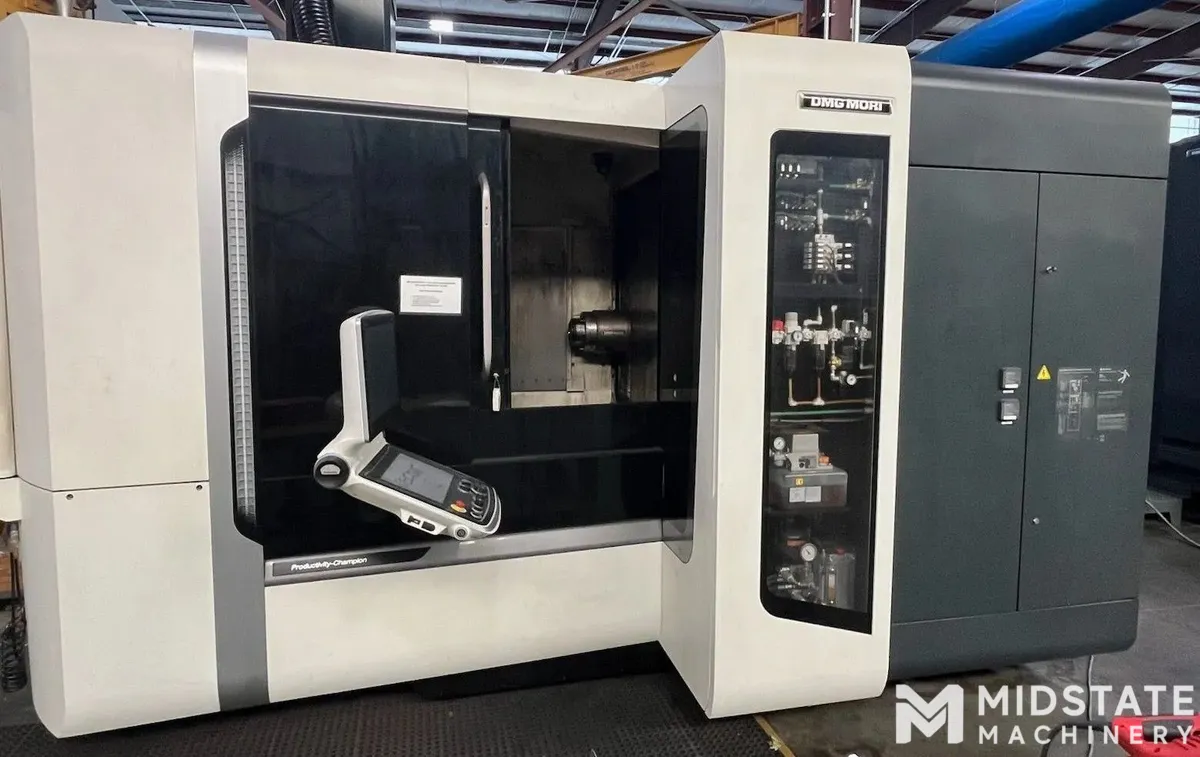

DMG MORI NHX 5000 Horizontal Machining Center, New in 2016

Specs:
X Axis Travel.........................................28.7"
Y Axis Travel.........................................28.7"
Z Axis Travel.........................................33.5"
Rapid Rate X Axis.....................................2,362 IPM
Rapid Rate Y Axis.....................................2,362 IPM
Rapid Rate Z Axis.....................................2,362 IPM
Pallet Size...........................................19.7" X 19.7"
Number Of Pallets.....................................2
Max Pallet Load.......................................1100 LBS.
Pallet Surface to Spindle Center......................3.1" To 31.9"
Pallet Center To Spindle Gage Line....................2.8" To 37.4"
Spindle Speed.........................................12,000 RPM
Spindle Taper.........................................40 CAT
Tool Changer..........................................60 ATC
Max Tool Size.........................................6.6"
Max Tool Length.......................................17.7"
Max Tool Weight.......................................18 lbs.
Tool Change Time......................................0.9 Second
Spindle Motor.........................................40 HP
Power.................................................45kva / 205-220v / 3-Phase
Dimensions............................................R-L 165" X F-B 105"
Height................................................100"
Weight................................................22,000 LBS
Air Required..........................................90 PSI, 4 SCFM
Full 4TH Axis.........................................Yes
Chip Conveyor.........................................Yes
