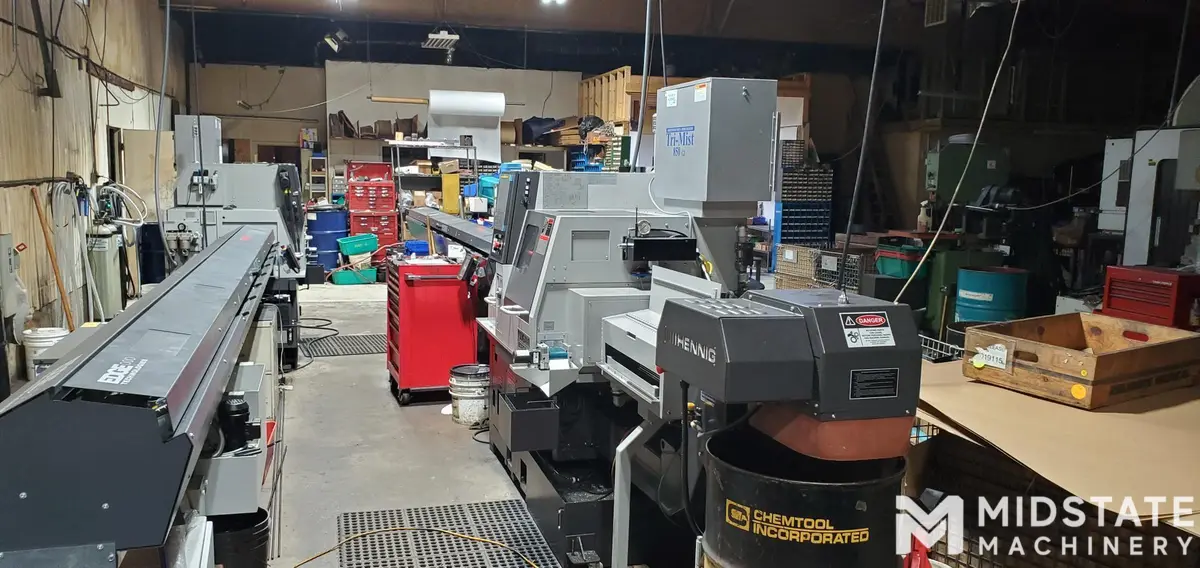

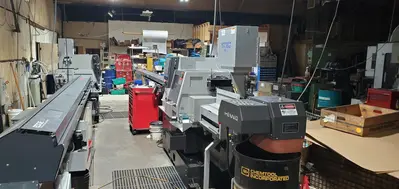

Tsugami BO206-V CNC Swiss Lathe, New in 2024
Have one to sell?
ConditionUsed
1 available
Tsugami BO206-V CNC Swiss Lathe, New in 2024
500 Run Hours
General Specifications:
Chucking Barstock Diameter: .12" - .78" (3-20mm)
Machining Length
-Direct Drive Rotary Guide Bushing: 6.79" (170mm)
-Guide-Bushless (Chucker): 1.87" (45mm)
-Stationary Guide Bushing: 8.27" (210mm)
-Carrier Type Rotary Guide Bushing: 3.15" (80mm)
Drilling Diameter: .39" (10mm)
Tapping Diameter: M10
Sub-Spindle Chucking Barstock Diameter: .78" (20mm)
Sub-Spindle Drilling Diameter: .39" (10mm)
Sub-Spindle Tapping Diameter: M10
Tool Spindle Drilling Diameter (Front/Back): .24" (6mm)
Tool Spindle Tapping Diameter (Front/Back): MS
Tool Spindle Slotting Cutter Diameter (Front): 1.2" (30mm)
Main Spindle Speed: 10,000 RPM
Sub-Spindle Speed: 12,000 RPM
Rotary Guide Bushing Speed
-Carrier Type: 8,000 RPM
-Direct-Drive Type: 12,000 RPM
Live Tool Speed (Front/Back): 10,000 RPM / 8,000 RPM
Tool Capacity: 27
Tool Size: .5" x .5"
Rapid Traverse Rates
-X2, Z2: 1417 IPM
-Y1, Z1: 1259 IPM
-X1: 944 IPM
-Y2: 590 IPM
Main Spindle Power: 7.5 HP
Sub-Spindle Power: 4.9 HP
Live Tool Power (Front/Back): 1.34 HP / 1 HP
Machine Dimensions: 68.9” x 41.5” x 66.9”
Machine Weight: 4,078 lbs
Fanuc Oi-TF Plus CNC Control

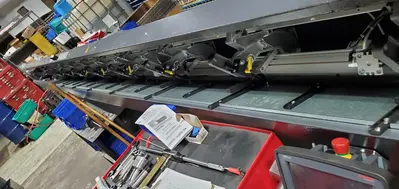

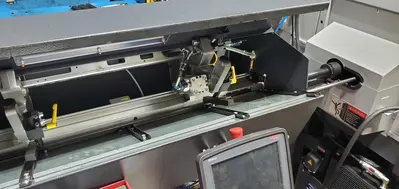

FMB Minimag 20 12' Magazine Barfeed
Tri-Mist 850 Mist Collector
Henning Pureflow Chip Conveyor
MP Systems 1,000 PSI High Pressure Coolant System
Smart Flex Guide Bushing
Parts Conveyor
Parts Catcher
500 Hours of Run Time
All Available Tooling & Manuals
Rear-Ejection Collection Kit for Sub-Spindle (Exit Tube, Guarding & Collection Box)
*Finished parts exit through the sub‑spindle and out the back of the machine instead of dropping inside the enclosure.
*Max length 15.3”, Max Tube ID .62”, Max part OD .56”
