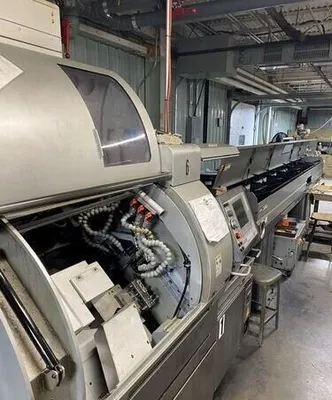

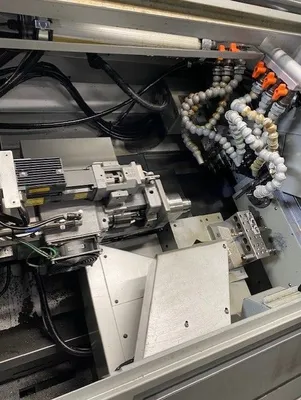

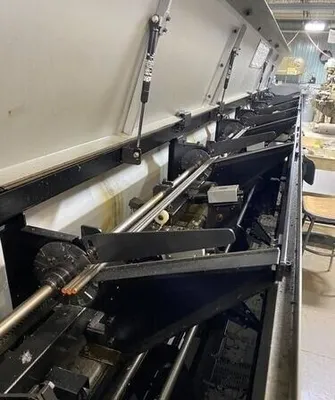

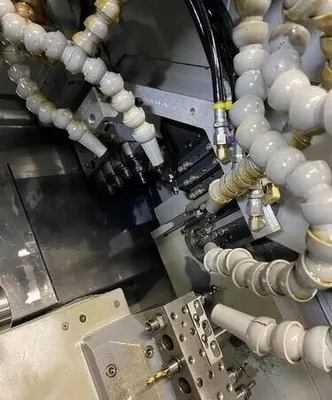

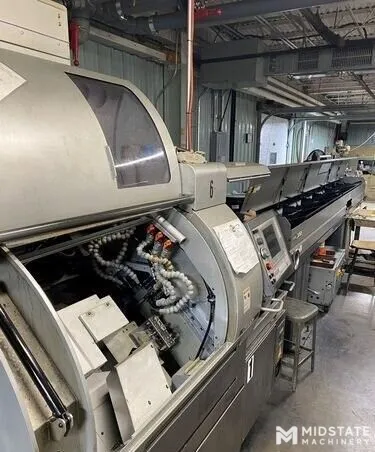

Citizen C-16VIIA CNC Swiss Lathe, New in 2007

General Specifications:
Maximum machining diameter: 5/8"
Maximum machining length: 7.87" per chucking
Main spindle speed: 10,000 RPM
Rotary tool spindle speed: 8,000 RPM
Maximum chuck diameter of the back spindle: 5/8"
Maximum workpiece length for the front side collection from the back spindle: 3.5"
Back spindle speed: 10,000 RPM

Number of tools to be mounted
Turning tools on the gang tool post: 6
Rotary tools on the gang tool post: 4
Front drilling tool: 6
Back drilling tool: 6

Tooling size
Tool (gang tool post): 3/8" x 3/8"
Sleeve: 3/4"

Chuck and guide bushing models
Main spindle collet chuck: TF20
Back spindle collet chuck: TF20
Rotary tool chuck: ER11/AR11
Sleeve chuck: ER11/AR11,ER16/AR16
Guide bushing: 0201
Rapid feed rate (all axes): 787 IPM

Motors
For main spindle drive: 2hp/ 3hp
For the tool spindle: 1hp
For back spindle drive: .5hp/ 1hp
For coolant: .3hp
Center height: 41.3"
Input power capacity: 6KVA

Machine Dimensions: 88" x 38" x 67"
Machine Weight: 3,630 lbs
