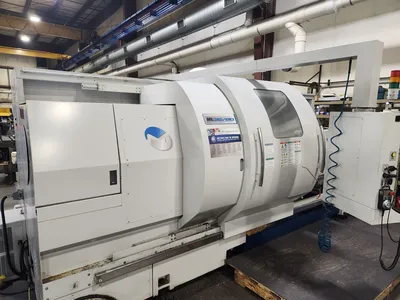

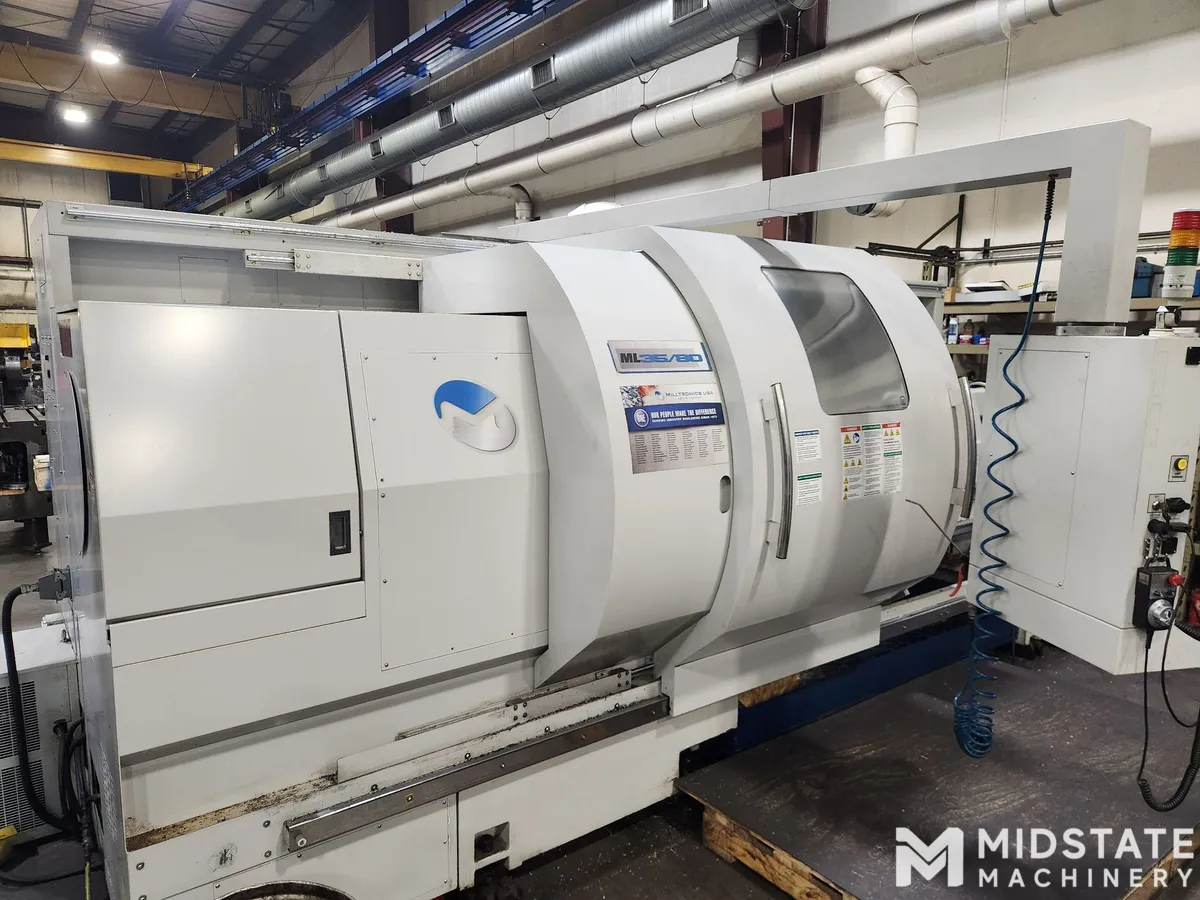

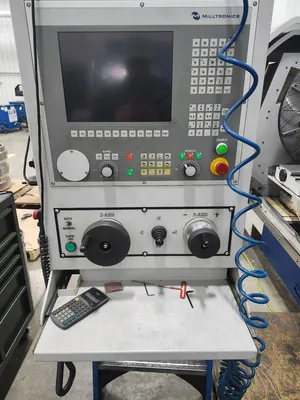

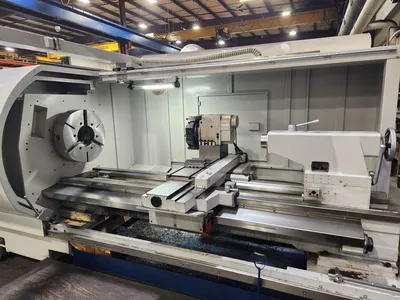

2015 Milltronics ML35/80 Combination Lathe

SPECIFICATIONS

CAPACITY:

X axis travel 19" (480 mm)

Z axis travel 87" (2210 mm)

Swing over bed (diam) 36.2" (920 mm)

Swing over gap (diam) 45" (1150 mm)

Swing over cross slide (diam) 21.6" (550 mm)

Gap distance 14.6" (370 mm)

SPINDLE:

Spindle bore (STD) 6.02" (153 mm)

Spindle nose (STD) A2-11

Spindle range (STD) 10-900 RPM

AC spindle motor 35/25 HP (26/18 kW) WYE Delta

Spindle torque 1850 ft-lbs (2500 N.m)

TAILSTOCK:

Tailstock quill travel 8" (200 mm)

Tailstock quill diameter 4.92" (125 mm)

Tailstock quill taper MT6

AUTOMATIC TURRET:

Number of tools 8

Tooling size 1.5" (38 mm)

Boring bar capacity 2" (50 mm)

Tool selection Bi-directional

MOTION:

X, Z axis rapid traverse rate 500 IPM (12.7 m/min)

Max. cutting feed rate 100 IPM (2540 mm/min)

X axis ball screw diameter 1.57" (40 mm)

Z axis ball screw diameter 2.48" (63 mm)

Positioning accuracy* +/- 0.00025" (+/- 0.0063 mm)

Repeatability* 0.00039" (0.010mm)

Axis thrust force X,Z 6700 lbs. (3000 kg)

GENERAL:

Machine Height 90" (2286 mm)

Floor Space Required (W x D) 193" x110" (4902 x 2794 mm)

Machine Weight 23,000 lbs. (10,500 kg)

Power required 40 KVA / 100 amps

Voltage required 208-240 Volts / 3 Phase
