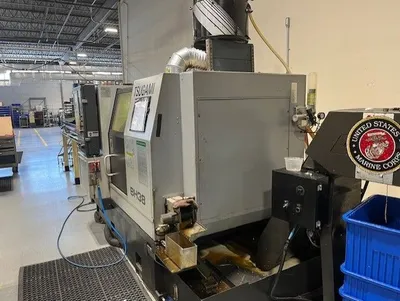

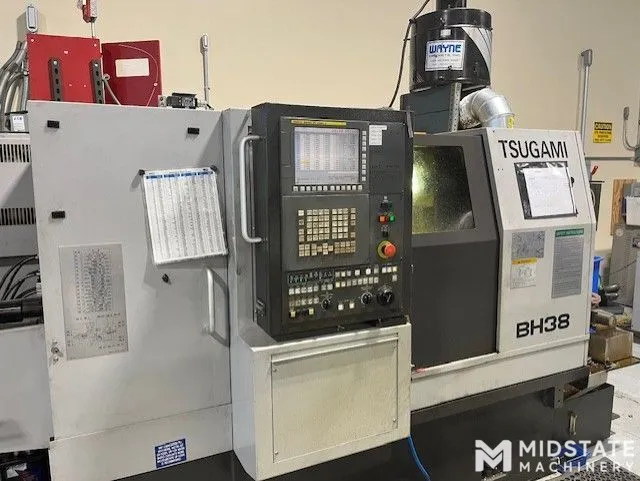

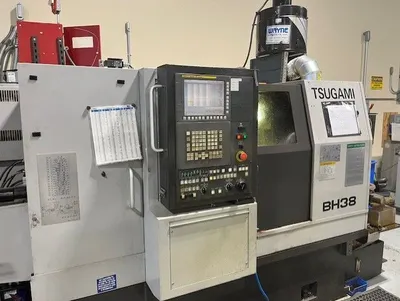

Tsugami BH38 CNC Swiss Lathe, New in 2010

General Specifications:
Barstock Diameter: 1.5"
Machining Length: 9.84"
Drilling Diameter: 0.62"
Tapping Size: M14

Sub-Spindle
Barstock Diameter: 1.5"
Drilling Diameter: 0.62"
Tapping Size: M12

Front Tool Post
-Cross Drilling Diameter: 0.39"
-Cross Tapping Size: M6

Turret:
-Rotary Tool Drilling Diameter: 0.62"
-Rotary Tool Tapping Size: M10

Main Spindle Speed: 5,000 RPM
Sub-Spindle Speed: 7,000 RPM
Cross Drill Speed on Front Tool Post: 5,000 RPM (Optional)
Rotary Tool Speed on Turret: 8,000 RPM
Main/Sub Spindle Indexing: 5 Degree / C-Axis (Optional)

Tool Storage Capacity
Turret: 12
Front Tool Post (Turning / Cross Drill): 5 / 2 (Optional)
Back Tool Post: 3

Tool Size:
-Turret: 0.78" x 0.78" x 4.92" (20 x 20 x 125 mm)
-Front Tool Post: 0.62" x 0.62" x 4.92" (16 x 16 x 125 mm)

Rapid Traverse Rates
Y3: 472 IPM
X1, Y1, X2, X3: 787 IPM
Z1, Z2, Z3: 944 IPM

Motors
-Main Spindle: 14 HP
-Sub-Spindle: 7.3 HP
-Cross Drill on Front Tool Post: 1.3 HP
-Rotary Tool on Turret: 1.8 HP

Machine Dimensions: 107" x 70" x 67"
Machine Weight: 12,786 lbs
