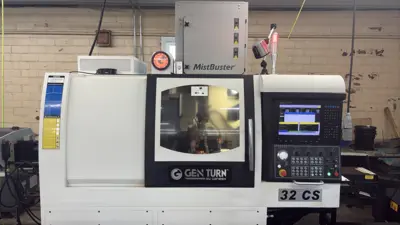

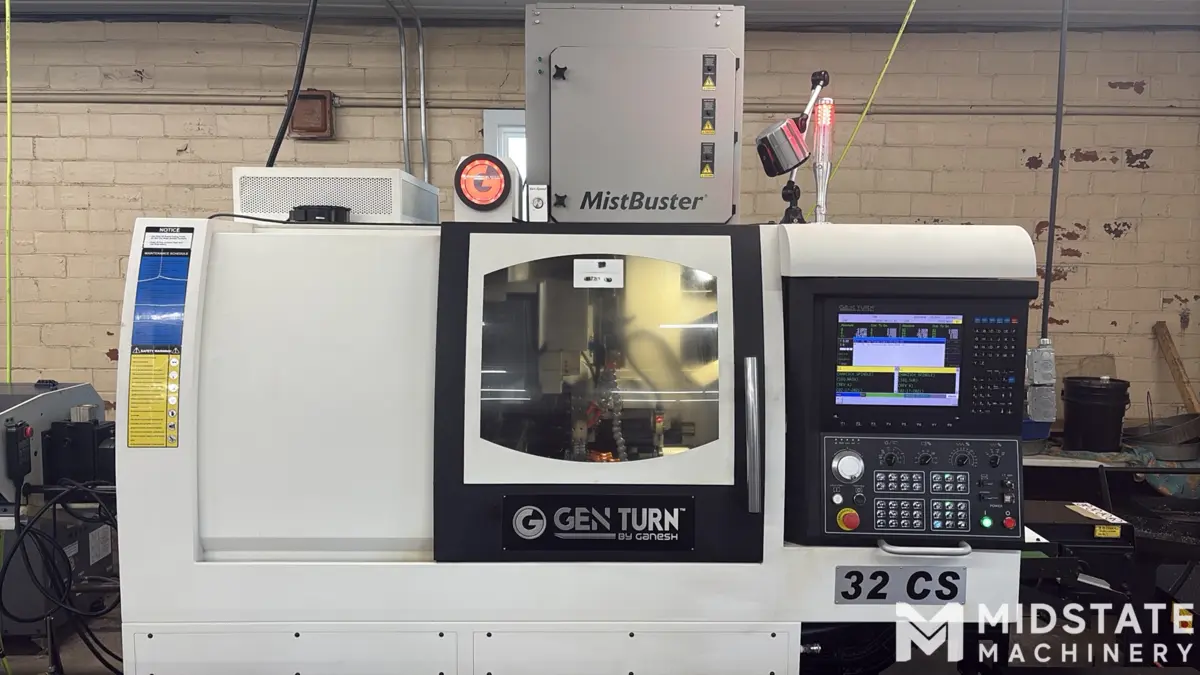

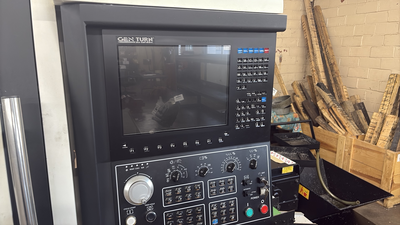

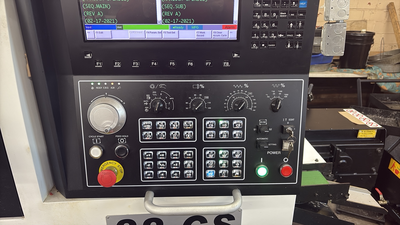

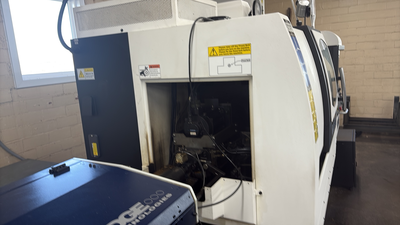

Ganesh (Expand) GenTurn 32CS CNC Swiss Lathe, New in 2020

General Specifications:

Main Spindle
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Collet Nose: Brown & Sharpe #22 or Traub A-32
Drawtube Bore: 1.456"
Barstock Diameter: 1.25"
X-Axis Travel: 7.28"
Y-Axis Travel: 19.29"
Z-Axis Travel: 6.50"
Rapid Feedrates (X, Y, Z): 1,181 IPM
Minimum Input Unit: 40 Millionths (0.00004")
OD Turning Tool Positions: 6 OD Tools (1/2")
ID Turning Tool Positions: 5 ID Tools
ID Turning Bore Size: 1"
Spindle Center Height: 40"

Sub-Spindle
Spindle Speed: 6,000 RPM
Sub-Spindle Motor: 5 HP
Collet Nose: Brown & Sharpe #22 or Traub A-32
Barstock Diameter: 1.250" in Collet Chuck
X-Axis Travel: 11.53"
Z-Axis Travel: 11.61"
Minimum Input Unit: 0.0001"
ID Turning Tool Bore Size: 1"

Live Tooling
Cross Slide Live Tools: 4-ER-20 / 4,000 RPM
Front Slide Live Tools: 3-ER-20 / 4,000 RPM
Live Tool Collet Size: ER-20 / 1/2"
Live Tool Speed: 4,000 RPM

Machine Dimensions: 101" x 68" x 80"
Machine Weight: 8,000 lbs
