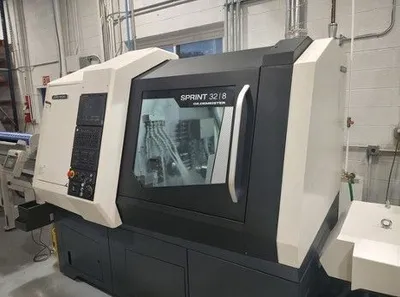

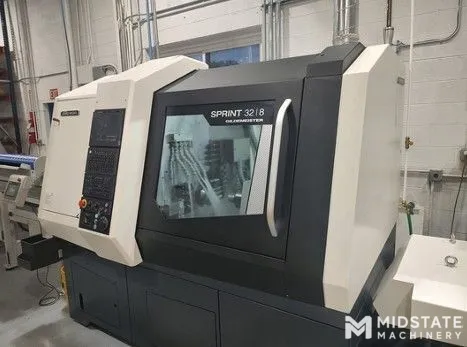

DMG Mori Sprint 32/8 CNC Swiss Lathe, New in 2024

General Specifications:
Number of Linear Axes: 6+2 (C-1/2)

Main Spindle
Bar Capacity: 1.26"
Spindle Speed: 8,500 RPM
Spindle Motor (S2 30min / S1): 10/7.4 HP
Spindle Torque (S2 30min / S1): 38.3/29.8 ft lbs

Sub-Spindle
Bar Capacity: 1.26"
C-Axis: 0.001 Degree
Spindle Speed: 8,500 RPM
Spindle Motor (S2 30min / S1): 5.0/3.0 HP
Spindle Torque (S2 30min / S1): 17.4/10.3 ft lbs

Travels
Z1 Travel: 3.94"
X1 / Y1 Travel: 2.76"
X2 / Z2 Travel: 11.81"
Y2 Travel: 5.31"
Rapid Traverse (X1, Z1, X2, Z2 / Y1, Y2): 131 / 98 IPM

Slide 1 Toolholder
Fixed Tool Positions: 6
Tools for Front/Back Working: 4/4
Live Tools: 2+2
Live Tool Speed: 6,000 RPM
Live Tool Motor (S3 40% / S1): 2.5 / 1.3 HP
Live Tool Torque: (S3 40% / S1): 3.9/3.3 ft lbs

Slide Y2 Toolholder
Fixed/Driven Tools for Backworking: 4/4
Speed: 6,000 RPM
Motor Power (S3 40% / S1): 2.5/1.3 HP
Torque (S3 40% / S1): 2.6/2.2 ft lbs

Slide 2 Toolholder
Fixed/Driven Tools for Backworking: 2/0
Speed: 4,250 RPM
Motor Power (S3 40% / S1): 2.5/1.3 HP
Torque (S3 40% / S1): 2.6/2.2 ft lbs

Machine Dimensions: 60" x 72" x 83"
Machine Weight: 7,826 lbs
