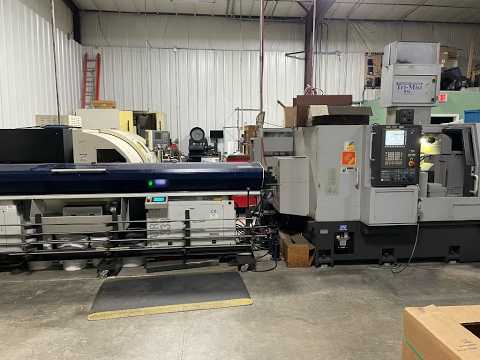

Tsugami B038T CNC Swiss Lathe, New in 2014
Have one to sell?
ConditionUsed
1 available
Tsugami B038T CNC Swiss Lathe, New in 2014
Clean & Low Hours!
General Specifications:

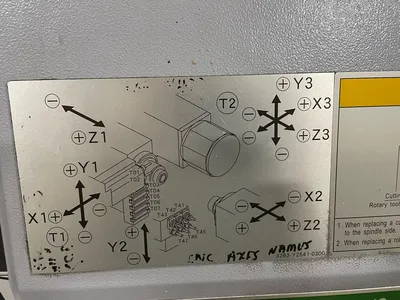

Axes: X1, Y1, Z1, X2, Y2, Z2, X3, Y3, Z3
Main Spindle: 15 HP
Sub Spindle: 7.5 HP
Live Tool (Turret: 1.87 HP
Tool Spindle on back tool post: 1.34 HP
Cross drill on front tool post: 1.34 HP
Powerful Sub Spindle: 7,000 RPM
Sub spindle max. machining diameter: 1.5"
Max. Sub spindle drilling diameter: 0.55"
Max. Sub spindle tapping size: M12
8 Station 3 axis turret (Live Capable)
Live tool spindle speed on Turret: 7,000 RPM
Live tool turret drilling diameter: 16mm
Live tool turret tapping size: M10
1.5" max. machining diameter
Max. headstock stroke: 9.84"
Main spindle speed: 5,000 RPM
Max. main spindle drilling diameter: 0.625"
Main spindle tapping size: M14

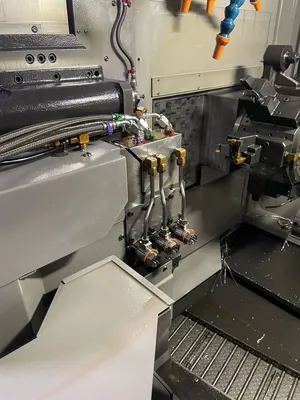

Front tool post: 5 turning, 2 Live
Front tool post cross drill speed: 5,000 RPM
Front tool post cross drilling diameter: 10mm
Front tool post cross tapping size: M6
Back tool post: 6 (3 fixed, 3 live)
Back tool post live tool speed: 6,000 RPM
Machine Dimensions: 134.9" x 73.8" x 72.4"
Machine Weight: 13,669 lbs

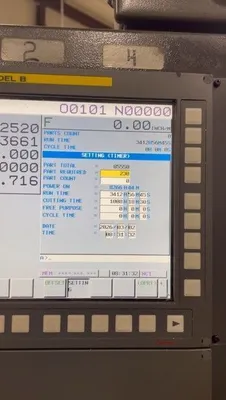

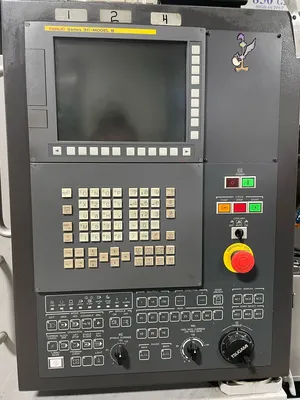

Fanuc 31i-B CNC Control

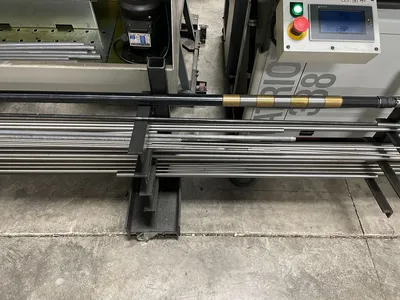

2014 Edge Patriot 338 12' Magazine Barfeed
38mm, 24mm, 12mm Channel Sets
LNS Chip Conveyor
Tri-Mist 850 Mist Collector

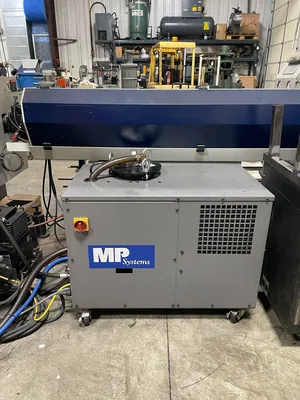

MP Systems V-2 HPC (3,000 PSI)
(3) Cool Speed 60k RPM Turbine Spindles

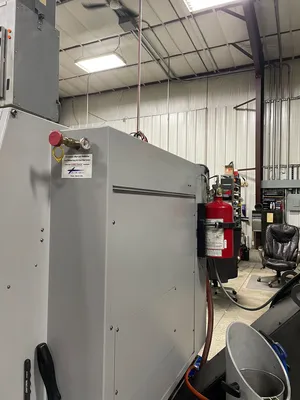

Fire Suppressions System
All Available Manuals
Tooling List
(1) 1.0 Gripper Collet
(1) .875 gripper collet
(1) .825 gripper collet
(1) .750 gripper collet
(1) .625 gripper collet
(1) .562 gripper collet
(1) .312 gripper collet
(1) .250 gripper collet
STM-38 carbide lined guide bushings
(1) .250
(1) .312
(1) .562
(1) .625
(1) .750
(2) .825
(1) .875
(1) 1.00
Sliding head collet TF-43
(1) .250
(1) .312
(1) .562
(1) .625
(1) .750
(1) .825
(1) .875
(1) 1.00
Sub Spindle collets BS-38
(1) .125
(1) .245
(1) .250
(1) .410
(1) .469
(1) 1.00
(4) custom step collets

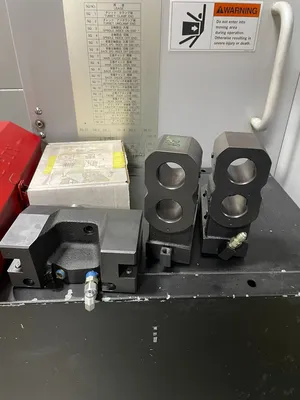

Turret tooling
(2) 1.250 diameter double drill holders
(2) 1.250 single drill holders
(2) 20MM stick tool holders 2 double 20MM stick tool holders

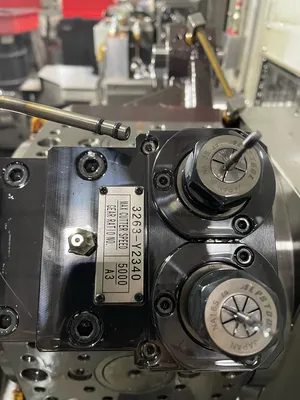

(1) Double cross live spindle ER16 collet (see photo)
