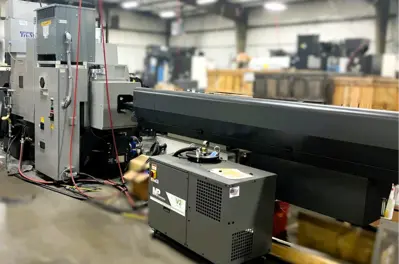

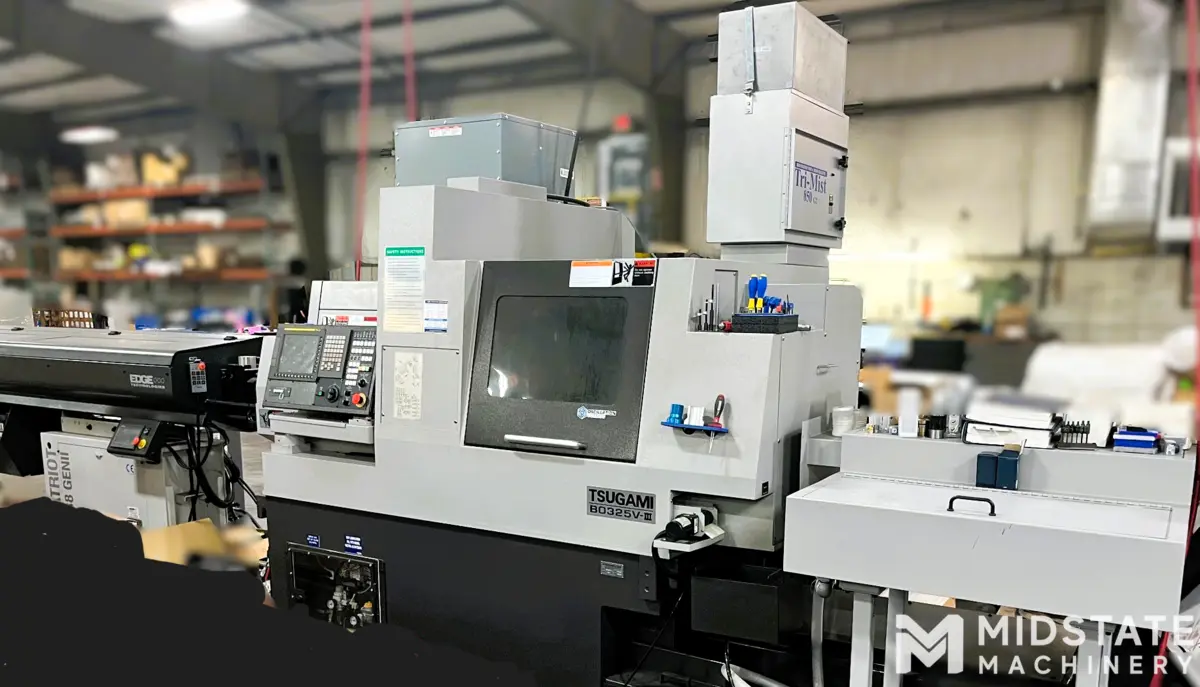

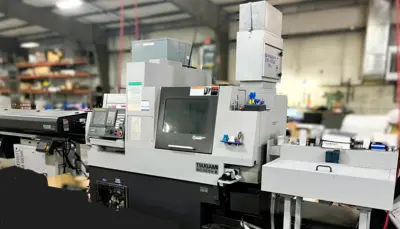

TSUGAMI BO325V-III CNC Swiss Lathe, New is 2022

General Specifications:
Number of Axes: 7 (X1,Y1,Z1,X2,Z2,C1,C2)

Chucking Bar stock Diameter: 8 - 32mm (0.31 - 1.25")
Max Machining Length: 330 mm (12.59" with Guide Bushing) 70mm (without Guide Bushing)
(w/ direct Drive Rotary GB)
Max Drilling Diameter: 12 mm (.47")
Max Tapping Diameter: M10
Max Back Spindle Chucking Diameter; 32mm (1.25")
Max Back Spindle Drilling Diameter: 10mm (.39")
Max Back Spindle Tapping Diameter: M10
Max Tool Spindle Drilling Diameter: 8mm (.31")
Max Tool Spindle Tapping Diameter: M6
Max Tool Spindle Slotting Diameter: 45mm (1.77")
Main Spindle Speed: 200 - 8000 rpm
Back Spindle Speed: 200 - 8000 rpm
Rapid Traverse Rate: 32 m/min (X1,Y1,Y2 24 m/min)

Tool Storage Capacity (std/max): 29
Stick Tool Size: 16 x 16 x 100mm

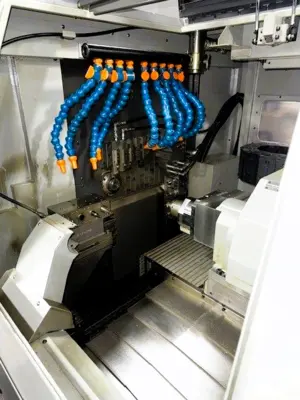

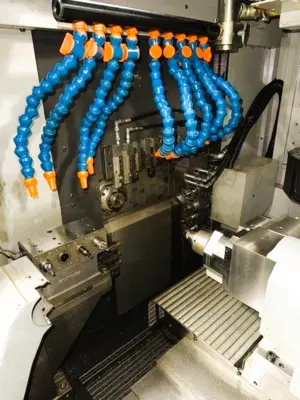

Tooling Configuration:
Live Cross Drills: 5
OD Turning Tools: 5
ID Tools (by sub spindle) 2 (op live tools)
ID/BW Tools: 8
BW Tools: 4 Fixed

Main Spindle: 3.7 / 5.5 kW
Back Spindle: 2.2 / 3.7 kW
Tool Spindle: 1.0 kW
Rotary Guide Bushing: 0.75 / 1.5 kW(direct drive GB)
X1: 0.5 kW
Y1, Z1, X2, Z2: 0.75 kW
Coolant Pump: 400 W
Lubricating Pump: 3 W

Power Requirements: 22.4 KVA
Air Requirements: 0.4 MPa or Above
Air Discharge rate: 100 NL/min
Coolant Tank Capacity: 190 L (47.5 gal)
