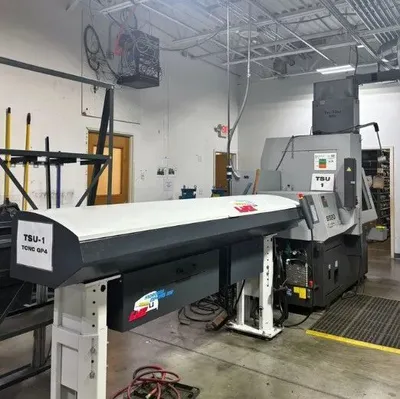

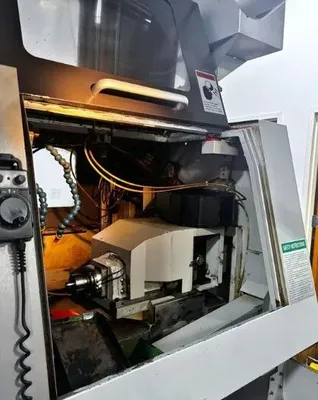

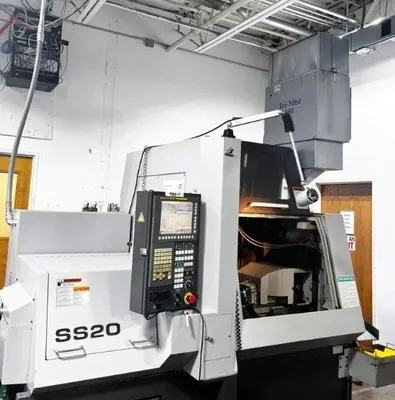

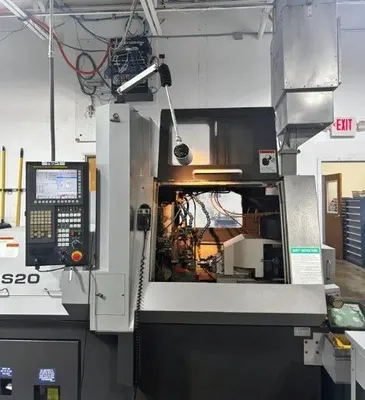

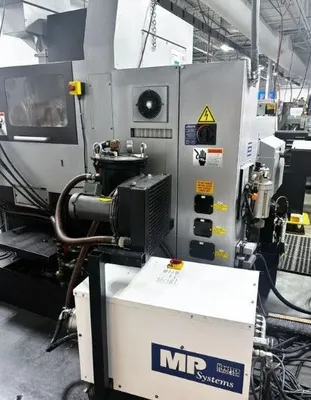

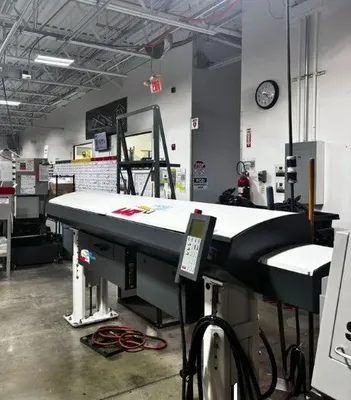

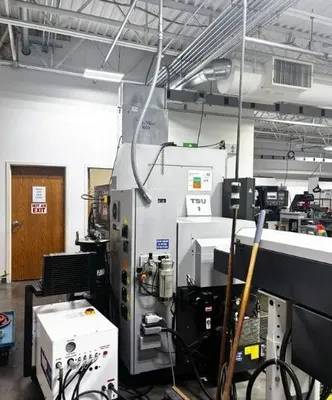

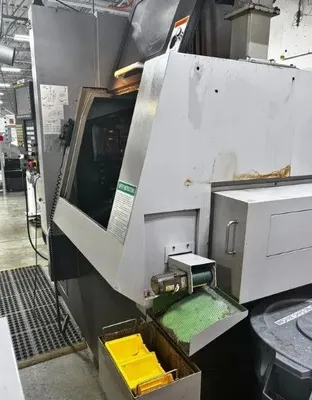

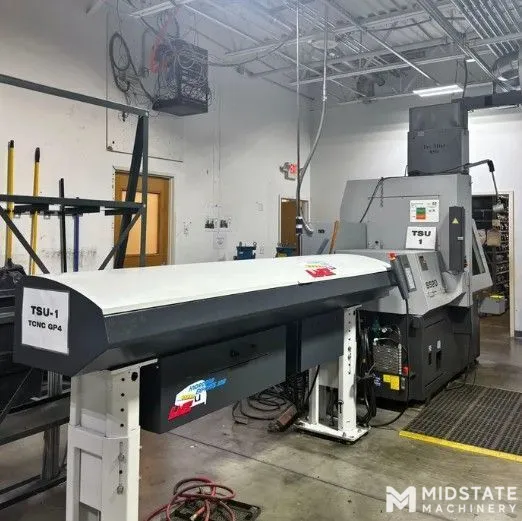

Tsugami SS20 CNC Swiss Lathe, New in 2008

General Specifications:
Bar stock Diameter: 3 - 20mm

Main Spindle:
Workpiece length: 8.6" / 220mm (Rotary Guide Bushing)
Drilling Diameter: 0.39" / 10mm
Tapping Diameter: M8

Back Spindle
Barstock Diameter: 0.75" / 20mm
Drilling Diameter: 0.31" / 8mm
Tapping Diameter: M6

Tool Spindle
Drilling Diameter: 0.31" / 8mm
Tapping Diameter: M6
Slotting Cutter Diameter: 1.77" / 45mm
Main Spindle Speed: 200 - 10,000 rpm
Back Spindle Speed: 200 - 10,000 rpm
Rotary Guide Bushing Speed: 200 - 8000 rpm
Tool Spindle Speed: 200 - 5000 rpm
Tool Size: 5/8" x 3.93"

Motors:
Main Spindle: 4.9 HP
Back Spindle: 4.9 HP
Rotary Guide Bushing: 1.5 HP

Machine Dimensions: 80" x 65" x 77"
Machine Weight: 6400 lbs
