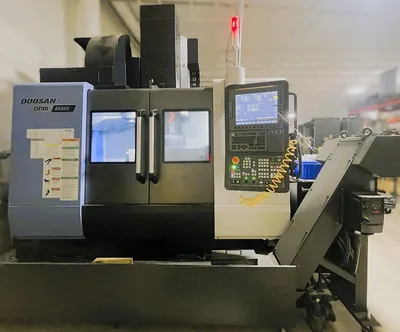

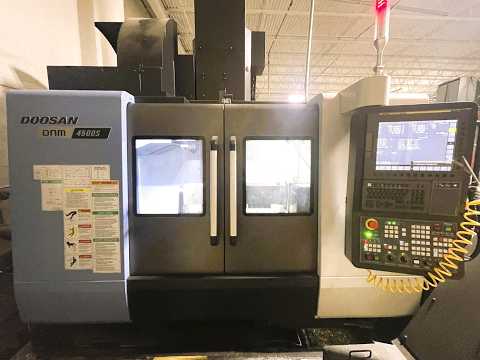

DOOSAN DNM4500S Vertical Machining Center, New in 2021
Have one to sell?
ConditionUsed
1 available
DOOSAN DNM4500S Vertical Machining Center, New in 2021.
Less than 100hrs.
Fanuc i CNC Control.
Renishaw Probing.
Tsudakoma KP Rotary.
40+1 side mount ATC.
Through Spindle Coolant.
General Specifications:
Spindle Taper:
CT40 Big Plus
Spindle Speed:
15000 rpm
AUTOMATIC TOOL CHANGER:
40+1
Travel X / Y / Z:
(31.5 / 17.7 / 20.1 in)
Spindle Nose to Table Top:
(5.9–26.0 in)
Table Size:
(39.4 × 17.7 in)
Max Table Load:
(1322.8 lb)
T-slots (table surface type):
(3) × 125 mm spacing, 18 mm T-slot (H8)
Max Spindle Power:
18.5/11 kW (24.8/14.8 hp)
Max spindle torque (Fanuc):
117.8 N·m (86.9 lbf-ft)
Rapids X/Y:
(1653.5 ipm)
Rapids Z:
(1417.3 ipm)
Less Than 100hrs

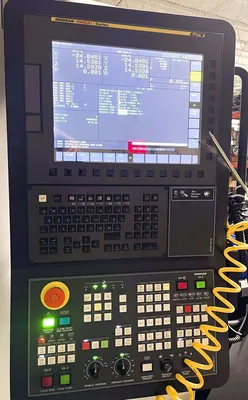

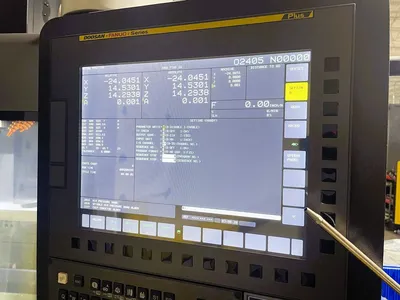

Fanuc i CNC Control
Through Spindle Coolant

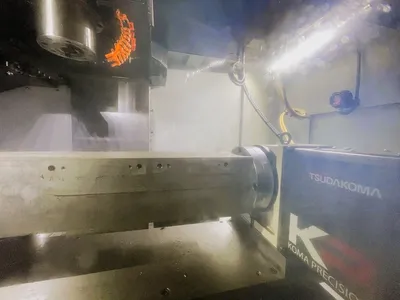

Tsudakoma KP Rotary
Renishaw Probing System
Tool Pre-Setter

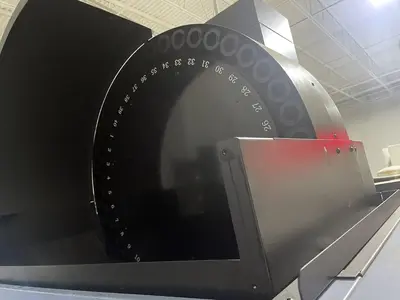

40+1 Side Mount ATC
Jog Wheel
Coolant Tank
Chip Conveyor
