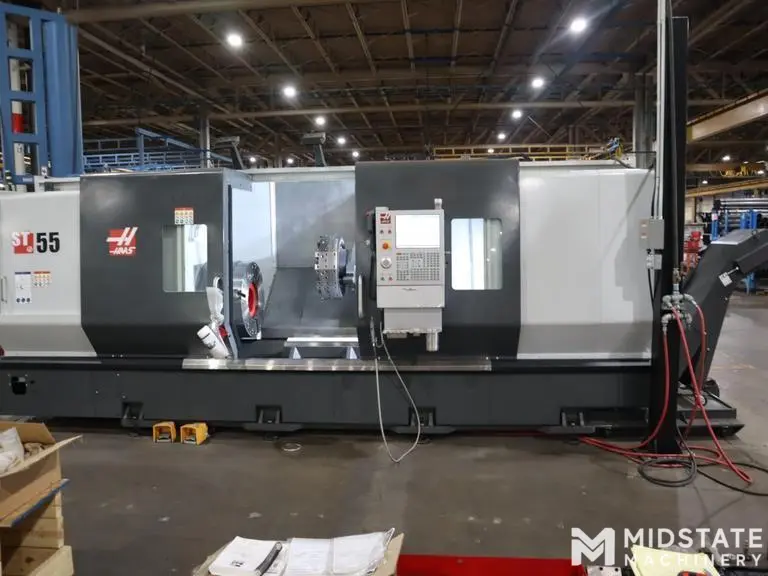

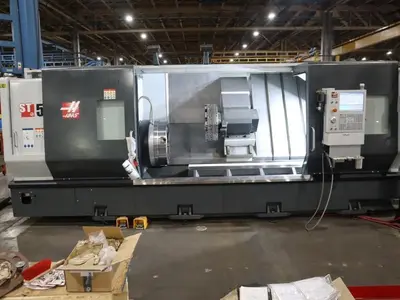

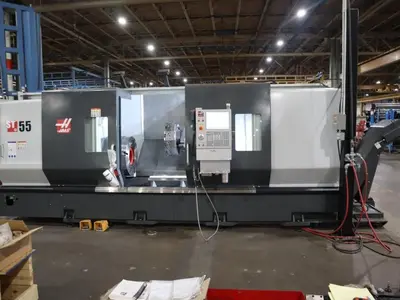

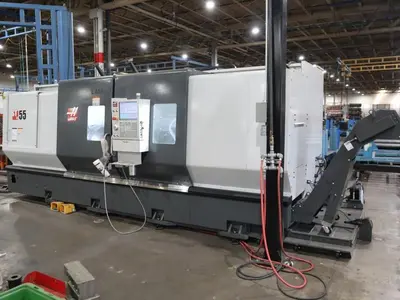

Haas ST-55 CNC Turning Center, New in 2023
Like - New, only 10 Spindle Hours
General Specifications:
Max Swing Over Bed: 34.5"
Max Swng Over Saddle: 25.5"
Max Turning Diameter: 25.5"
Max Turning Length: 80"
Max Bar Capacity: 12.5"
Hole Thru Spindle: 12.5"
Chuck Size: 26"
Spindle Nose: A1-20 Front and Rear Headstock
Spindle Speeds: 1,000 Max RPM
Number of Steps: 2-Speed Gearbox
Turret Capacity: 12 Stations
Turret Travels: (X,Z) 17.0" x 8.0"
Rapid Traverse Rate: (X/Z) 710 / 320 IPM
Tailstock Quill Diameter / Taper: #6MT
Spindle Motor: 55 HP
Electrics: 440 Volt, 3 Phase, 53 Full Load Amps

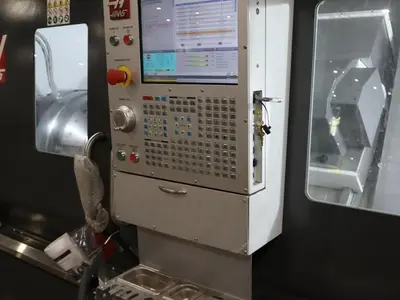

Haas Next Generation CNC Control
12 Station Automatic Tool Turret

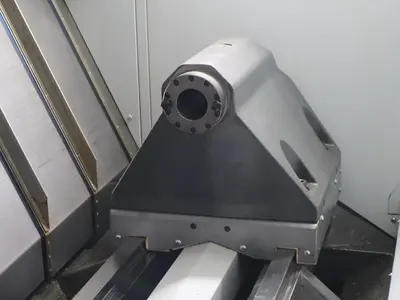

Programmable Tailstock

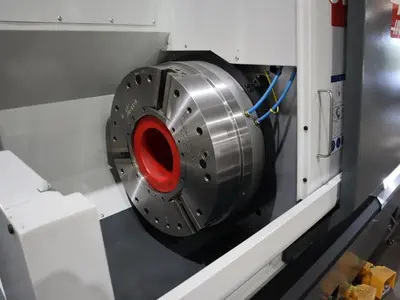

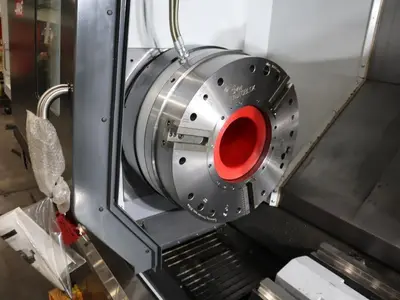

(2) SMW Big Bore (12.2" Bore) 26" Pneumatic Chucks
Hennig Chip Conveyor

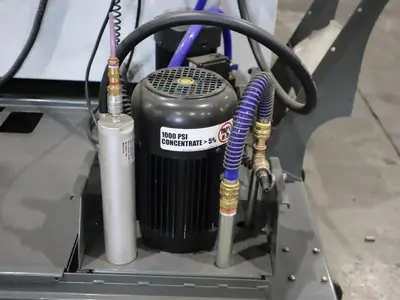

1,000 PSI Coolant System
Rigid Tapping
1GB Memory
8 Spare M Functions
Cabinet Cooler
Ethernet Interface
High-Intensity Lighting

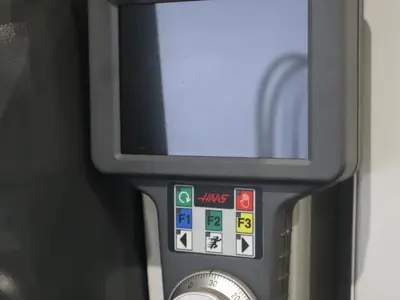

XL Remote Jog Handwheel - Touchscreen
Spindle Orientation
WIFI Connect
(2) Remote Foot Actuators
(2) 3" Bore Turret Tool Holders
(3) 2.5" Bore Turret Tool Holders
(1) Bolt-On Turning Holder
Several Turning Clamps for Turret, Chuck Jaws, Manuals

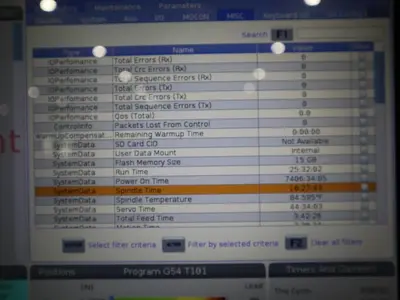

LIKE NEW ONLY 10 SPINDLE HOURS!
