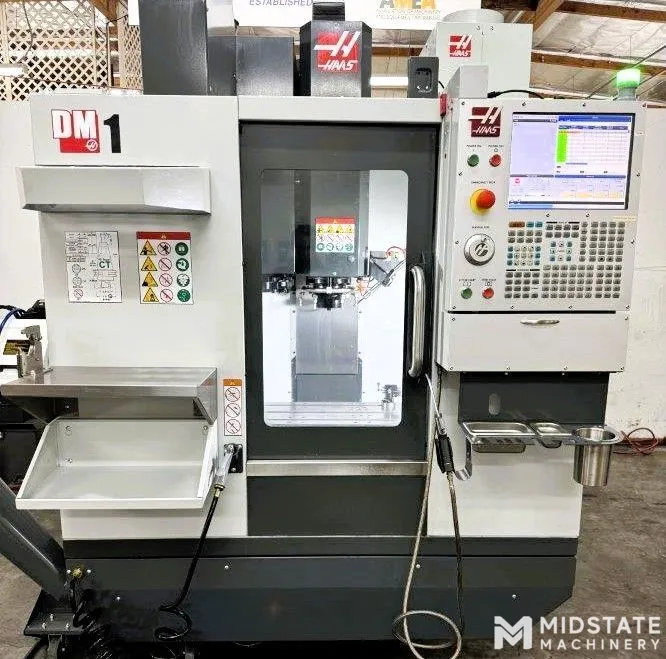

HAAS DM-1 Vertical Machining Center, New in 2019
Have one to sell?
ConditionUsed
1 available

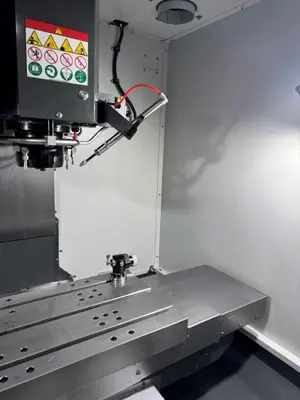

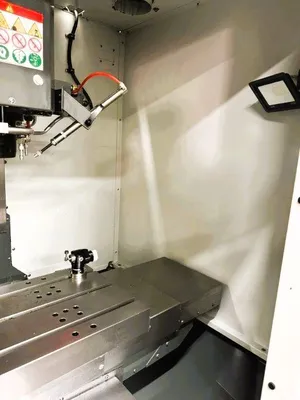

HAAS DM-1 Vertical Machining Center, New in 2019.
40 Taper Spindle.

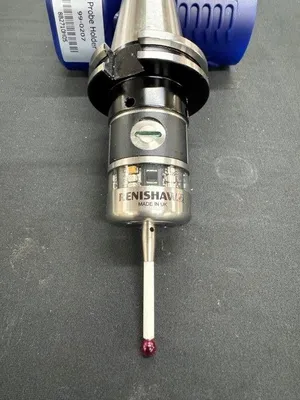

WIPS- Renishaw part probe and tool probe package.
15k RPM Spindle Upgrade, Inline Direct Drive.
Chip Auger.
General Specifications:
· X-AXIS TRAVEL 20”
· Y-AXIS TRAVEL 16”
· Z-AXIS TRAVEL 15.5”

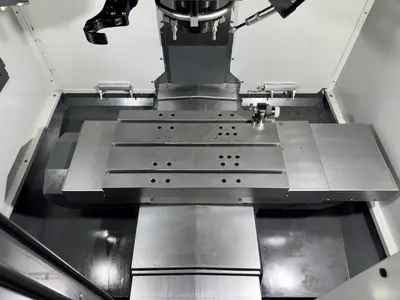

· TABLE 26” x 15”
· TABLE LOAD 500 LBS
· SPINDLE NOSE to TABLE TOP 6” – 21.5”
· SPINDLE TAPER CAT #40
· SPINDLE SPEED – INLINE DIRECT DRIVE 15,000 RPM
· TAPPING SPEED 5,000 RPM
· SPINDLE MOTOR 15 HP

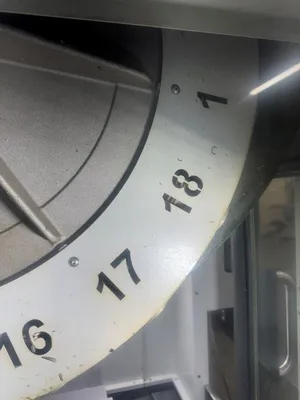

· NUMBER OF TOOL POSITIONS 18
· TOOL CHANGE Time T-T, C-C 1.75 sec / 2 sec
· RAPID TRAVERSE RATES (X,Y,Z) 2400 IPM
· MAX CUTTING FEED RATE 1200 IPM
· POWER 208-240V / 3 ph.
· Weight: 5150 LBS.

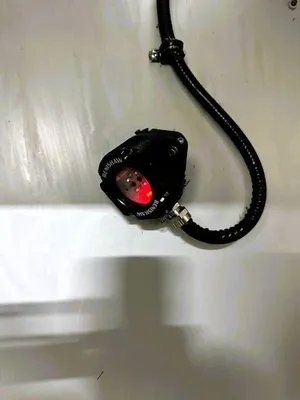

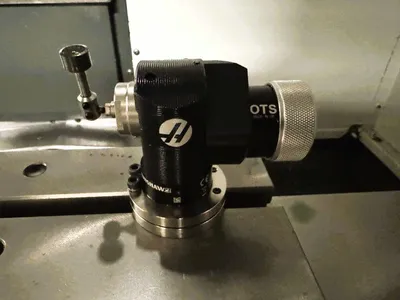

· WIPS ~ Renishaw part probe and tool probe package
· 15K RPM Spindle Upgrade, Inline Direct Drive
· CHIP AUGER

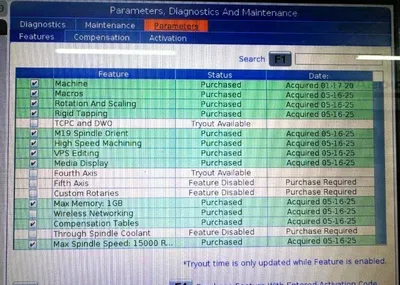

· 15” COLOR LCD MONITOR / 1GB MEMORY STD.
· HIGH SPEED MACHINING
· ENCLOSURE EXHAUSE SYSTEM
· M19 SPINDLE ORIENTATION
· USER MACROS
· COORDINATE ROTATION & SCALING
· VPS (Visual Part Programing System) EDITING
· MEDIA DISPLAY, MAX MEMORY 1GB, WIRELESS NETWORKING… Std.
· COMPENSATION TABLES

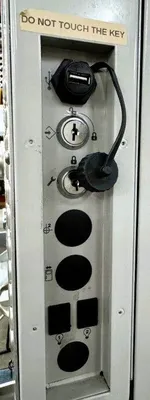

· USB DRIVE / RS-232 PORT

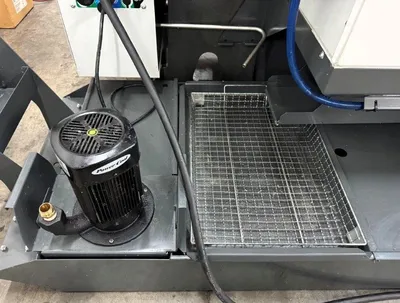

· COOLANT TANK / COOLANT PUMP KIT – ¾ HP
· RIGID TAPPING / WORK LIGHT
· TOOL RACK / MANUALS
· Hours: Power on: 9474 / Feed Cutting: 1088 / Cycle Start: 1604
